Nanlite PavoSlim 240CL 4x1 RGBWW LED Panel with included softbox & eggcrate, LumenRadio
SKU: PS240CL
$1,390.00 USD
Shipping calculated at checkout.
PAY WITH
Couldn't load pickup availability
Key Features
- 240 W RGBWW panel (2700–7500 K + G/M ±150), full 0–100% dimming
- ~21 030 lux @ 1 m at 5600 K (bare panel, 60° beam)
- High color precision: CRI 96 / TLCI 97; TM‑30 Rf ≈94, Rg ≈100; SSI ~84@3200 K, ~74@5600 K
- Ultra‑slim 0.92″ (2.35 cm) aluminum body, weighs ~7.98 lb (3.62 kg)
- Integrated pop‑up softbox, lite & standard diffusers, eggcrate grid included
- Built-in LumenRadio CRMX, DMX/RDM, Bluetooth (Nanlink) & 2.4 GHz RF support
- Power via AC/DC or dual V‑Mount batteries (dual‑battery plate built‑in)
- Pop-up ready from padded kit case; silent passive cooling; limited 2‑yr warranty
- Gallery
- What's in the Box
- Content
- Shipping
- Returns
- Warranty
The Nanlite PavoSlim 240CL RGB LED Panel with Pop-Up Softbox is designed to deliver professional lighting performance in an ultra-slim, space-saving form factor. Featuring a unique 48 x 12" elongated design, this full-color RGBWW fixture is ideal for installations close to ceilings, tight production spaces, and applications where traditional panels may be too bulky. Despite its lightweight construction, the 240CL provides powerful output, exceptional color accuracy, and flexible control options for film, television, photography, and content creation.
Equipped with a 240W RGBWW light engine, the fixture offers a broad 2700K to 7500K color temperature range, full HSI color control, ±150 green-to-magenta adjustment, 151 gel presets, and 15 built-in lighting effects. Designed for fast deployment, the included pop-up softbox allows creators, DPs, and gaffers to set up and break down quickly, while the included padded carry case makes transport simple and convenient.
The included pop-up softbox is engineered to dramatically reduce setup time, allowing you to move from transport to shooting in seconds. Nanlite also includes an egg crate along with 1.5-stop and 2.5-stop diffusers for additional light shaping and output control.
With a profile measuring just 0.9" thick, the PavoSlim 240CL easily fits into confined spaces while delivering impressive performance. The fixture offers flicker-free illumination up to 21,030 lux at 3.3' (5600K), making it suitable for professional studio, film, and television productions. A variable color temperature range of 2700K to 7500K and smooth 0-100% dimming allow seamless integration with existing lighting setups.
The PavoSlim 240CL delivers highly accurate color reproduction with impressive performance ratings, including:
These specifications help ensure natural skin tones and consistent color quality across a variety of shooting environments.
Fifteen integrated lighting effects are available for creating dynamic lighting scenarios, including:

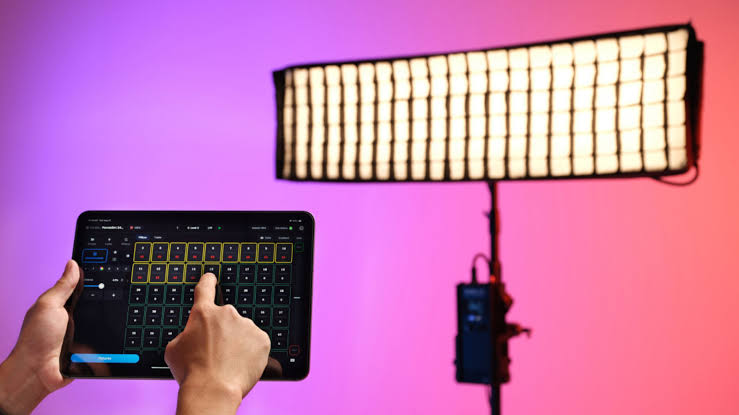

The PavoSlim 240CL supports a wide range of professional control methods. Built-in LumenRadio CRMX enables wireless DMX operation, while onboard controls and the Nanlink Bluetooth app provide intuitive fixture management. Additional wireless control is available through the optional WS-TB-1 transmitter box or WS-RC-C2 remote. For larger productions, full DMX/RDM compatibility is also supported.
Designed for both studio and location use, the fixture supports worldwide operation through its dual-voltage power supply. The included control unit features battery plates for two optional 14.4-14.8V or 26V V-mount batteries, with two batteries required to achieve full output performance.
To accommodate a variety of rigging scenarios, the PavoSlim 240CL includes a swivel holder, baby pin mount, and quick-release control unit clamp. Multiple rear 4-pin locking plates allow secure mounting of accessories, while compatibility with the optional Nanlite magnetic base provides even greater flexibility.
For larger lighting setups, the optional multi-panel coupler kit allows multiple PavoSlim 240CL panels to be joined together. Users can combine two or four fixtures to create larger 2 x 4 or 4 x 4 lighting arrays while maintaining compatibility with light-shaping accessories.
The Nanlite PavoSlim 240CL RGB LED Panel with Pop-Up Softbox is designed to deliver professional lighting performance in an ultra-slim, space-saving form factor. Featuring a unique 48 x 12" elongated design, this full-color RGBWW fixture is ideal for installations close to ceilings, tight production spaces, and applications where traditional panels may be too bulky. Despite its lightweight construction, the 240CL provides powerful output, exceptional color accuracy, and flexible control options for film, television, photography, and content creation.
Equipped with a 240W RGBWW light engine, the fixture offers a broad 2700K to 7500K color temperature range, full HSI color control, ±150 green-to-magenta adjustment, 151 gel presets, and 15 built-in lighting effects. Designed for fast deployment, the included pop-up softbox allows creators, DPs, and gaffers to set up and break down quickly, while the included padded carry case makes transport simple and convenient.
The included pop-up softbox is engineered to dramatically reduce setup time, allowing you to move from transport to shooting in seconds. Nanlite also includes an egg crate along with 1.5-stop and 2.5-stop diffusers for additional light shaping and output control.
With a profile measuring just 0.9" thick, the PavoSlim 240CL easily fits into confined spaces while delivering impressive performance. The fixture offers flicker-free illumination up to 21,030 lux at 3.3' (5600K), making it suitable for professional studio, film, and television productions. A variable color temperature range of 2700K to 7500K and smooth 0-100% dimming allow seamless integration with existing lighting setups.
The PavoSlim 240CL delivers highly accurate color reproduction with impressive performance ratings, including:
These specifications help ensure natural skin tones and consistent color quality across a variety of shooting environments.
Fifteen integrated lighting effects are available for creating dynamic lighting scenarios, including:
The PavoSlim 240CL supports a wide range of professional control methods. Built-in LumenRadio CRMX enables wireless DMX operation, while onboard controls and the Nanlink Bluetooth app provide intuitive fixture management. Additional wireless control is available through the optional WS-TB-1 transmitter box or WS-RC-C2 remote. For larger productions, full DMX/RDM compatibility is also supported.
Designed for both studio and location use, the fixture supports worldwide operation through its dual-voltage power supply. The included control unit features battery plates for two optional 14.4-14.8V or 26V V-mount batteries, with two batteries required to achieve full output performance.
To accommodate a variety of rigging scenarios, the PavoSlim 240CL includes a swivel holder, baby pin mount, and quick-release control unit clamp. Multiple rear 4-pin locking plates allow secure mounting of accessories, while compatibility with the optional Nanlite magnetic base provides even greater flexibility.
For larger lighting setups, the optional multi-panel coupler kit allows multiple PavoSlim 240CL panels to be joined together. Users can combine two or four fixtures to create larger 2 x 4 or 4 x 4 lighting arrays while maintaining compatibility with light-shaping accessories.
The Nanlite PavoSlim 240CL RGB LED Panel with Pop-Up Softbox is designed to deliver professional lighting performance in an ultra-slim, space-saving form factor. Featuring a unique 48 x 12" elongated design, this full-color RGBWW fixture is ideal for installations close to ceilings, tight production spaces, and applications where traditional panels may be too bulky. Despite its lightweight construction, the 240CL provides powerful output, exceptional color accuracy, and flexible control options for film, television, photography, and content creation.
Equipped with a 240W RGBWW light engine, the fixture offers a broad 2700K to 7500K color temperature range, full HSI color control, ±150 green-to-magenta adjustment, 151 gel presets, and 15 built-in lighting effects. Designed for fast deployment, the included pop-up softbox allows creators, DPs, and gaffers to set up and break down quickly, while the included padded carry case makes transport simple and convenient.
The included pop-up softbox is engineered to dramatically reduce setup time, allowing you to move from transport to shooting in seconds. Nanlite also includes an egg crate along with 1.5-stop and 2.5-stop diffusers for additional light shaping and output control.
With a profile measuring just 0.9" thick, the PavoSlim 240CL easily fits into confined spaces while delivering impressive performance. The fixture offers flicker-free illumination up to 21,030 lux at 3.3' (5600K), making it suitable for professional studio, film, and television productions. A variable color temperature range of 2700K to 7500K and smooth 0-100% dimming allow seamless integration with existing lighting setups.
The PavoSlim 240CL delivers highly accurate color reproduction with impressive performance ratings, including:
These specifications help ensure natural skin tones and consistent color quality across a variety of shooting environments.
Fifteen integrated lighting effects are available for creating dynamic lighting scenarios, including:
The PavoSlim 240CL supports a wide range of professional control methods. Built-in LumenRadio CRMX enables wireless DMX operation, while onboard controls and the Nanlink Bluetooth app provide intuitive fixture management. Additional wireless control is available through the optional WS-TB-1 transmitter box or WS-RC-C2 remote. For larger productions, full DMX/RDM compatibility is also supported.
Designed for both studio and location use, the fixture supports worldwide operation through its dual-voltage power supply. The included control unit features battery plates for two optional 14.4-14.8V or 26V V-mount batteries, with two batteries required to achieve full output performance.
To accommodate a variety of rigging scenarios, the PavoSlim 240CL includes a swivel holder, baby pin mount, and quick-release control unit clamp. Multiple rear 4-pin locking plates allow secure mounting of accessories, while compatibility with the optional Nanlite magnetic base provides even greater flexibility.
For larger lighting setups, the optional multi-panel coupler kit allows multiple PavoSlim 240CL panels to be joined together. Users can combine two or four fixtures to create larger 2 x 4 or 4 x 4 lighting arrays while maintaining compatibility with light-shaping accessories.
