City Theatrical 5941 Multiverse Studio Add On Kit - 2.4GHz - Multiverse Studio Kit 2.4GHz
SKU: 5939
$9,124.50 USD
$7,755.83 USD
Shipping calculated at checkout.
1-3 Day shipping
PAY WITH
Couldn't load pickup availability
Key Features
- Expansion kit for City Theatrical Multiverse systems, operating on the 2.4GHz frequency band.
- Includes a Multiverse Transmitter and Multiverse Studio Receiver to add more wireless DMX universes.
- Supports up to 8 additional universes of DMX data, enhancing scalability for complex lighting setups.
- 2.4GHz frequency ensures global compatibility and reliable performance in open spaces.
- Compact and lightweight design for easy integration into existing systems or new installations.
- 3-pin and 5-pin XLR outputs on the receiver ensure universal compatibility with lighting fixtures.
- Built-in power supply for the receiver eliminates the need for external adapters, simplifying setup.
- Frequency hopping technology minimizes interference and ensures stable signal transmission.
- Ideal for expanding wireless capabilities in studios, theaters, and live event environments.
- Durable construction designed for professional use in demanding production scenarios.

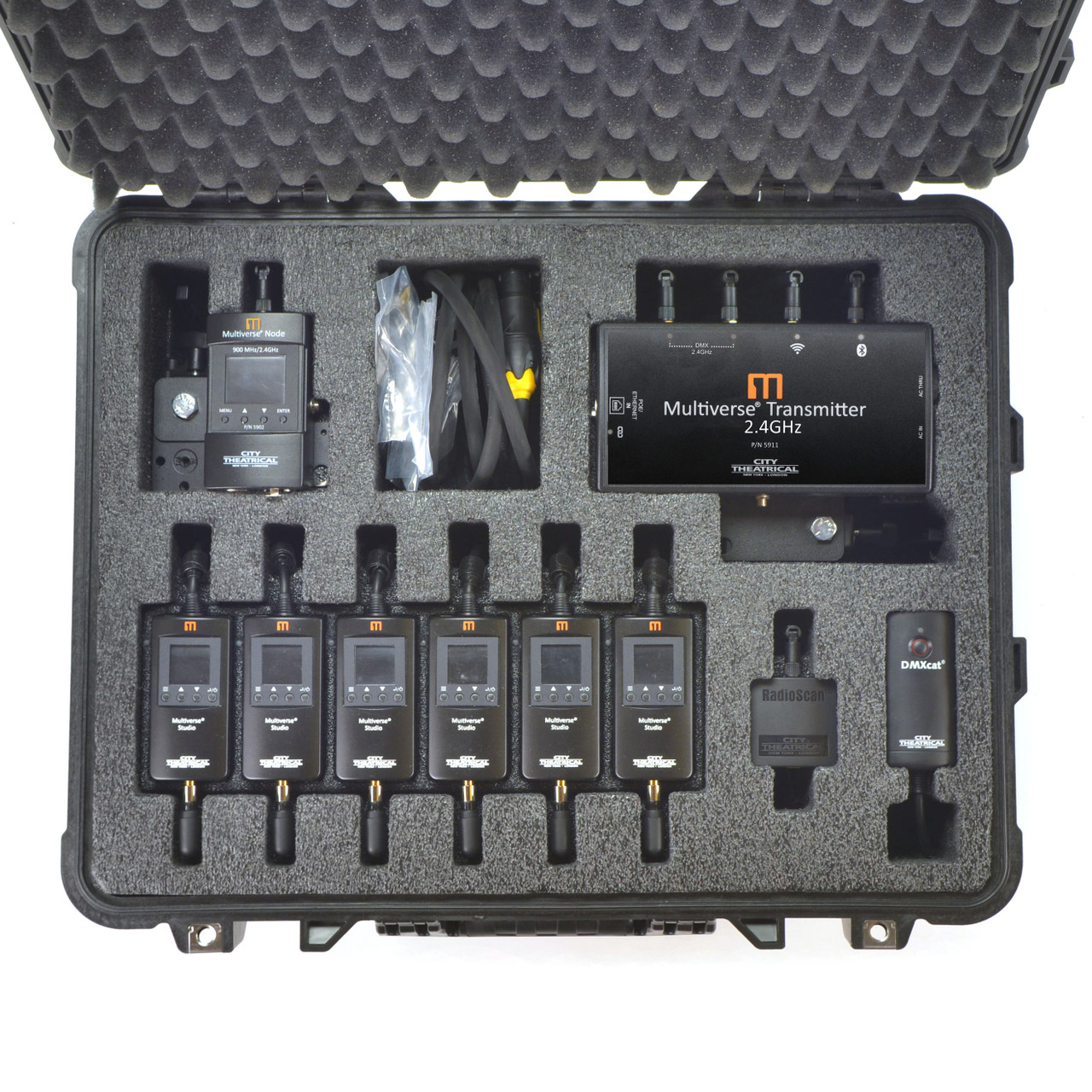

City Theatrical’s Multiverse? Studio Kit 2.4GHz brings the advanced technology of Multiverse wireless DMX/RDM system to the film and video world, featuring Receivers with 20 hour battery life and contactless charging in an easy to use kit. The Multiverse Studio Kit includes: six battery
powered Multiverse Studio Receivers, one Multiverse Transmitter with hanging bracket and clamp (for multi universe broadcasts), one
Multiverse Node with hanging bracket and clamp (for single universe broadcasts), one DMXcat Multi Function Test Tool (to turn on and
troubleshoot any lighting fixture on set), one RadioScan Spectrum Analyzer (for broadcast planning), and various accessories to keep your equipment organized and charged. The Multiverse Studio Kit provides all the tools lighting technicians need to quickly plan, setup, and operate wireless DMX/RDM on set. ? Contactless Charging: The Multiverse Studio Kit has contactless charging in an easy to use kit.
? Transmitters and receivers for the 2.4GHz band only.
? Long Life Rechargeable Battery Receivers: The six Multiverse Studio Receivers included have 20 hour battery life with default settings.
? Rugged and Splashproof Receivers: The six Multiverse Studio Receivers included have an IP61 rated plastic case, making them splashproof and rainproof (but not for permanent outdoor use).
? User Selectable SHoW IDs: City Theatrical has always produced wireless DMX products that allow the user to select the optimum transmission method. Users may select full bandwidth hopping, hopping limited to a section of the spectrum (including areas of the spectrum outside of the Wi-Fi range), or adaptive hopping.
? Adaptive Spread Spectrum Frequency Hopping: Adaptive Spread Spectrum Frequency Hopping identifies and masks off hopping channels that contain interference, replacing them in the hop sequence with alternate channels.
? Adjustable Output Power: Sometimes an application calls for the most available broadcast power, but many entertainment systems can utilize lower output power to reduce detrimental effects on other radio systems in the venue, reduce reflections, and improve performance.
? Ultra Low Latency: Total average system latency of 4ms.
? mDMX (Multiverse SHoW IDs only)
? mRDM (Multiverse SHoW IDs only)
? SHoW Key Security (Multiverse SHoW IDs only)
? Forward Error Correction (Multiverse SHoW IDs only)
? Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM
? Compatible with all Multiverse and SHoW DMX Neo products
? User can select a single universe to receive
? A very simple user interface to set SHoW ID, universe, and other features
? RDM proxy and responder functions
? USB-Power Adaptor and USB-A to USB-C cable included
? Selectable display timeout and brightness level
? Selectable Auto Off Timeout
? Battery Time Remaining displayed in both hours/minutes and percent ? Maximum Concurrent Universes: 1 ? 10
? Frequency Range: 2400 ? 2480 MHz
? Input Power: 100-240VAC 50-60Hz
? Max Draw: 0.95A
? Latency: 4 ms average
? RF Sensitivity: -95dBm
? Loss of Data Behavior: Output stops
? Broadcast Power: 3.2mW, 10mW, 32mW, 100mW EIRP
? Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
? Show IDs: Multiverse: 217; Neo: 70
? RDM Features: RDM Proxy, RDM Responder
? IP Rating: IP20
? Compliance: FCC, IC, cETLus Listed, CE, RoHs
? Operating Temperature 0? to 40?C w ? 6 battery-powered Multiverse Studio Receiver, 2.4GHz (P/N 5905)
? 1 Multiverse Transmitter 2.4GHz with hanging bracket and clamp (P/N 5911)
? 1 Multiverse Node 2.4GHz (P/N 5903)
? 1 DMXcat Multi-Function Test Tool (P/N 6000)
? 1 RadioScan Spectrum Analyzer (P/N 5988)
? 6 USB-A to USB-C cable, 1m (P/N 5987)
? 2 Power Cord, PowerCON True 1, 8? long (P/N 5940)
? 2 Mounting Clamps (P/N 5932)

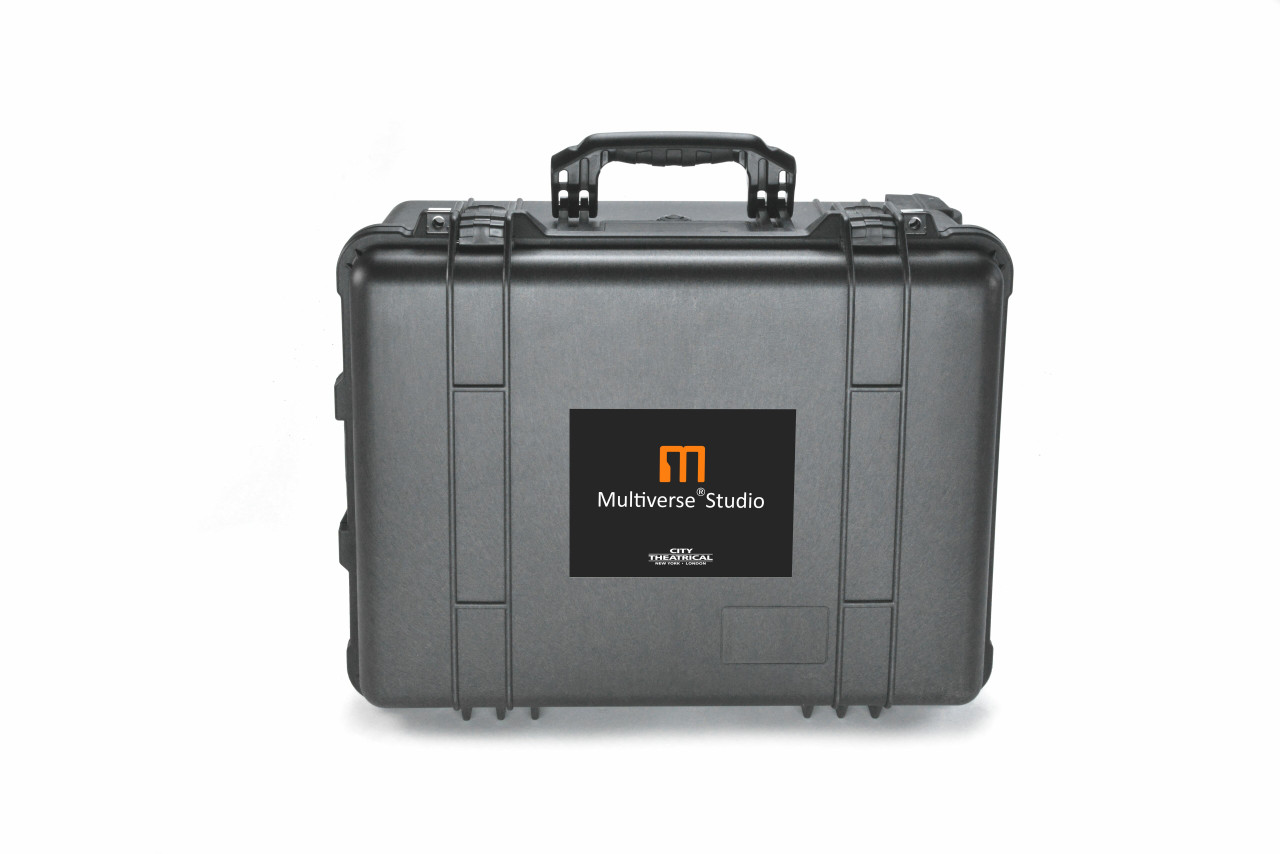

? 1 Pelican case with contactless charging (P/N 5976)
Spec Sheet
Manual URL
City Theatrical’s Multiverse? Studio Kit 2.4GHz brings the advanced technology of Multiverse wireless DMX/RDM system to the film and video world, featuring Receivers with 20 hour battery life and contactless charging in an easy to use kit. The Multiverse Studio Kit includes: six battery
powered Multiverse Studio Receivers, one Multiverse Transmitter with hanging bracket and clamp (for multi universe broadcasts), one
Multiverse Node with hanging bracket and clamp (for single universe broadcasts), one DMXcat Multi Function Test Tool (to turn on and
troubleshoot any lighting fixture on set), one RadioScan Spectrum Analyzer (for broadcast planning), and various accessories to keep your equipment organized and charged. The Multiverse Studio Kit provides all the tools lighting technicians need to quickly plan, setup, and operate wireless DMX/RDM on set. ? Contactless Charging: The Multiverse Studio Kit has contactless charging in an easy to use kit.
? Transmitters and receivers for the 2.4GHz band only.
? Long Life Rechargeable Battery Receivers: The six Multiverse Studio Receivers included have 20 hour battery life with default settings.
? Rugged and Splashproof Receivers: The six Multiverse Studio Receivers included have an IP61 rated plastic case, making them splashproof and rainproof (but not for permanent outdoor use).
? User Selectable SHoW IDs: City Theatrical has always produced wireless DMX products that allow the user to select the optimum transmission method. Users may select full bandwidth hopping, hopping limited to a section of the spectrum (including areas of the spectrum outside of the Wi-Fi range), or adaptive hopping.
? Adaptive Spread Spectrum Frequency Hopping: Adaptive Spread Spectrum Frequency Hopping identifies and masks off hopping channels that contain interference, replacing them in the hop sequence with alternate channels.
? Adjustable Output Power: Sometimes an application calls for the most available broadcast power, but many entertainment systems can utilize lower output power to reduce detrimental effects on other radio systems in the venue, reduce reflections, and improve performance.
? Ultra Low Latency: Total average system latency of 4ms.
? mDMX (Multiverse SHoW IDs only)
? mRDM (Multiverse SHoW IDs only)
? SHoW Key Security (Multiverse SHoW IDs only)
? Forward Error Correction (Multiverse SHoW IDs only)
? Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM
? Compatible with all Multiverse and SHoW DMX Neo products
? User can select a single universe to receive
? A very simple user interface to set SHoW ID, universe, and other features
? RDM proxy and responder functions
? USB-Power Adaptor and USB-A to USB-C cable included
? Selectable display timeout and brightness level
? Selectable Auto Off Timeout
? Battery Time Remaining displayed in both hours/minutes and percent ? Maximum Concurrent Universes: 1 ? 10
? Frequency Range: 2400 ? 2480 MHz
? Input Power: 100-240VAC 50-60Hz
? Max Draw: 0.95A
? Latency: 4 ms average
? RF Sensitivity: -95dBm
? Loss of Data Behavior: Output stops
? Broadcast Power: 3.2mW, 10mW, 32mW, 100mW EIRP
? Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
? Show IDs: Multiverse: 217; Neo: 70
? RDM Features: RDM Proxy, RDM Responder
? IP Rating: IP20
? Compliance: FCC, IC, cETLus Listed, CE, RoHs
? Operating Temperature 0? to 40?C w ? 6 battery-powered Multiverse Studio Receiver, 2.4GHz (P/N 5905)
? 1 Multiverse Transmitter 2.4GHz with hanging bracket and clamp (P/N 5911)
? 1 Multiverse Node 2.4GHz (P/N 5903)
? 1 DMXcat Multi-Function Test Tool (P/N 6000)
? 1 RadioScan Spectrum Analyzer (P/N 5988)
? 6 USB-A to USB-C cable, 1m (P/N 5987)
? 2 Power Cord, PowerCON True 1, 8? long (P/N 5940)
? 2 Mounting Clamps (P/N 5932)
? 1 Pelican case with contactless charging (P/N 5976)
Spec Sheet
Manual URL
City Theatrical’s Multiverse? Studio Kit 2.4GHz brings the advanced technology of Multiverse wireless DMX/RDM system to the film and video world, featuring Receivers with 20 hour battery life and contactless charging in an easy to use kit. The Multiverse Studio Kit includes: six battery
powered Multiverse Studio Receivers, one Multiverse Transmitter with hanging bracket and clamp (for multi universe broadcasts), one
Multiverse Node with hanging bracket and clamp (for single universe broadcasts), one DMXcat Multi Function Test Tool (to turn on and
troubleshoot any lighting fixture on set), one RadioScan Spectrum Analyzer (for broadcast planning), and various accessories to keep your equipment organized and charged. The Multiverse Studio Kit provides all the tools lighting technicians need to quickly plan, setup, and operate wireless DMX/RDM on set. ? Contactless Charging: The Multiverse Studio Kit has contactless charging in an easy to use kit.
? Transmitters and receivers for the 2.4GHz band only.
? Long Life Rechargeable Battery Receivers: The six Multiverse Studio Receivers included have 20 hour battery life with default settings.
? Rugged and Splashproof Receivers: The six Multiverse Studio Receivers included have an IP61 rated plastic case, making them splashproof and rainproof (but not for permanent outdoor use).
? User Selectable SHoW IDs: City Theatrical has always produced wireless DMX products that allow the user to select the optimum transmission method. Users may select full bandwidth hopping, hopping limited to a section of the spectrum (including areas of the spectrum outside of the Wi-Fi range), or adaptive hopping.
? Adaptive Spread Spectrum Frequency Hopping: Adaptive Spread Spectrum Frequency Hopping identifies and masks off hopping channels that contain interference, replacing them in the hop sequence with alternate channels.
? Adjustable Output Power: Sometimes an application calls for the most available broadcast power, but many entertainment systems can utilize lower output power to reduce detrimental effects on other radio systems in the venue, reduce reflections, and improve performance.
? Ultra Low Latency: Total average system latency of 4ms.
? mDMX (Multiverse SHoW IDs only)
? mRDM (Multiverse SHoW IDs only)
? SHoW Key Security (Multiverse SHoW IDs only)
? Forward Error Correction (Multiverse SHoW IDs only)
? Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM
? Compatible with all Multiverse and SHoW DMX Neo products
? User can select a single universe to receive
? A very simple user interface to set SHoW ID, universe, and other features
? RDM proxy and responder functions
? USB-Power Adaptor and USB-A to USB-C cable included
? Selectable display timeout and brightness level
? Selectable Auto Off Timeout
? Battery Time Remaining displayed in both hours/minutes and percent ? Maximum Concurrent Universes: 1 ? 10
? Frequency Range: 2400 ? 2480 MHz
? Input Power: 100-240VAC 50-60Hz
? Max Draw: 0.95A
? Latency: 4 ms average
? RF Sensitivity: -95dBm
? Loss of Data Behavior: Output stops
? Broadcast Power: 3.2mW, 10mW, 32mW, 100mW EIRP
? Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
? Show IDs: Multiverse: 217; Neo: 70
? RDM Features: RDM Proxy, RDM Responder
? IP Rating: IP20
? Compliance: FCC, IC, cETLus Listed, CE, RoHs
? Operating Temperature 0? to 40?C w ? 6 battery-powered Multiverse Studio Receiver, 2.4GHz (P/N 5905)
? 1 Multiverse Transmitter 2.4GHz with hanging bracket and clamp (P/N 5911)
? 1 Multiverse Node 2.4GHz (P/N 5903)
? 1 DMXcat Multi-Function Test Tool (P/N 6000)
? 1 RadioScan Spectrum Analyzer (P/N 5988)
? 6 USB-A to USB-C cable, 1m (P/N 5987)
? 2 Power Cord, PowerCON True 1, 8? long (P/N 5940)
? 2 Mounting Clamps (P/N 5932)
? 1 Pelican case with contactless charging (P/N 5976)
Spec Sheet
Manual URL
