City Theatrical 5940 Multiverse Studio Add On Kit - 900MHz/2.4GHz
SKU: 5940
$5,472.62 USD
$4,651.73 USD
Shipping calculated at checkout.
PAY WITH
Couldn't load pickup availability
Key Features
- Dual-band operation supports both 900MHz and 2.4GHz frequencies for versatile wireless communication.
- Compatible with City Theatrical's Multiverse system, enabling seamless integration into existing setups.
- Includes Sidus One technology for advanced wireless DMX control and monitoring.
- Extended range capability ensures reliable signal transmission in large venues or outdoor environments.
- Compact and lightweight design allows for easy installation and portability.
- Supports up to 16 universes of DMX data for extensive lighting control options.
- Low-latency performance ensures real-time responsiveness for live events and productions.
- Robust build quality ensures durability in demanding professional environments.
- Intuitive setup process with plug-and-play functionality minimizes configuration time.
- FCC and CE compliant, ensuring safe and interference-free operation.
- Content
- Shipping
- Returns
- Warranty

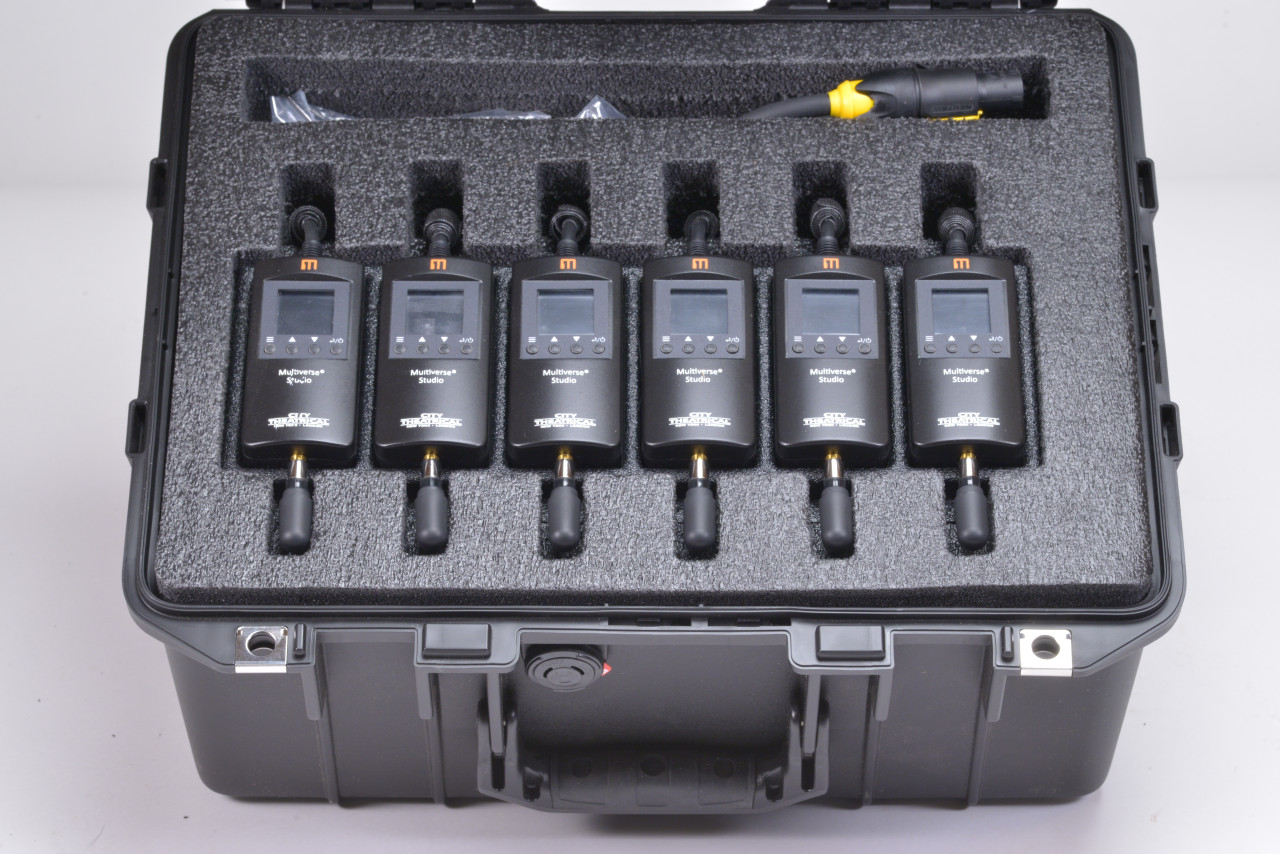

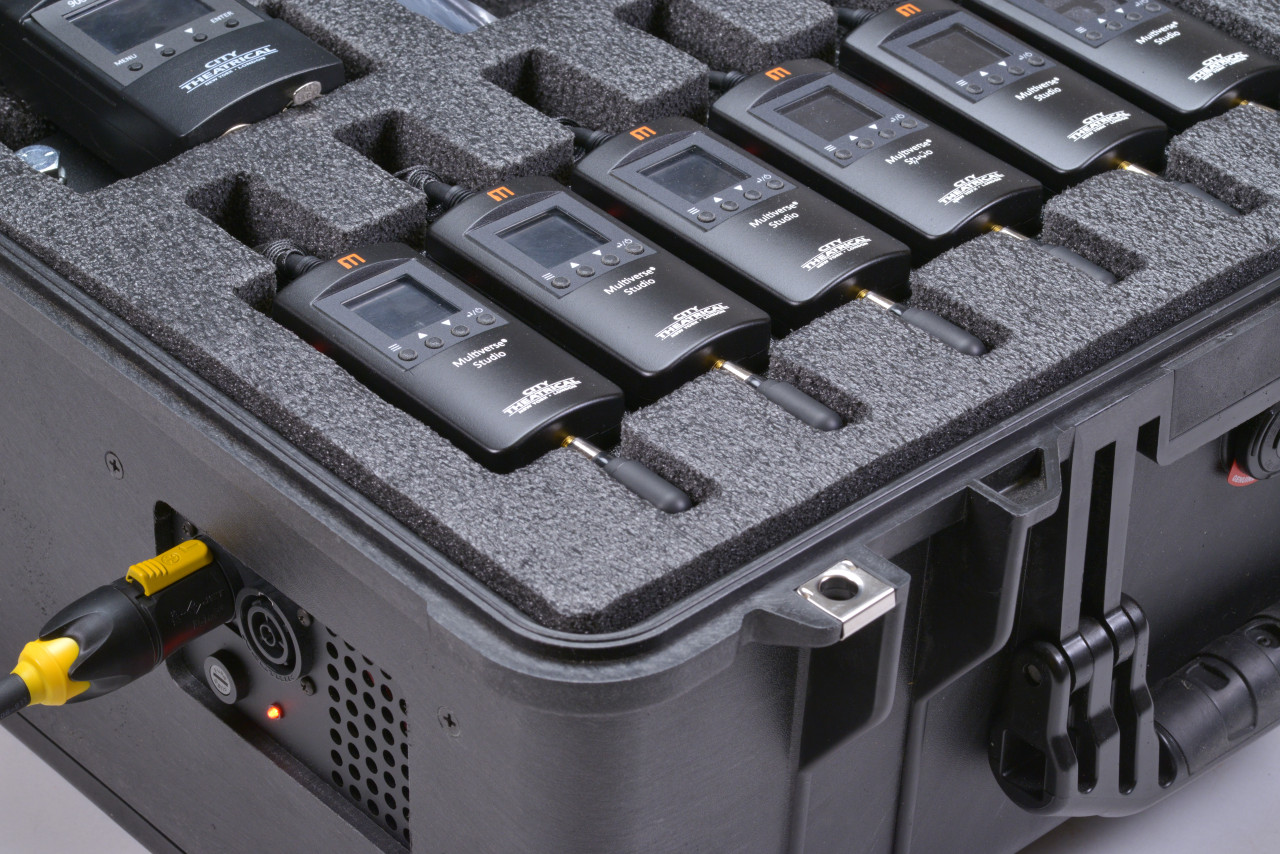

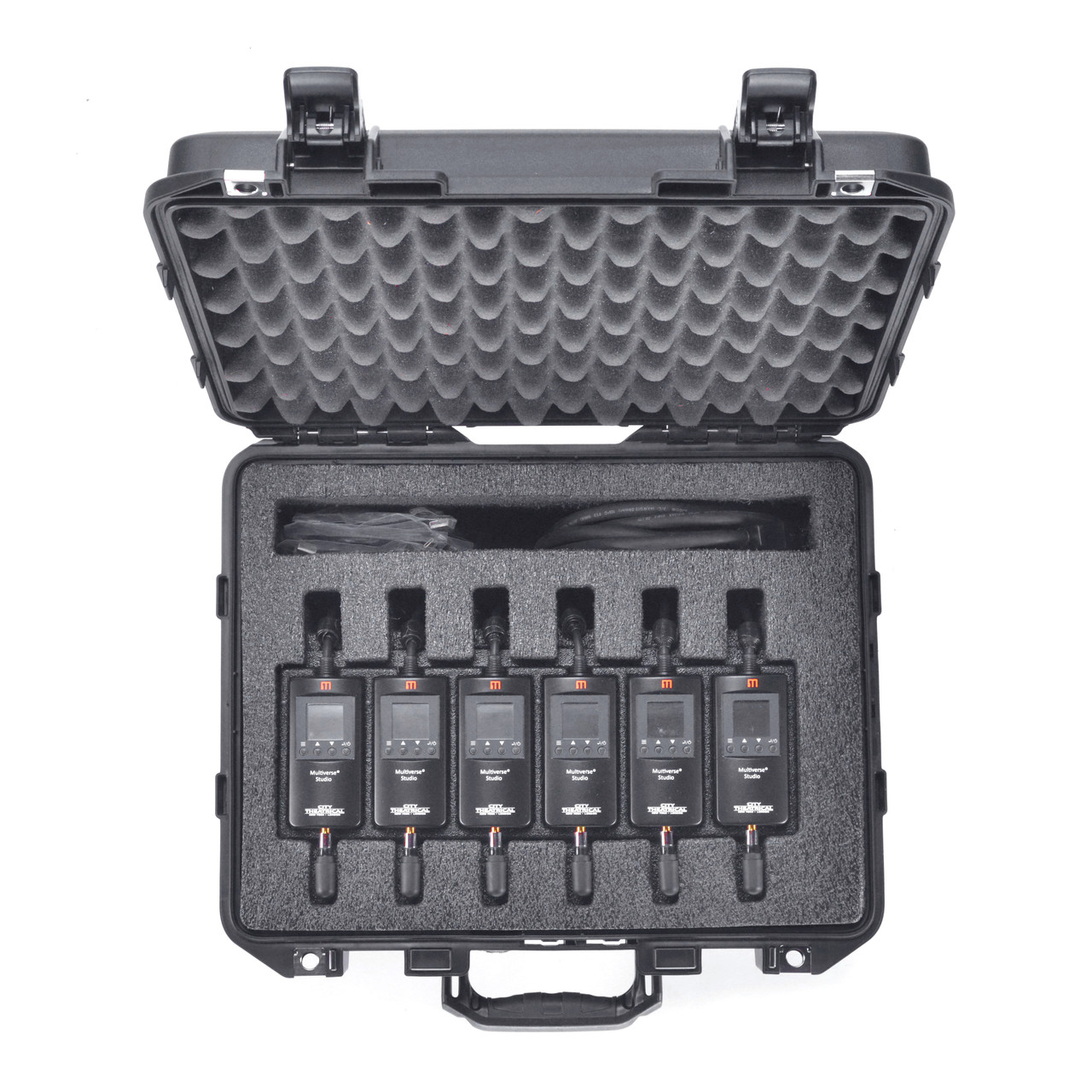

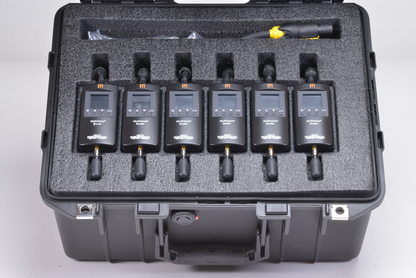

City Theatrical?s Multiverse? Studio Add On Kit 900MHz/2.4GHz (P/N 5940) brings the advanced technology of the dual band Multiverse wireless DMX/RDM system to the film and video world, featuring Receivers with 20
hour battery life and contactless charging in an easy to use kit. Just drop the Multiverse Studio Receiver onto its slot in the case, and it will begin charging. Individual chargers and USB cables are also included to enable
charging or powering individual units outside the case. The Multiverse Studio Kit provides six additional Multiverse Studio Receivers for users to expand upon their full 5938 Multiverse Studio Kits. ? Contactless Charging: The Multiverse Studio Add On Kit Kit has contactless charging in an easy to use kit.
? Choice of Broadcast Radio: Transmit and receive on either the 2.4GHz band or the 900MHz band for Multiverse Studio Add On Kit P/N 5940.
? Long Life Rechargeable Battery Receivers: The six Multiverse Studio Receivers included have 20 hour battery life with default settings.
? Rugged and Splashproof Receivers: The six Multiverse Studio Receivers included have an IP61 rated plastic case, making them splashproof and rainproof (but not for permanent outdoor use).
? User Selectable SHoW IDs: City Theatrical has always produced wireless DMX products that allow the user to select the optimum transmission method. Users may select full bandwidth hopping, hopping limited to a section of the spectrum (including areas of the spectrum outside of the Wi-Fi range), or adaptive hopping.
? Adaptive Spread Spectrum Frequency Hopping: Adaptive Spread Spectrum Frequency Hopping identifies and masks off hopping channels that contain interference, replacing them in the hop sequence with alternate channels.
? Adjustable Output Power: Sometimes an application calls for the most available broadcast power, but many entertainment systems can utilize lower output power to reduce detrimental effects on other radio systems in the venue, reduce reflections, and improve performance.
? Ultra Low Latency: Total average system latency of 4ms.
? mDMX (Multiverse SHoW IDs only)
? mRDM (Multiverse SHoW IDs only)
? SHoW Key Security (Multiverse SHoW IDs only)
? Forward Error Correction (Multiverse SHoW IDs only)
? Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM
? Compatible with all Multiverse and SHoW DMX Neo products
? User can select a single universe to receive
? A very simple user interface to set SHoW ID, universe, and other features
? RDM proxy and responder functions
? USB-Power Adaptor and USB-A to USB-C cable included
? Selectable display timeout and brightness level
? Selectable Auto Off Timeout
? Battery Time Remaining displayed in both hours/minutes and percent ? Maximum Concurrent Universes: 1 ? 9
? Frequency Range: 2400 ? 2480 MHz; 902 ? 928 MHz
? Input Power: 100-240VAC 50-60Hz
? Max Draw: 0.95A
? Latency: 4 ms average
? RF Sensitivity: -95dBm
? Loss of Data Behavior: Output stops
? Broadcast Power: 3.2mW, 10mW, 32mW, 100mW EIRP
? Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
? Show IDs: Multiverse: 307; Neo: 70
? RDM Features: RDM Proxy, RDM Responder
? IP Rating: IP20
? Compliance: Kit: UL 508A
? Operating Temperature 0? to 40?C w ? 6 Multiverse Studio Receivers, 900MHz/2.4GHz (P/N 5904)
? 6 USB-A to USB-C cable, 1m (P/N 5987)
? 1 Power Cord, PowerCON True 1, 8? long (P/N 5840)
? 1 Pelican case with contactless charging (P/N 5976)
? 6 Power Supplies, 100-240VAC input, 5VDC output (P/N 5969)
Spec Sheet
