City Theatrical 5941 Multiverse Studio Add On Kit - 2.4GHz
SKU: 5941
$5,162.85 USD
$4,388.42 USD
Shipping calculated at checkout.
1-3 Day shipping
PAY WITH
Couldn't load pickup availability
Key Features
- Operates on the 2.4GHz frequency band for reliable wireless communication in diverse environments.
- Fully compatible with City Theatrical's Multiverse system, ensuring seamless integration into existing setups.
- Includes Sidus One technology for advanced wireless DMX control and real-time monitoring.
- Supports up to 16 universes of DMX data, providing extensive lighting control capabilities.
- Optimized for use in studio environments, offering stable and interference-resistant performance.
- Compact and portable design simplifies installation and storage.
- Low-latency transmission ensures precise and responsive control for live events and productions.
- Durable construction designed to withstand the rigors of professional use.
- Quick and intuitive setup with plug-and-play functionality for minimal configuration time.
- FCC and CE compliant, guaranteeing safe and interference-free operation.

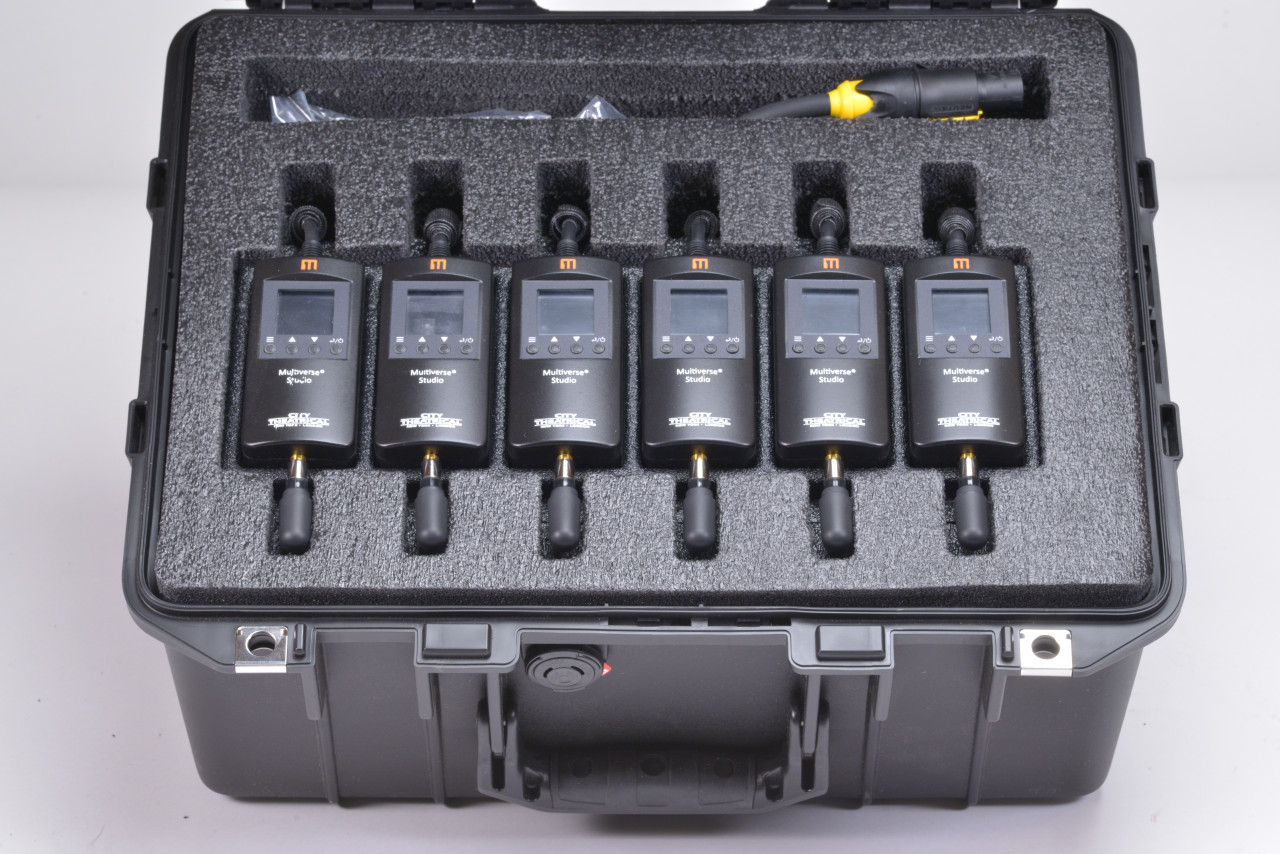

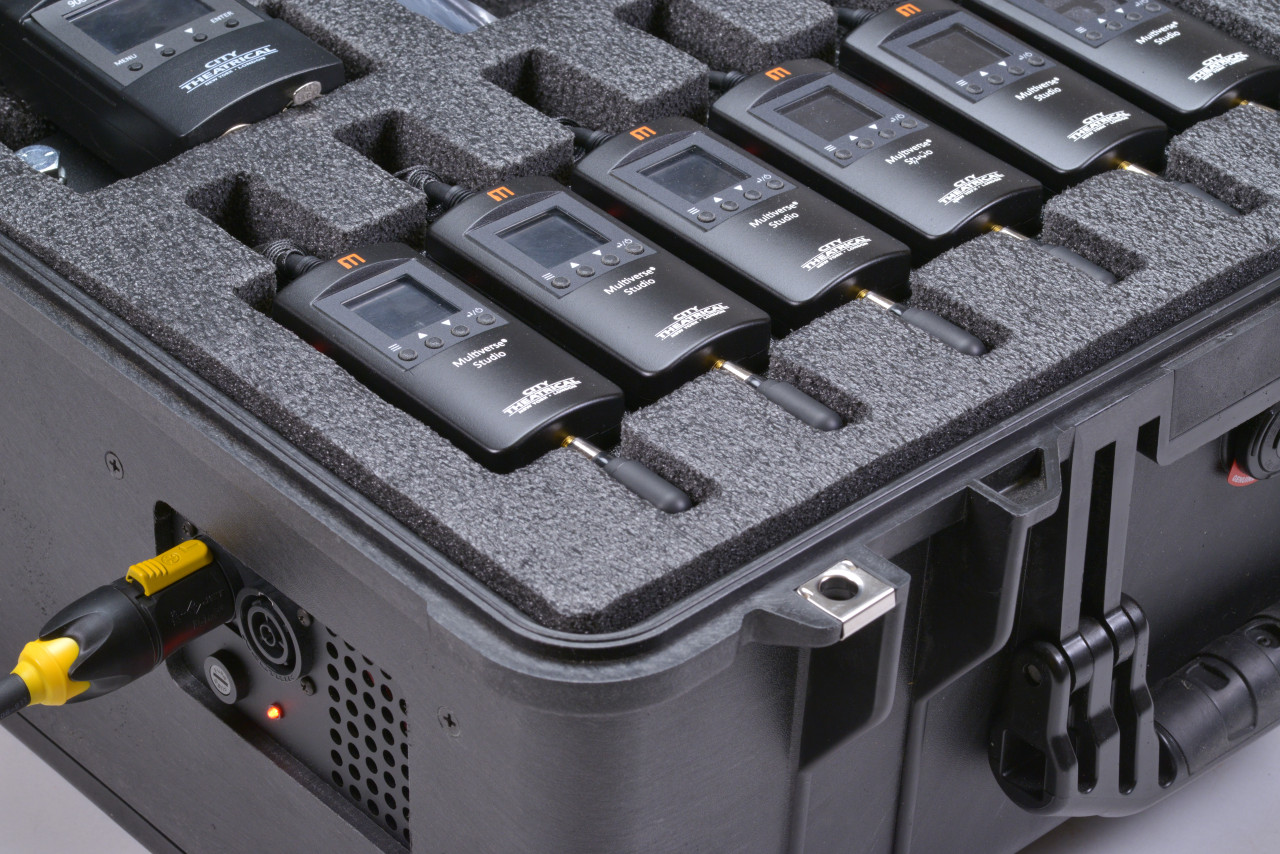

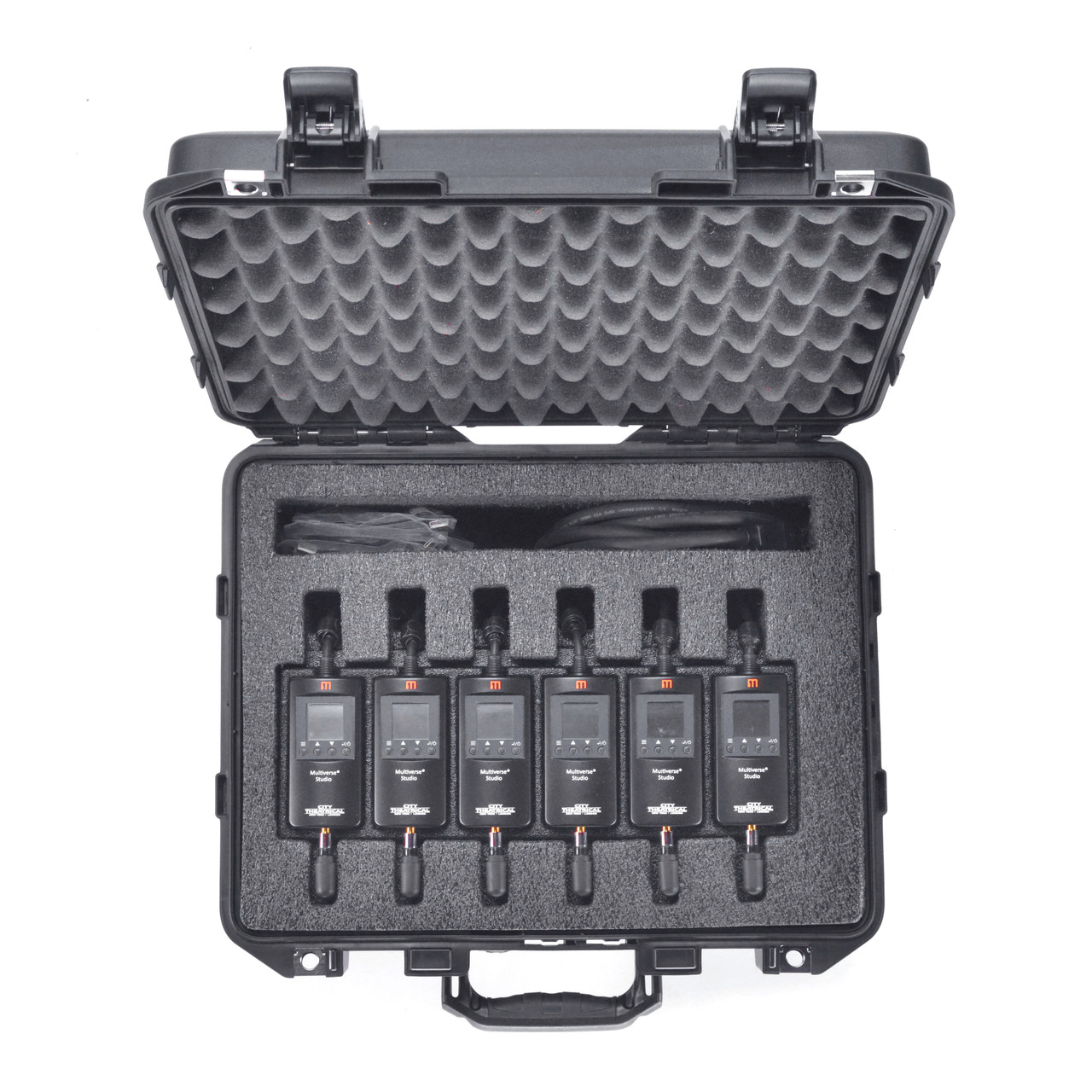

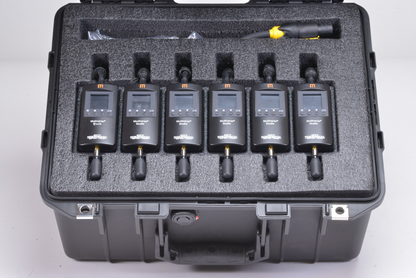

City Theatrical’s Multiverse? Studio Add On Kit 2.4GHz (P/N 5941) brings the advanced technology of the Multiverse wireless DMX/RDM system to the film and video world, featuring Receivers with 20 hour battery life and contactless charging in an easy to use kit. Just drop the Multiverse Studio Receiver onto its slot in the case, and it will begin charging. Individual
chargers and USB cables are also included to enable charging or powering individual units outside the case. The Multiverse Studio Kit provides six additional Multiverse Studio Receivers for users to expand upon their full 5939 Multiverse Studio Kits. ? Contactless Charging: The Multiverse Studio Add On Kit has contactless charging in an easy to use kit.
? Transmitters and receivers in the Multiverse Studio Add On Kit are for the 2.4GHz band only.
? Long Life Rechargeable Battery Receivers: The six Multiverse Studio Receivers included have 20 hour battery life with default settings.
? Rugged and Splashproof Receivers: The six Multiverse Studio Receivers included have an IP61 rated plastic case, making them splashproof and rainproof (but not for permanent outdoor use).
? User Selectable SHoW IDs: City Theatrical has always produced wireless DMX products that allow the user to select the optimum transmission method. Users may select full bandwidth hopping, hopping limited to a section of the spectrum (including areas of the spectrum outside of the Wi-Fi range), or adaptive hopping.
? Adaptive Spread Spectrum Frequency Hopping: Adaptive Spread Spectrum Frequency Hopping identifies and masks off hopping channels that contain interference, replacing them in the hop sequence with alternate channels.
? Adjustable Output Power: Sometimes an application calls for the most available broadcast power, but many entertainment systems can utilize lower output power to reduce detrimental effects on other radio systems in the venue, reduce reflections, and improve performance.
? Ultra Low Latency: Total average system latency of 4ms.
? mDMX (Multiverse SHoW IDs only)
? mRDM (Multiverse SHoW IDs only)
? SHoW Key Security (Multiverse SHoW IDs only)
? Forward Error Correction (Multiverse SHoW IDs only)
? Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM
? Compatible with all Multiverse and SHoW DMX Neo products
? User can select a single universe to receive
? A very simple user interface to set SHoW ID, universe, and other features
? RDM proxy and responder functions
? USB-Power Adaptor and USB-A to USB-C cable included
? Selectable display timeout and brightness level
? Selectable Auto Off Timeout
? Battery Time Remaining displayed in both hours/minutes and percent ? Maximum Concurrent Universes: 1 ? 10
? Frequency Range: 2400 ? 2480 MHz
? Input Power: 100-240VAC 50-60Hz
? Max Draw: 0.95A
? Latency: 4 ms average
? RF Sensitivity: -95dBm
? Loss of Data Behavior: Output stops
? Broadcast Power: 3.2mW, 10mW, 32mW, 100mW EIRP
? Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
? Show IDs: Multiverse: 217; Neo: 70
? RDM Features: RDM Proxy, RDM Responder
? IP Rating: IP20
? Compliance: FCC, IC, cETLus Listed, CE, RoHs
? Operating Temperature 0? to 40?C w ? 6 Multiverse Studio Receivers, 2.4GHz (P/N 5905)
? 6 USB-A to USB-C cable, 1m (P/N 5987)
? 1 Power Cord, PowerCON True 1, 8? long (P/N 5840)
? 1 Pelican case with contactless charging (P/N 5976)
Spec Sheet
