Cinelex Switchable Wireless DMX Transmitter & Receiver (V-Mount & DC-in Powered)

SKU: TRX-V

$795.00 USD
Shipping calculated at checkout.

Free Ground 1 day Shipping

PAY WITH

Key Features

  • Switchable CRMX Wireless DMX Transmitter & Receiver
  • Includes 1x TRX-V (V-Mount), 1x Antenna, and 1x AC Adapter with UK, EU & USA Plugs
  • V-Mount Battery Plate for Mobile Power Integration
  • DC-In Power Input for Flexible Power Options
  • Supports CRMX and DMX Protocols for Full Compatibility
  • Seamless Switching Between Transmit and Receive Modes
  • Durable Housing for Field and Studio Applications
  • Reliable Wireless Signal with Low Latency and RDM Support
View full details
  • Content
  • What's in the Box
  • Shipping
  • Returns
  • Warranty

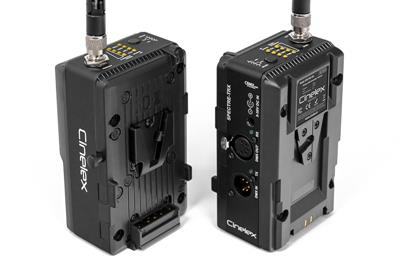

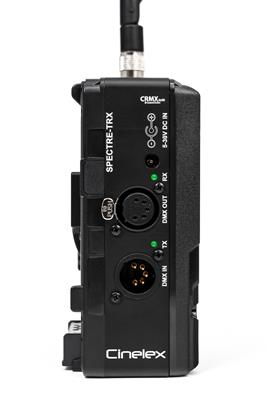

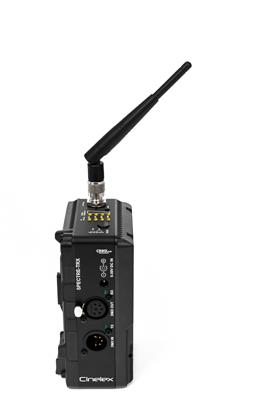

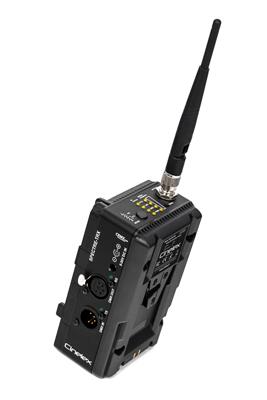

Cinelex TRX-V | Switchable Wireless DMX Transmitter & Receiver (V-Lock Powered) The Cinelex TRX-V is a professional-grade, all-in-one wireless DMX transmitter and receiver, designed to deliver maximum flexibility and rugged reliability on set. Built with a V-Lock battery plate and 5–30V DC input, it’s ready to run on location or in-studio, powered by battery or mains. In the box: 1x TRX-V (V-Mount) Unit 1x Antenna 1x AC Adapter with UK, EU & USA plug set Versatile & Ready for Any Rig This unit features full-size 5-pin DMX connectors for seamless compatibility with any professional lighting setup. Easily switch between TX (transmit) and RX (receive) modes with a single toggle—no need to buy separate units. Setup is fast and intuitive, with a simple SYNC button to link with other LumenRadio CRMX devices. Built from extruded aluminum, the TRX-V is designed to endure the rigors of rentals, transport, and demanding environments. Cinelex TRX-V Specifications Wireless Protocol Standard: LumenRadio CRMX Frequency: 2.4GHz (2402–2480 MHz) Range: Up to 100 meters (varies by environment) DMX Support: DMX512, DMX512 (1990), DMX512-A RDM: ANSI 1.20 (Receive mode only) Power Input: 5–30V DC (via 2.1mm socket) Consumption: 1W Power Options: Mains or V-Lock battery Controls TX/RX Mode Selector SYNC Button for pairing with CRMX devices Connections 1x 5-Pin XLR Male (DMX Output) 1x 5-Pin XLR Female (DMX Input) 1x V-Lock Plate (Male & Female) 1x 2.1mm DC-In Power Socket LED Indicators TX / RX LEDs – Show current mode Power (PWR) – Confirms power input DMX – Confirms DMX signal LNK – Sync status STA – Connection indicator Signal Strength – 4-step LED meter (Receive mode) Dimensions & Weight Size (excluding antenna): 155mm x 90mm x 65mm Weight: 370g
Cinelex TRX-V | Switchable Wireless DMX Transmitter & Receiver (V-Lock Powered) The Cinelex TRX-V is a professional-grade, all-in-one wireless DMX transmitter and receiver, designed to deliver maximum flexibility and rugged reliability on set. Built with a V-Lock battery plate and 5–30V DC input, it’s ready to run on location or in-studio, powered by battery or mains. In the box: 1x TRX-V (V-Mount) Unit 1x Antenna 1x AC Adapter with UK, EU & USA plug set Versatile & Ready for Any Rig This unit features full-size 5-pin DMX connectors for seamless compatibility with any professional lighting setup. Easily switch between TX (transmit) and RX (receive) modes with a single toggle—no need to buy separate units. Setup is fast and intuitive, with a simple SYNC button to link with other LumenRadio CRMX devices. Built from extruded aluminum, the TRX-V is designed to endure the rigors of rentals, transport, and demanding environments. Cinelex TRX-V Specifications Wireless Protocol Standard: LumenRadio CRMX Frequency: 2.4GHz (2402–2480 MHz) Range: Up to 100 meters (varies by environment) DMX Support: DMX512, DMX512 (1990), DMX512-A RDM: ANSI 1.20 (Receive mode only) Power Input: 5–30V DC (via 2.1mm socket) Consumption: 1W Power Options: Mains or V-Lock battery Controls TX/RX Mode Selector SYNC Button for pairing with CRMX devices Connections 1x 5-Pin XLR Male (DMX Output) 1x 5-Pin XLR Female (DMX Input) 1x V-Lock Plate (Male & Female) 1x 2.1mm DC-In Power Socket LED Indicators TX / RX LEDs – Show current mode Power (PWR) – Confirms power input DMX – Confirms DMX signal LNK – Sync status STA – Connection indicator Signal Strength – 4-step LED meter (Receive mode) Dimensions & Weight Size (excluding antenna): 155mm x 90mm x 65mm Weight: 370g
Cinelex TRX-V | Switchable Wireless DMX Transmitter & Receiver (V-Lock Powered) The Cinelex TRX-V is a professional-grade, all-in-one wireless DMX transmitter and receiver, designed to deliver maximum flexibility and rugged reliability on set. Built with a V-Lock battery plate and 5–30V DC input, it’s ready to run on location or in-studio, powered by battery or mains. In the box: 1x TRX-V (V-Mount) Unit 1x Antenna 1x AC Adapter with UK, EU & USA plug set Versatile & Ready for Any Rig This unit features full-size 5-pin DMX connectors for seamless compatibility with any professional lighting setup. Easily switch between TX (transmit) and RX (receive) modes with a single toggle—no need to buy separate units. Setup is fast and intuitive, with a simple SYNC button to link with other LumenRadio CRMX devices. Built from extruded aluminum, the TRX-V is designed to endure the rigors of rentals, transport, and demanding environments. Cinelex TRX-V Specifications Wireless Protocol Standard: LumenRadio CRMX Frequency: 2.4GHz (2402–2480 MHz) Range: Up to 100 meters (varies by environment) DMX Support: DMX512, DMX512 (1990), DMX512-A RDM: ANSI 1.20 (Receive mode only) Power Input: 5–30V DC (via 2.1mm socket) Consumption: 1W Power Options: Mains or V-Lock battery Controls TX/RX Mode Selector SYNC Button for pairing with CRMX devices Connections 1x 5-Pin XLR Male (DMX Output) 1x 5-Pin XLR Female (DMX Input) 1x V-Lock Plate (Male & Female) 1x 2.1mm DC-In Power Socket LED Indicators TX / RX LEDs – Show current mode Power (PWR) – Confirms power input DMX – Confirms DMX signal LNK – Sync status STA – Connection indicator Signal Strength – 4-step LED meter (Receive mode) Dimensions & Weight Size (excluding antenna): 155mm x 90mm x 65mm Weight: 370g
(Includes: 1x TRX-V (V-Mount), 1x Antenna & 1x AC Adaptor with UK, EU & USA Plugs)

Shipping Policies

Returns and Refunds

Cinelex products come with a 1-year limited warranty, covering defects in materials and workmanship under normal use. If a product is found to be defective within the warranty period, Cinelex will repair or replace it at no cost. This warranty does not cover damage caused by misuse, accidents, or unauthorized repairs. For full warranty terms and support, please contact us or visit the Cinelex website.
What's in the Box
(Includes: 1x TRX-V (V-Mount), 1x Antenna & 1x AC Adaptor with UK, EU & USA Plugs)
Shipping

Shipping Policies

Returns

Returns and Refunds

Warranty
Cinelex products come with a 1-year limited warranty, covering defects in materials and workmanship under normal use. If a product is found to be defective within the warranty period, Cinelex will repair or replace it at no cost. This warranty does not cover damage caused by misuse, accidents, or unauthorized repairs. For full warranty terms and support, please contact us or visit the Cinelex website.
