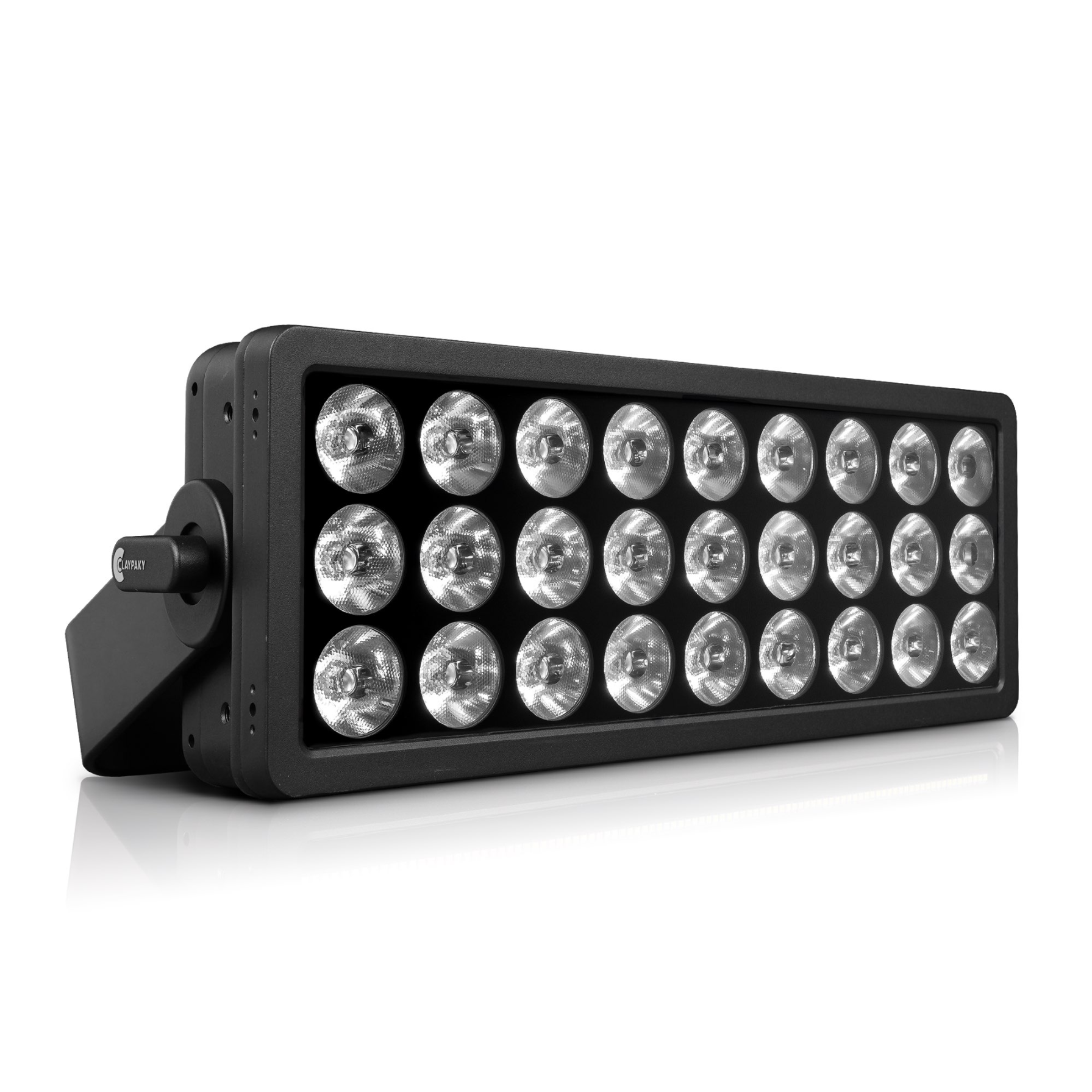

Claypaky Tambora Rays RGBWW LED Linear Fixture (20.9 x 7.08")
SKU: CL2025E41100S
$2,872.00 USD
Shipping calculated at checkout.
PAY WITH
Couldn't load pickup availability
Key Features
- 27 x 40W RGBWW LEDs
- 7° narrow beam angle
- RGBWW color mixing system
- High-output beam and aerial effects
- IP66-rated weatherproof housing
- Pixel mapping with individual LED control
- DMX, RDM, Art-Net, and sACN control
- 100–240V, 50/60 Hz auto-range power
- What's in the Box
- Content
The Claypaky Tambora Rays RGBWW LED Linear Fixture is a high-output solution designed for pixel-to-pixel control and powerful visual effects. Built with an IP66-rated weather-resistant housing, it performs reliably in both indoor and outdoor environments. The fixture features 27 x 40W RGBWW individually controllable LEDs with a tight 7° beam angle, delivering up to 19,000 lumens for strong, focused output in uplighting, wall washing, and aerial effects.
Engineered for flexibility, the fixture offers 16-bit high-resolution dimming with five curves and supports three core lighting functions: color, strobe, and dimming. With individual pixel mapping, users can create detailed effects and dynamic patterns, supported by adjustable strobe speeds from 1/1 to 1/30. The 2700–8000K color temperature range ensures versatile color rendering across applications, while Advanced Layer Management allows control of color, internal shapes, and pixel effects simultaneously.
The Tambora Rays supports DMX, Art-Net, sACN, and RDM, along with a built-in web server for remote configuration. It features three control modes—Basic (8-bit RGBW), Standard (16-bit RGBW), and Advanced mode—with channel options of 10, 26, and 32, providing scalable control for both simple and complex setups.
Built for durability, the fixture uses a magnesium housing with thermal protection and operates within a -4°F to 113°F temperature range. It dissipates approximately 2460 BTU/hour (±10%) and includes fan and heatsink cooling systems to maintain performance during extended use.
Designed for flexible rigging, the fixture can operate in any orientation and supports horizontal and vertical configurations. It includes an Omega mounting bracket with fast-lock system for quick and secure installation.
