Claypaky Ultimo Hybrid (Foam Shell): 550w Lamp, 6000k, 4000hrs 100-240V 50/60Hz ETL IP66
SKU: CD3039E41100F
$11,608.00 USD
Shipping calculated at checkout.
PAY WITH
Couldn't load pickup availability
Key Features
- 550W discharge lamp, 6000K output
- Up to 4000-hour lamp life
- Hybrid beam, spot, and wash modes
- High-intensity long-throw optics
- IP66-rated weatherproof housing
- CMY color mixing with color wheel
- DMX, RDM, Art-Net, and sACN control
- 100–240V, 50/60Hz auto-range power
- What's in the Box
- Content

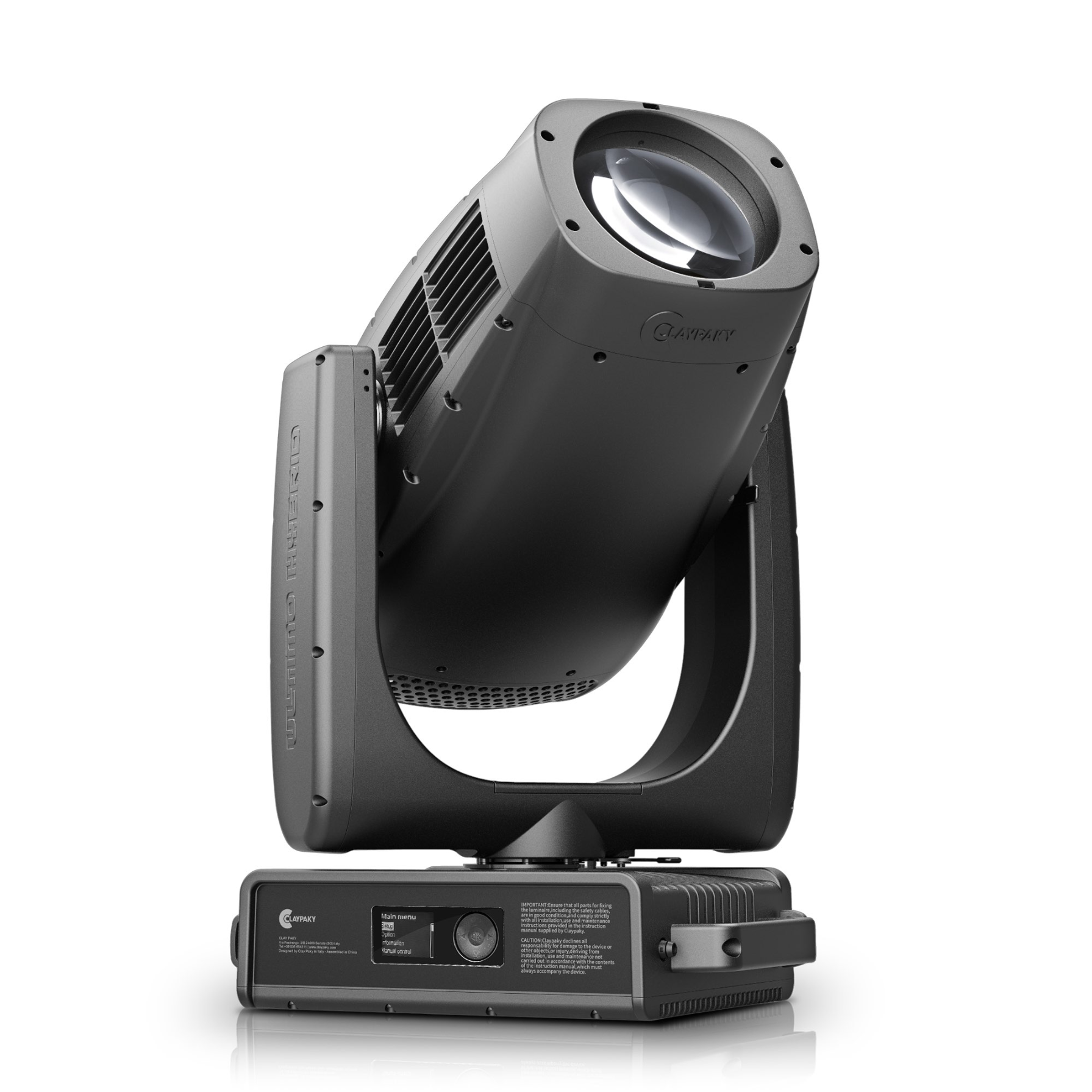

The Claypaky Ultimo Hybrid 550 Short-Arc Moving Head Light combines power and versatility in a compact IP66-rated weather-resistant housing, making it ideal for both indoor and outdoor applications. Equipped with a 550W 6800K short-arc lamp, the fixture delivers up to 19,000 lumens with multiple operating modes including beam, spot, wash, and profile. It features a 3° to 52° spot zoom range and a 2° to 29° beam angle, allowing for precise and adaptable light coverage.
Designed for advanced performance, the fixture offers 16-bit high-resolution dimming with five curves and supports nine dynamic lighting effects. Control is seamless with compatibility across DMX, RDM, Art-Net, sACN, CRMX, and TiMo FX, providing flexibility for both wired and wireless setups. A self-charging battery system and electronic auto-range power supply with active PFC ensure efficient operation. The fixture’s motorized linear zoom enhances creative control, while its durable aluminum and steel construction, forced ventilation with axial fans, and thermally protected power supply support extended use. It includes an IP65-rated ETL powerCON TRUE1 cable, side handles, and an Omega bracket with fast-lock system for easy mounting.
Create Expansive Lighting Visuals
The Ultimo Hybrid is built to deliver high brightness and precision with a 160mm front lens that produces sharp beams and clear projections. Its all-in-one design allows for tightly focused beams, evenly collimated spots, and wide wash coverage within a single fixture. The proprietary Absolute Position system ensures the fixture maintains and recalls its exact positioning for consistent re-aiming and faster setup times.
Nine Dynamic Lighting Effects
Powered by a 550W 6800K lamp with a 4000-hour lifespan, the fixture supports nine effects, including Color, Gobo, Framing, Frost, Iris, Movement, Beam, Rotation, and Dimming. It features CMY color mixing, linear CTO, and a fixed 14 dichroic color wheel. The rotating gobo wheel includes 8 HD indexable gobos, alongside a static 18-gobo wheel across four focal planes. Movement is enabled by 540° pan and 270° tilt with position lock. The framing system uses four blades with ±60° rotation for precise shaping and full blackout. Additional effects include a motorized iris, animation wheel, and two rotating prisms (4- and 8-facet), along with high-resolution dimmer, shutter, and strobe functions.
Flexible Connectivity Options
The fixture supports 5-pin DMX input/output with a 43-channel standard mode for full control of color, movement, and effects. It includes a built-in web server and is fully compatible with CloudIO. With support for DMX, Art-Net, sACN, RDM, and CRMX TiMo FX, the Ultimo Hybrid provides reliable control options for touring, live productions, and permanent installations.
The Claypaky Ultimo Hybrid 550 Short-Arc Moving Head Light combines power and versatility in a compact IP66-rated weather-resistant housing, making it ideal for both indoor and outdoor applications. Equipped with a 550W 6800K short-arc lamp, the fixture delivers up to 19,000 lumens with multiple operating modes including beam, spot, wash, and profile. It features a 3° to 52° spot zoom range and a 2° to 29° beam angle, allowing for precise and adaptable light coverage.
Designed for advanced performance, the fixture offers 16-bit high-resolution dimming with five curves and supports nine dynamic lighting effects. Control is seamless with compatibility across DMX, RDM, Art-Net, sACN, CRMX, and TiMo FX, providing flexibility for both wired and wireless setups. A self-charging battery system and electronic auto-range power supply with active PFC ensure efficient operation. The fixture’s motorized linear zoom enhances creative control, while its durable aluminum and steel construction, forced ventilation with axial fans, and thermally protected power supply support extended use. It includes an IP65-rated ETL powerCON TRUE1 cable, side handles, and an Omega bracket with fast-lock system for easy mounting.
Create Expansive Lighting Visuals
The Ultimo Hybrid is built to deliver high brightness and precision with a 160mm front lens that produces sharp beams and clear projections. Its all-in-one design allows for tightly focused beams, evenly collimated spots, and wide wash coverage within a single fixture. The proprietary Absolute Position system ensures the fixture maintains and recalls its exact positioning for consistent re-aiming and faster setup times.
Nine Dynamic Lighting Effects
Powered by a 550W 6800K lamp with a 4000-hour lifespan, the fixture supports nine effects, including Color, Gobo, Framing, Frost, Iris, Movement, Beam, Rotation, and Dimming. It features CMY color mixing, linear CTO, and a fixed 14 dichroic color wheel. The rotating gobo wheel includes 8 HD indexable gobos, alongside a static 18-gobo wheel across four focal planes. Movement is enabled by 540° pan and 270° tilt with position lock. The framing system uses four blades with ±60° rotation for precise shaping and full blackout. Additional effects include a motorized iris, animation wheel, and two rotating prisms (4- and 8-facet), along with high-resolution dimmer, shutter, and strobe functions.
Flexible Connectivity Options
The fixture supports 5-pin DMX input/output with a 43-channel standard mode for full control of color, movement, and effects. It includes a built-in web server and is fully compatible with CloudIO. With support for DMX, Art-Net, sACN, RDM, and CRMX TiMo FX, the Ultimo Hybrid provides reliable control options for touring, live productions, and permanent installations.
The Claypaky Ultimo Hybrid 550 Short-Arc Moving Head Light combines power and versatility in a compact IP66-rated weather-resistant housing, making it ideal for both indoor and outdoor applications. Equipped with a 550W 6800K short-arc lamp, the fixture delivers up to 19,000 lumens with multiple operating modes including beam, spot, wash, and profile. It features a 3° to 52° spot zoom range and a 2° to 29° beam angle, allowing for precise and adaptable light coverage.
Designed for advanced performance, the fixture offers 16-bit high-resolution dimming with five curves and supports nine dynamic lighting effects. Control is seamless with compatibility across DMX, RDM, Art-Net, sACN, CRMX, and TiMo FX, providing flexibility for both wired and wireless setups. A self-charging battery system and electronic auto-range power supply with active PFC ensure efficient operation. The fixture’s motorized linear zoom enhances creative control, while its durable aluminum and steel construction, forced ventilation with axial fans, and thermally protected power supply support extended use. It includes an IP65-rated ETL powerCON TRUE1 cable, side handles, and an Omega bracket with fast-lock system for easy mounting.
Create Expansive Lighting Visuals
The Ultimo Hybrid is built to deliver high brightness and precision with a 160mm front lens that produces sharp beams and clear projections. Its all-in-one design allows for tightly focused beams, evenly collimated spots, and wide wash coverage within a single fixture. The proprietary Absolute Position system ensures the fixture maintains and recalls its exact positioning for consistent re-aiming and faster setup times.
Nine Dynamic Lighting Effects
Powered by a 550W 6800K lamp with a 4000-hour lifespan, the fixture supports nine effects, including Color, Gobo, Framing, Frost, Iris, Movement, Beam, Rotation, and Dimming. It features CMY color mixing, linear CTO, and a fixed 14 dichroic color wheel. The rotating gobo wheel includes 8 HD indexable gobos, alongside a static 18-gobo wheel across four focal planes. Movement is enabled by 540° pan and 270° tilt with position lock. The framing system uses four blades with ±60° rotation for precise shaping and full blackout. Additional effects include a motorized iris, animation wheel, and two rotating prisms (4- and 8-facet), along with high-resolution dimmer, shutter, and strobe functions.
Flexible Connectivity Options
The fixture supports 5-pin DMX input/output with a 43-channel standard mode for full control of color, movement, and effects. It includes a built-in web server and is fully compatible with CloudIO. With support for DMX, Art-Net, sACN, RDM, and CRMX TiMo FX, the Ultimo Hybrid provides reliable control options for touring, live productions, and permanent installations.
What's in the Box
