Claypaky Volero Wave (Foam Shell): 8x 40w RGBW LED 100-240V 50/60 Hz ETL IP20
SKU: CL3023E411V0S
$6,932.00 USD
Shipping calculated at checkout.
PAY WITH
Couldn't load pickup availability
Key Features
- 8 x 40W RGBW LED engines
- 16-bit RGBW color mixing
- Linear CTC: 2500K–8000K
- 2.9° fixed narrow beam angle
- 220° independent tilt per module
- 24-bit high-resolution dimming
- DMX, RDM, Art-Net, and sACN control
- IP20-rated fixture with foam shell packaging
- What's in the Box
- Content

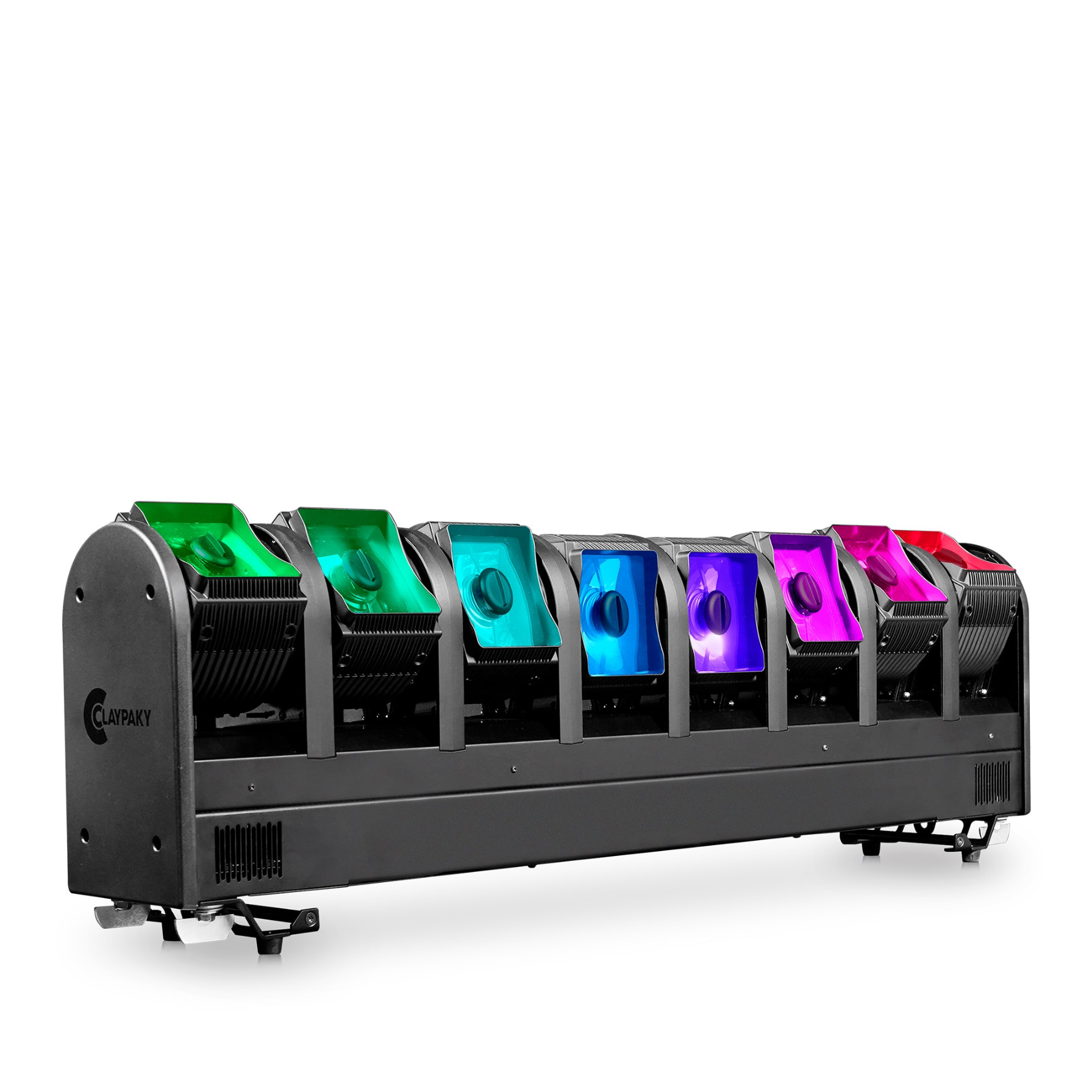

The Claypaky CL3023 Volero Wave RGBW is built with an IP20-rated housing and a mirror-based optical system engineered to deliver higher light intensity and precision output. Designed for small clubs, bars, and live venues, this linear fixture produces striking three-dimensional and volumetric projections. It features eight 40W Osram LEDs, a 2.9° beam angle, and 220° tilt per module, enabling dynamic movement and tight, focused beams. With a 2500–8000K color temperature range and 16-bit RGBW color mixing, it delivers vibrant, consistent color for indoor productions.
The fixture includes a 24-bit high-resolution electronic dimmer for smooth fades and precise control. It supports multiple control protocols including DMX, RDM, Art-Net, and sACN, giving lighting designers flexibility across setups. Power is supplied via an included cable and is compatible with IP65-rated powerCON TRUE1 connectors, while the electronic auto-range power supply with active PFC ensures efficient energy usage. High-speed electronic shutter and strobe effects enhance visual impact, while the eight independently controllable light sources allow for complex effects and motion sequences. The unit can be installed in any orientation and includes Omega brackets with a fast-lock system for quick and secure mounting.
Ideal for Light Projections
Each LED is fitted with top hats to maintain clean, sharp, and collimated beams without unwanted spill. The mirror-based optical system works in combination with the 40W RGBW LEDs to maximize output intensity while maintaining precision. With eight independently moving modules, each capable of 220° tilt, the fixture creates layered, volumetric visuals without loss of brightness at any angle—giving designers full creative control.
Advanced Layer Management
Featuring Claypaky’s Advanced Layer Management system, the fixture allows simultaneous control of up to three layers of effects, including detailed pixel mapping and color adjustments. Combined with the high-speed shutter and strobe, this enables complex and dynamic lighting looks. The 24-bit linear dimmer ensures smooth transitions and accurate intensity control for professional environments.
Three DMX Control Modes
Control is streamlined through 5-pin DMX IN/OUT connections.
Standard Mode offers single-layer 8-bit RGBW control with 20 parameters
Shape RGBW Mode enables dual-layer control with background effects (38 parameters)
Advanced Mode unlocks full three-layer control with 37 parameters
The fixture operates across 23, 24, 29, and 32 channel modes, allowing detailed programming for live performances. It also supports Art-Net, sACN, built-in web server access, and RDM, providing both wired and remote control options. The Pixels Engine mode enables RGB and RGBW pixel-level control for enhanced customization.
Heat Control and Dissipation Functionality
Constructed with a durable aluminum and steel body with plastic covers, the unit is designed for reliable operation within a 14° to 140°F temperature range. It features 1366 BTU/hour heat dissipation (+/-10%), supported by a thermally protected power supply, forced ventilation, and axial fans to maintain performance during extended use.
