ETC Source Four LED Series 3 Lustr X8

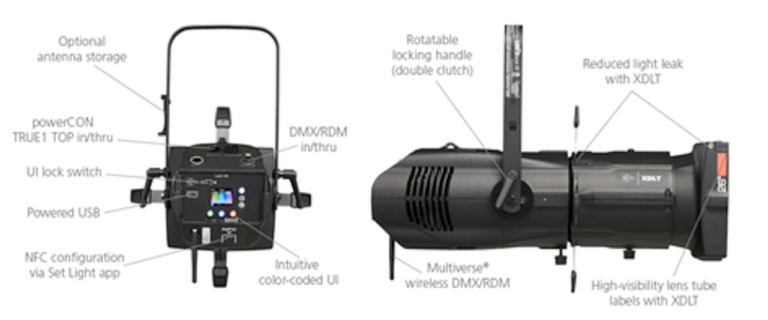

ETC Source 4 LED Series 3 X8 Lustr with XDLT Shutter – Black The ETC Source 4 LED Series 3 X8 Lustr represents the pinnacle of over a decade of research and innovation, inspired by ETC’s 45+ years of dedication to the entertainment lighting industry. This cutting-edge fixture delivers unparalleled brightness and color precision with the Lustr X8 array , offering incredibly nuanced colors that bring your creative vision to life on stage. Equipped with advanced technology, the Source Four LED Series 3 incorporates wireless DMX/RDM functionality through City Theatrical’s Multiverse® protocol , enabling seamless wireless control. Additionally, setup is effortless thanks to NFC configuration via the ETC Set Light app on your mobile device, ensuring quick adjustments and efficient workflows. Whether you're lighting from close range or across vast distances, this fixture provides the brightness , color quality , and control needed for any production. And like all ETC fixtures, it comes backed by an unmatched industry warranty , guaranteeing reliability and performance. With the introduction of the Source Four LED Series 3 , ETC also unveils the next generation of lens tubes: the XDLT (Extra Definition Lens Tubes) . Designed to elevate your Series 3 fixtures, these lens tubes deliver exceptional brightness, even from the farthest throw distances. Featuring reduced light leak , improved pattern projection , and near-zero chromatic aberration , the XDLT is a game-changer for large-scale theatres. (Note: XDLT lens tubes are sold separately.) ETC Source 4 LED Series 3 X8 Lustr – Technical Specifications LED Details LED Type: 90 Lumileds LUXEON® C and CZ Max Lumens (Lustr X8): 10,889 Max Lumens (Daylight HDR): 14,214 Lumens per Watt (Lustr X8): 35 Lumens per Watt (Daylight HDR): 42 L70 Rating: >54,000 hours (time to 70% output) Color Performance Colors Used (Lustr X8): Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo Colors Used (Daylight HDR): Deep Red, Red, Mint, Cyan, Blue, Indigo Color Temperature Range: 1900–10,450 K Calibrated Array: Yes Red Shift: Yes (selectable for enhanced red tones) Optical Performance Beam Angle Range: Swappable lens tubes for adjustable beam angles between 5°–90° Gate Size: 80 mm Aperture Size: 6.25–17.5 inches (depending on lens tube) Pattern Projection: Yes Pattern Size: A or B gobos supported Camera Flicker Control/Hz Range: Yes (5 kHz, 25 kHz) Additional Notes: Compatible with optional LED CYC and Fresnel adapters for expanded versatility. Control Features Input Method: 5-Pin XLR, Multiverse wireless, and NFC (Near Field Communication) Protocols Supported: DMX-512, RDM, City Theatrical Multiverse, NFC Modes: 5 modes available (1–12 channels) RDM Configuration: Yes UI Type: Full-color display for intuitive navigation Local Control: Yes Onboard Presets: 12 customizable presets for quick access Onboard Sequences: Yes Onboard Effects: No FixtureLink: Yes Notes: Powered by a 15-bit virtual dimming engine for ultra-smooth dimming and precise control. Electrical Specifications Voltage Range: 100–240 VAC, 50/60 Hz (universal voltage compatibility) Input Method: AC via Neutrik powerCON TRUE1 TOP connector Inrush Current: 40 A at 120 V (first half-cycle) 80 A at 230 V (first half-cycle) Fixtures Per Circuit: Up to 5 fixtures (link up to 4 via Power Thru connector) TRUE1 Connector Rating: 20 A at 120 V / 60 Hz 16 A at 240 V / 50 Hz Wattage (Typical): Lustr X8: 307 W at 120 V, 305 W at 230 V Daylight HDR: 340 W at 120 V, 330 W at 230 V Current Draw: Lustr X8: 2.6 A at 120 V, 1.35 A at 230 V Daylight HDR: 2.85 A at 120 V, 1.5 A at 230 V Physical Specifications Weight: 19.55 lbs (with barrel attached) IP Rating: IP20 (indoor use only) Key Highlights Advanced LED Technology: Utilizes 90 high-performance Lumileds LUXEON® C and CZ LEDs for exceptional brightness and color accuracy. Versatile Color Palette: Offers two distinct LED arrays—Lustr X8 for nuanced theatrical colors and Daylight HDR for crisp, high-output daylight effects. Customizable Optics: Swappable lens tubes allow for precise beam angle adjustments (5°–90°), making it suitable for everything from tight spots to wide floods. Wireless Innovation: Integrated City Theatrical Multiverse® wireless DMX/RDM and NFC configuration via the ETC Set Light app for seamless setup and control. High Efficiency: Achieves up to 42 lumens per watt in Daylight HDR mode, ensuring energy-efficient performance without compromising output. Longevity: With an L70 rating of over 54,000 hours, this fixture is built to last in demanding environments. Applications The ETC Source 4 LED Series 3 X8 Lustr is ideal for: Theatrical Productions: Delivering rich, dynamic colors and smooth dimming for stage lighting. Broadcast and Film: Minimizing camera flicker with advanced flicker control and precise color temperature adjustments. Large Venues: Providing powerful output and flexible optics for concerts, events, and architectural lighting. With its cutting-edge technology, user-friendly features, and unmatched reliability, the ETC Source 4 LED Series 3 X8 Lustr sets a new standard for professional-grade lighting fixtures. Whether you're lighting a small stage or a massive arena, this fixture ensures exceptional performance and creative flexibility.
