Key Features
- High-output FreeStyle 31 LED panel for professional lighting setups
- Universal voltage compatibility (100-240V AC) for global use
- Energy-efficient LED technology with high-quality color rendering
- Designed for use with Kino Flo controllers and accessories (sold separately)
- Optimized for even light distribution with minimal hotspots
- Compact and lightweight design ideal for studio and on-location shoots
- Compatible with louvers and SnapGrids for enhanced light control (sold separately)
- Ideal for broadcast, film, and photography applications
- Durable construction ensures reliable performance in demanding environments
- Professional-grade lighting solution with enhanced brightness and versatility
Kino Flo 31 LED DMX Overview

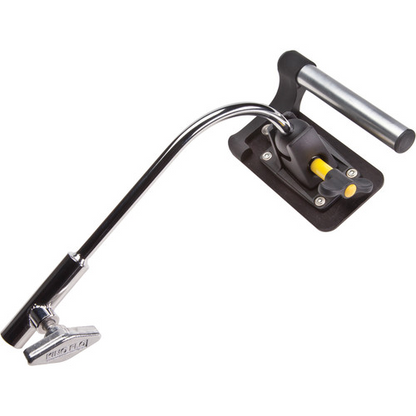

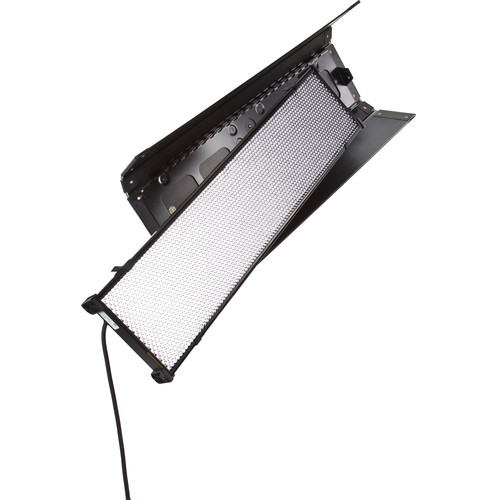

The Kino Flo FreeStyle 31 LED Panel is a compact and versatile light source, measuring 37.5 x 9.5 x 2.5", designed for advanced color adjustments and wired or wireless control. This listing is for the panel only, without the fixture shell. To operate, it requires a separately purchased mount, a FreeStyle DMX controller, and a 100-240 VAC power supply for worldwide compatibility.

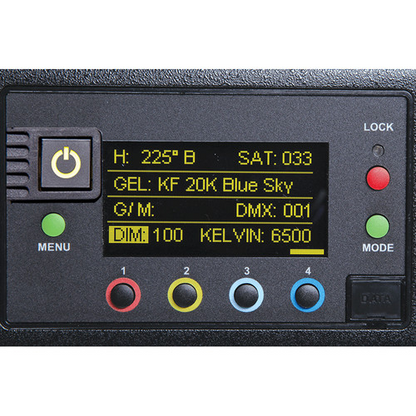

When paired with the optional FreeStyle DMX controller, the panel unlocks a wide range of features:
White Menu: Control 0-100% dimming, color temperature (2700K to 6500K), and green/magenta adjustments.
Color Menu 1: Extends the Kelvin range from 2500K to 9900K, with a "Gel" channel offering presets for light conditions like mercury-vapor and over 100 popular gel filters. It also includes Hue and Saturation channels for selecting specific colors and adjusting their intensity.
Color Menu 2: Provides RGB (Red, Green, Blue) control, enabling users to create any color in the visible spectrum.
The panel supports both wired DMX and wireless DMX via Lumen Radio (with a separate transmitter), offering flexibility for creative lighting setups.
Benefits Using Separately Purchased LED Controller
Kelvin Presets: Dial-in color temperature control from 2700K to 6500K (extended to 2500K-9900K in Color Menu).
RGB Control: Access to RGB presets and color wheels via apps.
Green/Magenta Adjustments: Fine-tune color correction for precise matching.
Hue and Saturation: Full 360-degree color wheel with adjustable intensity.
No Color Shift: Maintains consistent color accuracy during dimming.
High CRI (95): Ensures true-to-life color rendering.
Energy Efficient: Low power consumption with flicker-free, silent operation.

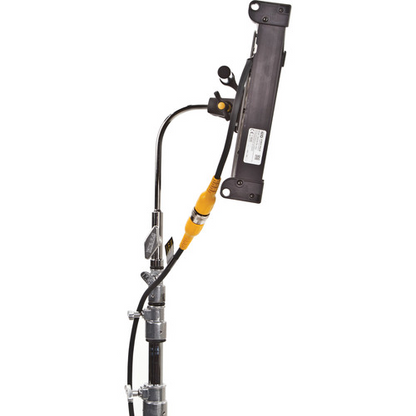

Lightweight and Portable: Slim profile, mountable on stands or handheld.
Global Power Input: Operates on 100-240 VAC or 24 VDC.
