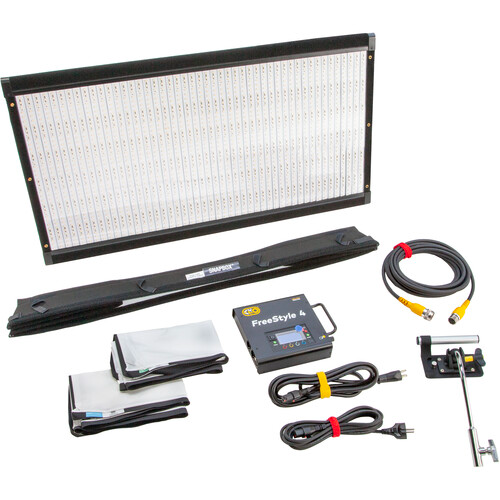

Kino Flo - SYS-FAMAX - FreeStyle Air Max LED DMX System, Univ (Includes FreeStyle Air Max LED Panel, SnapBox w/ 2 x Diffusion, FreeStyle 140 LED DMX Controller, MTP-BG41 Mount, 25ft Head Extension)

Kino Flo FreeStyle Air Max RGB LED Light Panel Overview The Kino Flo FreeStyle Air Max RGB LED Light Panel is a sleek, lightweight lighting solution that combines portability with cutting-edge technology. Designed as a "rigid mat," this panel incorporates Kino Flo’s renowned Color Science LED technology, delivering exceptional color accuracy and versatility. With a Kelvin range expandable from a warm 2500K to an icy 9900K, the FreeStyle Air Max offers advanced color adjustments to meet the demands of any production environment. When paired with a separately available controller, the panel unlocks extended capabilities, including access to RGB controls, gel presets, and dynamic FX modes. Key Features Full RGB Control & Output : The FreeStyle Air Max delivers up to 4950 lux at 3.3' (6500K). A separately purchased controller is required to access features such as RGB adjustments, gel presets, and FX modes for simulating real-world lighting scenarios. Hue and saturation adjustments are also supported. Green-Magenta Adjustment : This feature allows precise color correction to match other light sources or achieve a specific aesthetic. Control Options : The panel supports onboard controls, app-based adjustments, wired DMX, and wireless DMX via LumenRadio. It is compatible with apps like Luminair, which offer predetermined RGB presets and color wheels for added convenience. Global Power Compatibility : Designed for worldwide use, the fixture operates on 100–240 VAC, ensuring reliable performance in any location. Cooling & Durability The FreeStyle Air Max employs a passively cooled design to extend LED lifespan while maintaining consistent color and luminosity over time. Its removable upper rail and quick-access pull-out LED platens make maintenance and repairs effortless, ensuring long-term reliability. Mounting Flexibility This versatile panel can be mounted on a stand using an optional twist-on mount or handheld with the KinoGrip mount (sold separately). Corner bumpers and integrated eyelets provide additional rigging options for overhead or surface mounting. Measuring 39.5 x 22 x 2", the panel is lightweight enough for handheld use yet robust enough for professional applications. Additional Benefits Smooth dimming from 1% to 100% without color shifts Flicker-free and quiet operation for uninterrupted shooting Firmware updates via a mini-USB port Rigid construction ensures component integrity during transport and use Kino Flo FreeStyle 140 LED DMX Controller Overview The Kino Flo FreeStyle 140 LED DMX Controller is a powerful tool designed to maximize the potential of your FreeStyle T44 LED tubes. This controller includes a 120 VAC power cord and can control and power up to four T44 LED tubes simultaneously. Featuring four operational modes, it provides unparalleled control over your lighting setup. Operational Modes White Mode : Adjusts color temperature from 2700K (tungsten) to 6500K (daylight) with dimming and green/magenta controls. Gels/Hue Mode : Expands the color temperature range to 2500–9900K and includes presets for blue/green screens, sodium vapor, mercury vapor, and over 100 classic lighting gels. RGB Mode : Offers precise control over individual red, green, and blue LEDs, compatible with apps featuring RGB presets or color wheels. FX Mode : Provides customizable presets like Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll. Parameters such as rate and intensity can be adjusted for added realism. User-Friendly Interface The integrated display screen shows dimming levels, Kelvin settings, green/magenta shifts, and DMX channel information. Four built-in buttons default to Kelvin presets but can be customized to suit your preferences. The intuitive control knob allows you to adjust dimming, color temperature, green/magenta levels, and DMX addressing with ease. Power & Connectivity The controller supports both wired and wireless DMX and accepts worldwide power inputs (100–240 VAC at 50/60 Hz). It can also be powered by a 24 VDC battery using a 3-pin XLR connector. Kino Flo SnapBox for FreeStyle Air Max Panel Overview The Kino Flo SnapBox is a 42.5 x 23.5" soft light modifier specifically designed for the FreeStyle Air Max Panel. Featuring DoPchoice’s patented self-tightening "Snap" system, this softbox assembles and disassembles in seconds. It attaches securely to the front of the light using touch-fastening straps, ensuring a snug fit. Two included diffusers create a softer, more flattering quality of light, while the supplied carry bag makes storage and transportation effortless. Enhanced Control For greater precision, an optional SnapGrid can be attached to the SnapBox using touch-fastener attachments, providing directional control and minimizing light spill. Kino Flo KinoGrip K41 Twist-On Mount Overview The Kino Flo KinoGrip K41 Twist-On Mount is a practical accessory designed to enhance the portability and usability of your lighting fixtures. Compatible with fixtures featuring Twist-On mating plates, this mount adds a grip handle for easier maneuvering and a wing knob for quick adjustments and locking. Its 5/8" baby receiver ensures compatibility with standard grip equipment. Kino Flo FreeStyle/4 Extension Cable Overview The Kino Flo FreeStyle/4 Extension Cable provides a 25-foot extension between the fixture and its controller, offering greater flexibility for setups such as hanging the fixture or positioning it farther from the control unit.
