Kino Flo - SYS-FT42U - FreeStyle T42 LED DMX System, Univ (Includes FreeStyle T42 Fixture, Louver 90°, FreeStyle 140 FreeStyle 4ft LED Tube (x2)
SKU: SYS-FT42U
$3,050.00 USD
Shipping calculated at checkout.
Free Two Day Shipping
PAY WITH
Couldn't load pickup availability
Key Features
- All-in-one DMX lighting system featuring the FreeStyle T42 LED fixture.
- Includes two 4ft FreeStyle 140 LED tubes for versatile lighting setups.

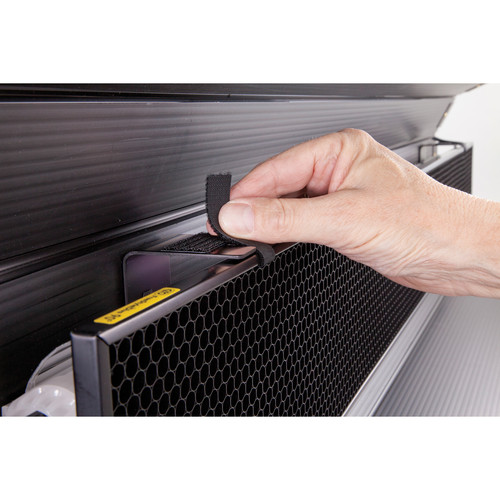

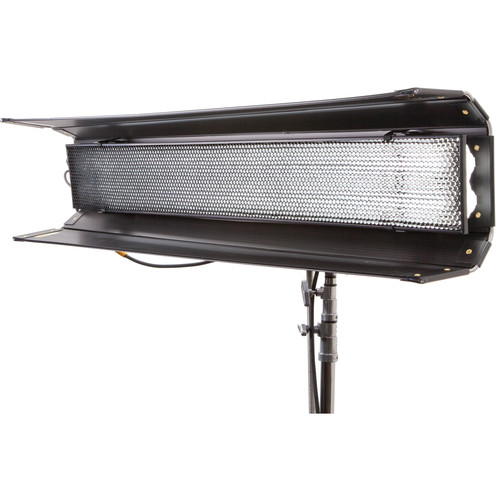

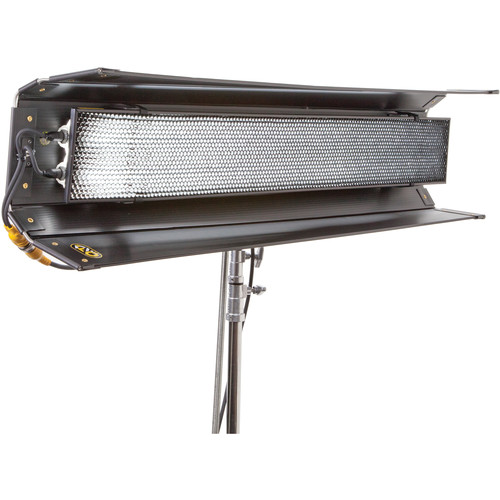

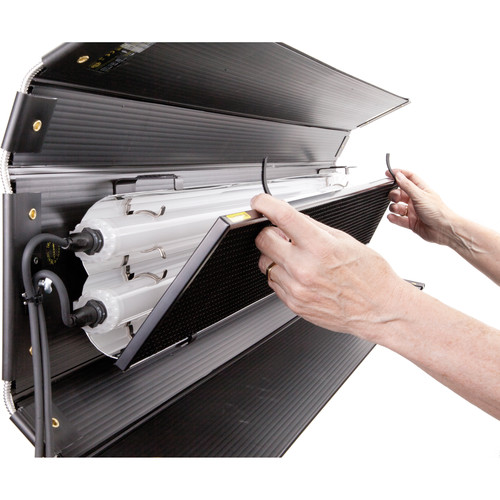

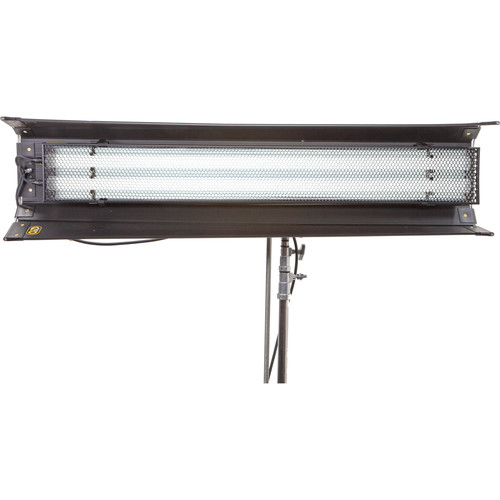

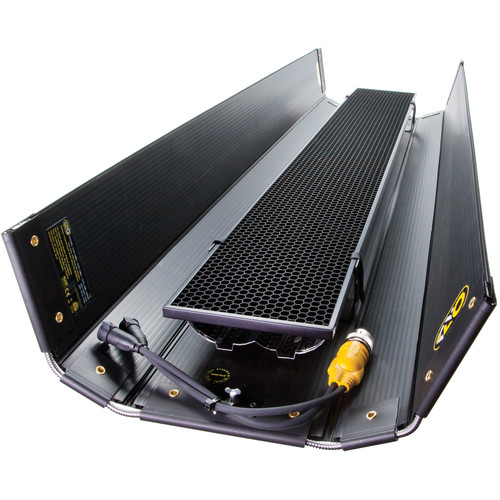

- Equipped with a 90° Louver for precise light control and reduced spill.
- Universal voltage compatibility (100-240V) for global use.
- DMX integration allows for advanced control via lighting consoles or software.
- High color accuracy with adjustable color temperature (2700K-6500K).
- Flicker-free operation ideal for film, broadcast, and photography applications.
- Compact and lightweight design ensures portability and ease of setup.
- Interchangeable LED tubes support future upgrades and customization.
- Backed by Kino Flo's reputation for professional-grade lighting solutions.
Kino Flo FreeStyle T42 LED DMX System Overview
The Kino Flo FreeStyle T42 LED DMX System is a versatile, professional-grade lighting solution designed for filmmakers, photographers, and content creators who demand flexibility, precision, and portability. This comprehensive system includes the FreeStyle T42 LED Fixture , FreeStyle 120 LED DMX Controller , two 4' LED tubes, and essential accessories such as the KinoGrip MTP-KG41 Mount , a 25' head extension cable , US power cable , and a 2-pin Euro power cable . Whether you're working in a studio or on location, this system delivers exceptional color accuracy, adjustable color temperatures, and dynamic effects to meet the demands of modern production environments.
Key Features of the FreeStyle T42 LED DMX System

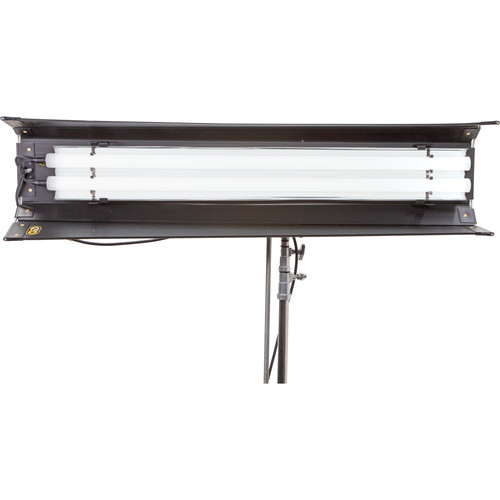

1. FreeStyle T42 LED Fixture

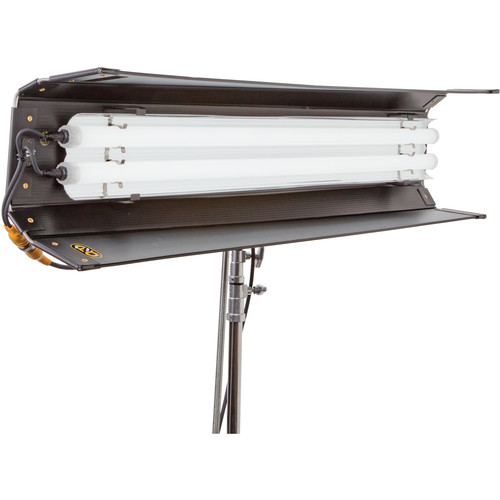

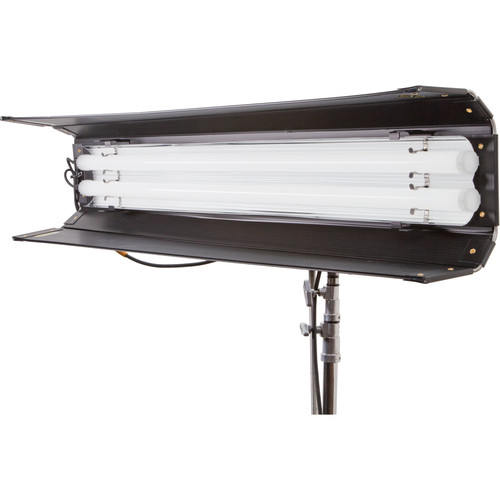

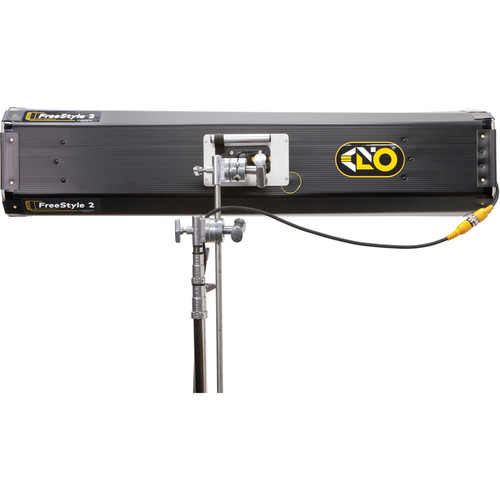

Compact and Lightweight Design: The FreeStyle T42 LED Fixture is slim, portable, and easy to position in tight spaces or handheld with the optional KinoGrip 41K mount .

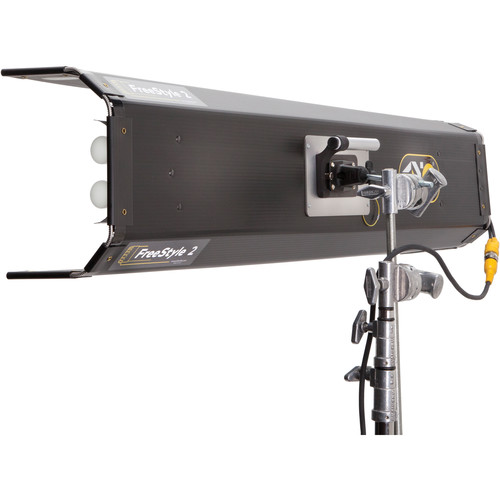

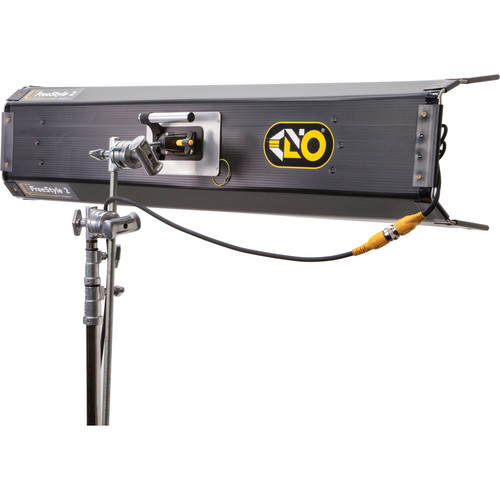

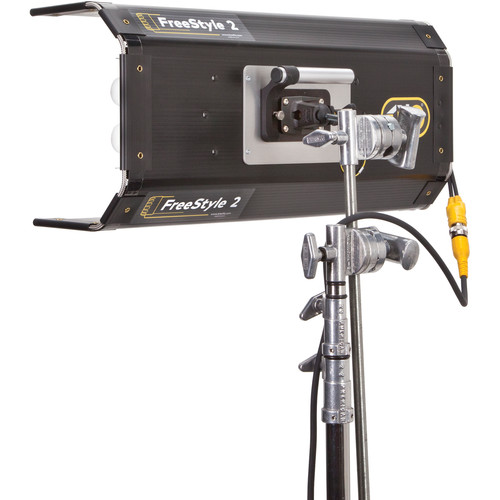

Versatile Mounting Options: Features a twist-on removable KinoGrip center mount compatible with multiple Kino Flo mounting adapters, including light stands.

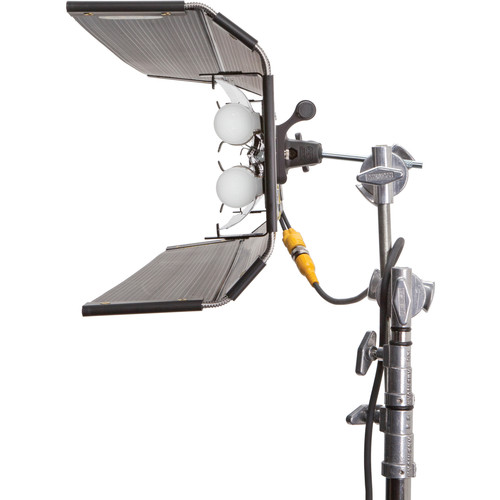

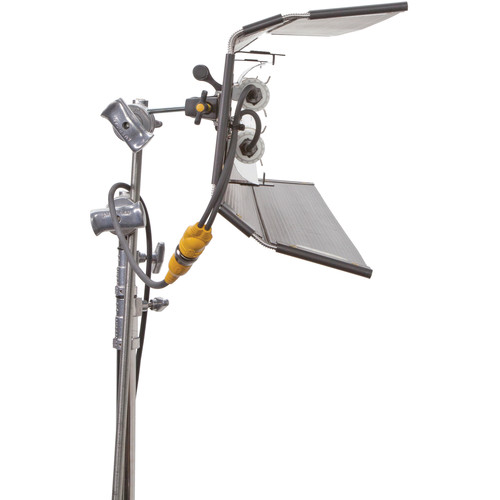

Built-in Barndoors: Integrated barndoors provide precise light control, while the included reflector and 90° louver enhance light-shaping options.
Separate Components Required: Operates with separately purchased LED tubes, head cable, and DMX controller.
Advanced Control Modes: The DMX controller offers four modes—White , Gels/Hue Color , RGB Color , and FX —for extensive creative possibilities:
White Mode: Adjustable color temperature from 2700K to 6500K , with smooth dimming from 1% to 100%.
Gels/Hue Color Mode: Expands the color temperature range to 2500K–9900K , with presets for blue/green screen, sodium vapor, mercury vapor, and over 100 well-known lighting gels.
RGB Color Mode: Provides individual control of red, green, and blue LEDs for custom color creation.
FX Mode: Includes dynamic effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll, with customizable parameters.
Flicker-Free Operation: Ensures quiet, reliable performance even in demanding conditions.
High CRI (95): Delivers accurate and natural color rendition for professional results.

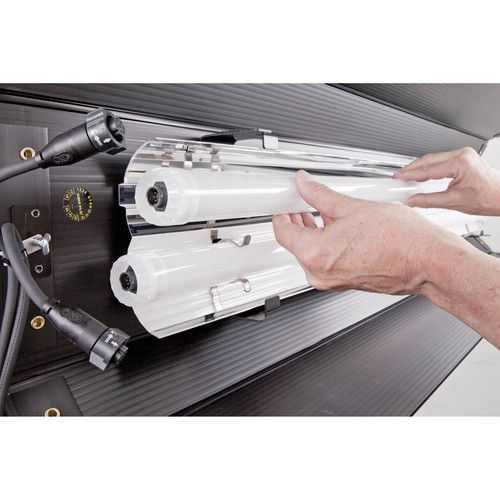

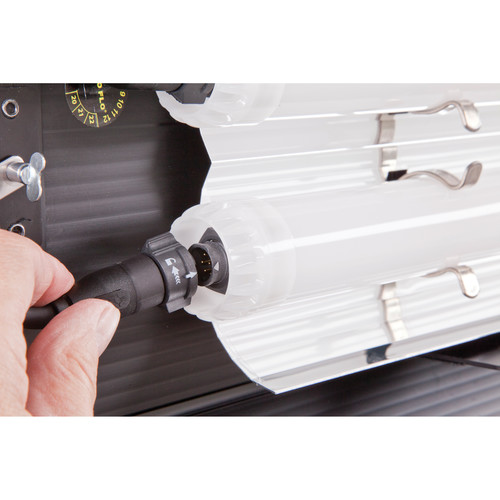

2. Kino Flo LED Tube for FreeStyle T44 Fixture (4')
True Match Technology: Designed to conform to Kino Flo’s True Match white light and RGBW management system , ensuring consistent and accurate lighting.
Soft, Subtle Light Quality: Produces diffused illumination with a CRI of 95 , ideal for high-end video and photography projects.
Powerful Output: When used in a group of four within the fixture and reflector, the output rivals that of a 1000W tungsten soft light .
Aluminum Rail Access Point: Features an aluminum rail on the back for use with alternative mounting accessories.

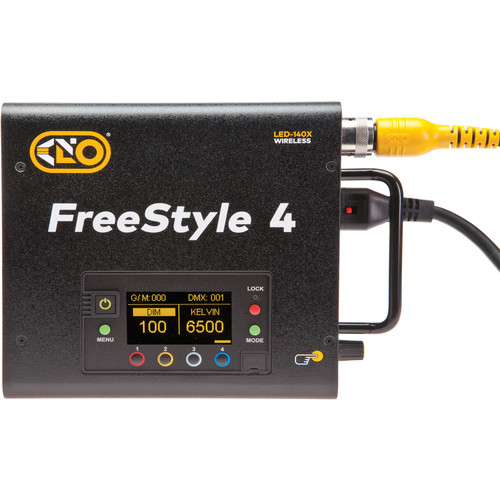

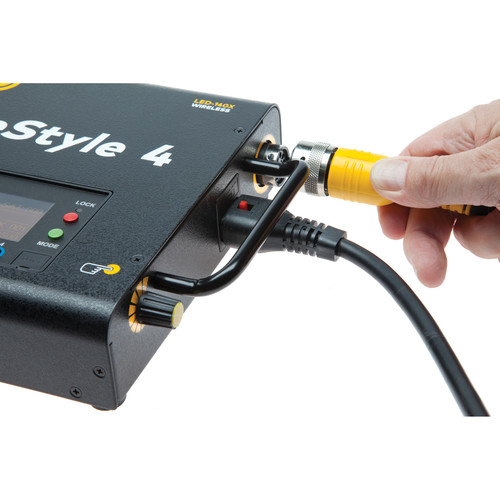

3. Kino Flo FreeStyle 140 LED DMX Controller
Extensive Control Features: Offers near-total control over the output of the LED tubes with four modes: White , Gels/Hue Color , RGB Color , and FX .
White Mode: Adjustable color temperature from 2700K to 6500K , with dimming and green/magenta adjustment.
Gels/Hue Mode: Expands the Kelvin range to 2500K–9900K , with access to background keying presets and over 100 lighting gel looks.
RGB Mode: Provides precise control over individual red, green, and blue LEDs.
FX Mode: Includes customizable presets like candle, fire, TV, police, lightning, paparazzi, pulse, and scroll.
Integrated Display Screen: Shows dimming levels, Kelvin, green/magenta shift, and DMX channel settings.
Customizable Presets: Four built-in buttons default to Kelvin presets but can be customized.
DMX Compatibility: Supports both wired and wireless DMX (via Lumen Radio), enabling remote adjustments from a console.
Universal Power Input: Runs on 100–240 VAC (50/60 Hz) or 18–36 VDC via a 3-pin XLR connector.
Full-Range Dimming: Adjusts brightness from 1% to 100% without color shifts.

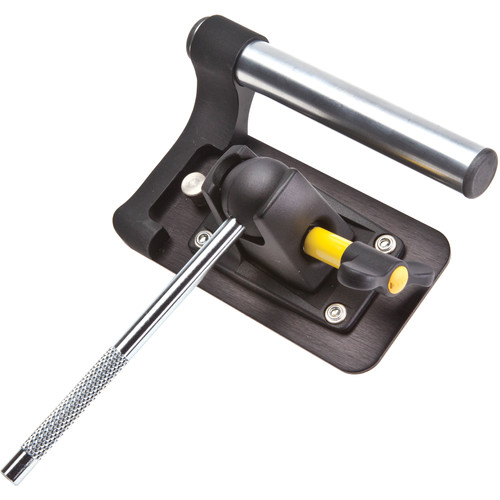

4. Kino Flo KinoGrip MTP-KG41 Mount with 3/8" Pin
Twist-On Ball and Socket Design: Provides secure attachment to grip heads or light stands.
Integrated Handle: Allows for handheld operation, offering additional flexibility during shoots.

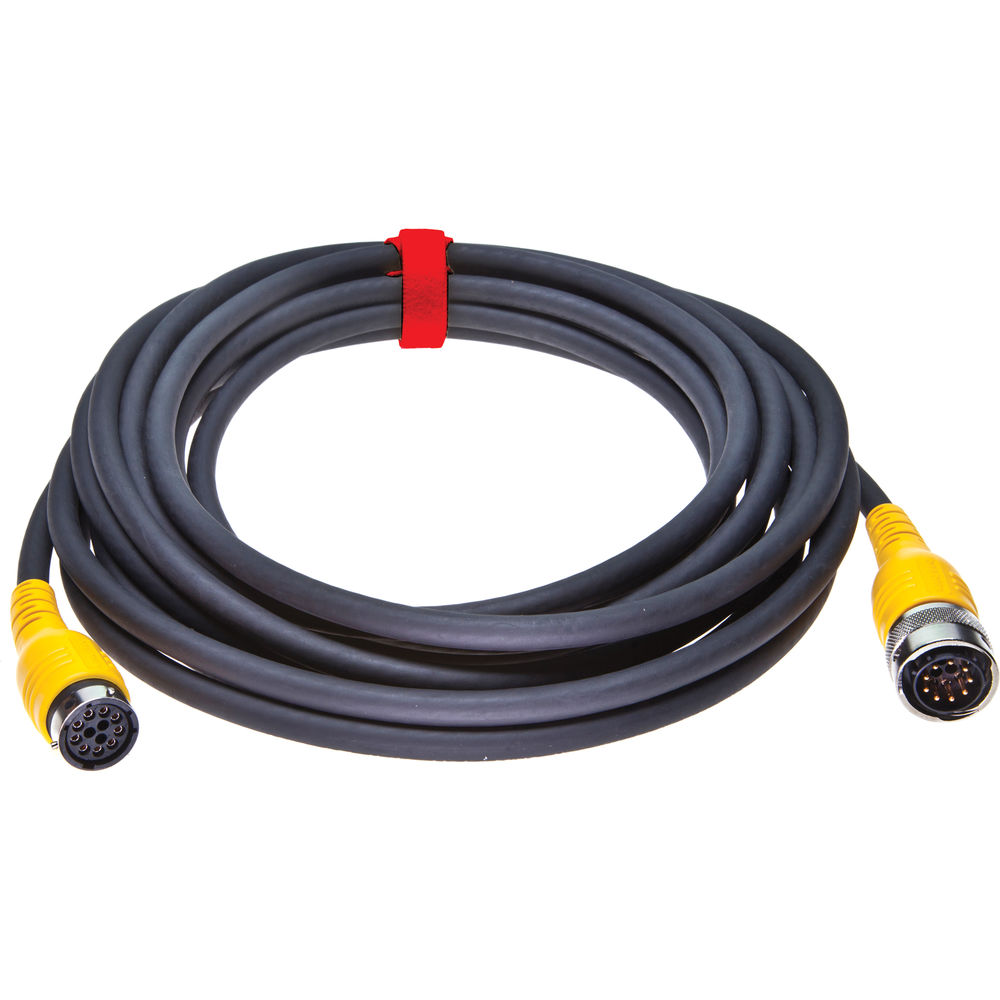

5. Kino Flo Extension Cable 150 for Select LED System (25')
Extended Reach: Adds extra distance between the LED head and its ballast, with the ability to join up to two extensions for a total of 50 feet.
Kino Flo FreeStyle T42 LED DMX System Overview
The Kino Flo FreeStyle T42 LED DMX System is a versatile, professional-grade lighting solution designed for filmmakers, photographers, and content creators who demand flexibility, precision, and portability. This comprehensive system includes the FreeStyle T42 LED Fixture , FreeStyle 120 LED DMX Controller , two 4' LED tubes, and essential accessories such as the KinoGrip MTP-KG41 Mount , a 25' head extension cable , US power cable , and a 2-pin Euro power cable . Whether you're working in a studio or on location, this system delivers exceptional color accuracy, adjustable color temperatures, and dynamic effects to meet the demands of modern production environments.
Key Features of the FreeStyle T42 LED DMX System
1. FreeStyle T42 LED Fixture
Compact and Lightweight Design: The FreeStyle T42 LED Fixture is slim, portable, and easy to position in tight spaces or handheld with the optional KinoGrip 41K mount .
Versatile Mounting Options: Features a twist-on removable KinoGrip center mount compatible with multiple Kino Flo mounting adapters, including light stands.
Built-in Barndoors: Integrated barndoors provide precise light control, while the included reflector and 90° louver enhance light-shaping options.
Separate Components Required: Operates with separately purchased LED tubes, head cable, and DMX controller.
Advanced Control Modes: The DMX controller offers four modes—White , Gels/Hue Color , RGB Color , and FX —for extensive creative possibilities:
White Mode: Adjustable color temperature from 2700K to 6500K , with smooth dimming from 1% to 100%.
Gels/Hue Color Mode: Expands the color temperature range to 2500K–9900K , with presets for blue/green screen, sodium vapor, mercury vapor, and over 100 well-known lighting gels.
RGB Color Mode: Provides individual control of red, green, and blue LEDs for custom color creation.
FX Mode: Includes dynamic effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll, with customizable parameters.
Flicker-Free Operation: Ensures quiet, reliable performance even in demanding conditions.
High CRI (95): Delivers accurate and natural color rendition for professional results.
2. Kino Flo LED Tube for FreeStyle T44 Fixture (4')
True Match Technology: Designed to conform to Kino Flo’s True Match white light and RGBW management system , ensuring consistent and accurate lighting.
Soft, Subtle Light Quality: Produces diffused illumination with a CRI of 95 , ideal for high-end video and photography projects.
Powerful Output: When used in a group of four within the fixture and reflector, the output rivals that of a 1000W tungsten soft light .
Aluminum Rail Access Point: Features an aluminum rail on the back for use with alternative mounting accessories.
3. Kino Flo FreeStyle 140 LED DMX Controller
Extensive Control Features: Offers near-total control over the output of the LED tubes with four modes: White , Gels/Hue Color , RGB Color , and FX .
White Mode: Adjustable color temperature from 2700K to 6500K , with dimming and green/magenta adjustment.
Gels/Hue Mode: Expands the Kelvin range to 2500K–9900K , with access to background keying presets and over 100 lighting gel looks.
RGB Mode: Provides precise control over individual red, green, and blue LEDs.
FX Mode: Includes customizable presets like candle, fire, TV, police, lightning, paparazzi, pulse, and scroll.
Integrated Display Screen: Shows dimming levels, Kelvin, green/magenta shift, and DMX channel settings.
Customizable Presets: Four built-in buttons default to Kelvin presets but can be customized.
DMX Compatibility: Supports both wired and wireless DMX (via Lumen Radio), enabling remote adjustments from a console.
Universal Power Input: Runs on 100–240 VAC (50/60 Hz) or 18–36 VDC via a 3-pin XLR connector.
Full-Range Dimming: Adjusts brightness from 1% to 100% without color shifts.
4. Kino Flo KinoGrip MTP-KG41 Mount with 3/8" Pin
Twist-On Ball and Socket Design: Provides secure attachment to grip heads or light stands.
Integrated Handle: Allows for handheld operation, offering additional flexibility during shoots.
5. Kino Flo Extension Cable 150 for Select LED System (25')
Extended Reach: Adds extra distance between the LED head and its ballast, with the ability to join up to two extensions for a total of 50 feet.
Kino Flo FreeStyle T42 LED DMX System Overview
The Kino Flo FreeStyle T42 LED DMX System is a versatile, professional-grade lighting solution designed for filmmakers, photographers, and content creators who demand flexibility, precision, and portability. This comprehensive system includes the FreeStyle T42 LED Fixture , FreeStyle 120 LED DMX Controller , two 4' LED tubes, and essential accessories such as the KinoGrip MTP-KG41 Mount , a 25' head extension cable , US power cable , and a 2-pin Euro power cable . Whether you're working in a studio or on location, this system delivers exceptional color accuracy, adjustable color temperatures, and dynamic effects to meet the demands of modern production environments.
Key Features of the FreeStyle T42 LED DMX System
1. FreeStyle T42 LED Fixture
Compact and Lightweight Design: The FreeStyle T42 LED Fixture is slim, portable, and easy to position in tight spaces or handheld with the optional KinoGrip 41K mount .
Versatile Mounting Options: Features a twist-on removable KinoGrip center mount compatible with multiple Kino Flo mounting adapters, including light stands.
Built-in Barndoors: Integrated barndoors provide precise light control, while the included reflector and 90° louver enhance light-shaping options.
Separate Components Required: Operates with separately purchased LED tubes, head cable, and DMX controller.
Advanced Control Modes: The DMX controller offers four modes—White , Gels/Hue Color , RGB Color , and FX —for extensive creative possibilities:
White Mode: Adjustable color temperature from 2700K to 6500K , with smooth dimming from 1% to 100%.
Gels/Hue Color Mode: Expands the color temperature range to 2500K–9900K , with presets for blue/green screen, sodium vapor, mercury vapor, and over 100 well-known lighting gels.
RGB Color Mode: Provides individual control of red, green, and blue LEDs for custom color creation.
FX Mode: Includes dynamic effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll, with customizable parameters.
Flicker-Free Operation: Ensures quiet, reliable performance even in demanding conditions.
High CRI (95): Delivers accurate and natural color rendition for professional results.
2. Kino Flo LED Tube for FreeStyle T44 Fixture (4')
True Match Technology: Designed to conform to Kino Flo’s True Match white light and RGBW management system , ensuring consistent and accurate lighting.
Soft, Subtle Light Quality: Produces diffused illumination with a CRI of 95 , ideal for high-end video and photography projects.
Powerful Output: When used in a group of four within the fixture and reflector, the output rivals that of a 1000W tungsten soft light .
Aluminum Rail Access Point: Features an aluminum rail on the back for use with alternative mounting accessories.
3. Kino Flo FreeStyle 140 LED DMX Controller
Extensive Control Features: Offers near-total control over the output of the LED tubes with four modes: White , Gels/Hue Color , RGB Color , and FX .
White Mode: Adjustable color temperature from 2700K to 6500K , with dimming and green/magenta adjustment.
Gels/Hue Mode: Expands the Kelvin range to 2500K–9900K , with access to background keying presets and over 100 lighting gel looks.
RGB Mode: Provides precise control over individual red, green, and blue LEDs.
FX Mode: Includes customizable presets like candle, fire, TV, police, lightning, paparazzi, pulse, and scroll.
Integrated Display Screen: Shows dimming levels, Kelvin, green/magenta shift, and DMX channel settings.
Customizable Presets: Four built-in buttons default to Kelvin presets but can be customized.
DMX Compatibility: Supports both wired and wireless DMX (via Lumen Radio), enabling remote adjustments from a console.
Universal Power Input: Runs on 100–240 VAC (50/60 Hz) or 18–36 VDC via a 3-pin XLR connector.
Full-Range Dimming: Adjusts brightness from 1% to 100% without color shifts.
4. Kino Flo KinoGrip MTP-KG41 Mount with 3/8" Pin
Twist-On Ball and Socket Design: Provides secure attachment to grip heads or light stands.
Integrated Handle: Allows for handheld operation, offering additional flexibility during shoots.
5. Kino Flo Extension Cable 150 for Select LED System (25')
Extended Reach: Adds extra distance between the LED head and its ballast, with the ability to join up to two extensions for a total of 50 feet.

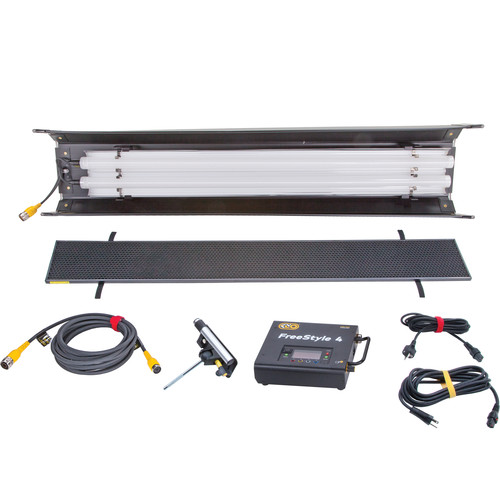

- What's in the Box
