Kino Flo - SYS-FTS4004 - FreeStyle 4ft LED DMX System (4-Tube), Univ (Includes FreeStyle 140 LED DMX Controller, Splitter, 25ft Head Extension (x4),
SKU: SYS-FTS4004
$3,710.00 USD
$3,042.20 USD
Shipping calculated at checkout.
Free Two Day Shipping
PAY WITH
Couldn't load pickup availability
Key Features
- All-in-one DMX lighting system featuring four 4ft FreeStyle LED tubes.
- Includes the FreeStyle 140 LED DMX Controller for advanced lighting control.
- Comes with a splitter and four 25ft head extension cables for flexible rigging.
- Universal voltage compatibility (100-240V) for global use.
- DMX integration enables precise control via lighting consoles or software.
- Adjustable color temperature range (2700K-6500K) ensures accurate color reproduction.
- Flicker-free operation ideal for film, broadcast, and photography applications.
- Interchangeable LED tubes support future upgrades and customization.
- Compact and modular design ensures portability and ease of setup.
- Backed by Kino Flo's reputation for professional-grade lighting solutions.
Kino Flo FreeStyle LED Tube System Overview

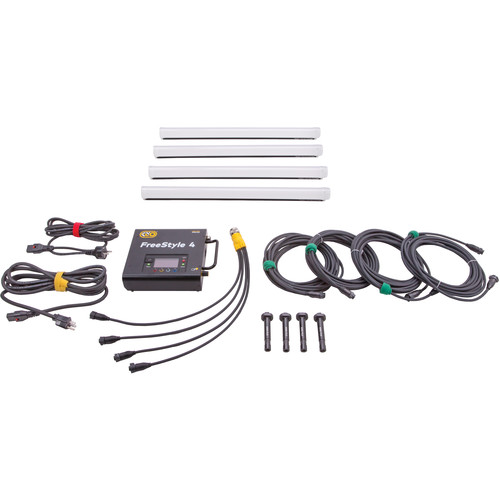

The Kino Flo FreeStyle 4' LED DMX System is a comprehensive lighting solution designed for versatility and precision. This system includes four 4' LED Tubes, the FreeStyle 140 LED DMX Controller, four FreeStyle Tube Mounts with baby pins, four 25' extension cables, and a FreeStyle 4-to-1 Splitter. The LED Tubes feature a built-in aluminum rail system, enabling multiple mounting options, while the included Tube Mounts allow for custom lighting designs.
Key Components
1. Kino Flo LED Tube for FreeStyle T44 Fixture (4')
Specially designed for the T44 fixture, this 4' LED Tube delivers Kino Flo’s True Match white light and RGBW management system. It produces a soft, subtle light quality with a high CRI of 95, ensuring accurate color rendition. When used with the reflector in a group of four, the output rivals that of a 1000W tungsten soft light.
2. Kino Flo FreeStyle Tube Mount for T44/T24 Lights (Baby Pin)
This mount securely holds a single FreeStyle T44/T24 tube without its housing. Typically sold in sets of four, it allows for flexible rigging and custom lighting setups.
3. Kino Flo 25' Head Extension Cable for FreeStyle T44
This extension cable enables you to place the controller at a greater distance from the light head, providing flexibility to hide the controller or protect it from water damage.
4. Kino Flo 4-to-1 Splitter for FreeStyle T44
The splitter features a single connector for the controller that divides into four female connections, allowing the T44's LED tubes to operate without the shell components. Each connector can be paired with a 25' extension cable for added distance.
5. Kino Flo FreeStyle 140 LED DMX Controller
This advanced controller powers and controls up to four T44 LED tubes (tubes not included). It offers four modes for precise lighting control:
White Mode: Tunable color temperature from 2700K to 6500K, with dimming and green/magenta adjustment.
Gels/Hue Mode: Expands the color range from 2500K to 9900K, including presets for blue/green screen, sodium vapor, mercury vapor, and over 100 lighting gels.
RGB Mode: Individual control of red, green, and blue LEDs for creative color mixing.
FX Mode: Customizable presets like Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll.
The controller features an integrated display screen, customizable buttons, and a control knob for adjusting dimming, Kelvin, green/magenta levels, and DMX address. It supports both wired and wireless DMX and accepts worldwide power inputs (100-240 VAC or 18-36 VDC).
Key Features
High CRI (95): Ensures accurate color rendition.
Versatile Mounting: Built-in aluminum rail system and baby pin mounts for flexible setups.
Extended Control: 25' extension cables and 4-to-1 splitter for added flexibility.
Advanced DMX Controller: Four modes for precise lighting control, including white, gels/hue, RGB, and FX.
Customizable Effects: Create dynamic lighting effects with customizable presets.
