LiteGear LC1.00100 Standard Density, Hybrid 12V

SKU: LC1.00100

$199.00 USD
Shipping calculated at checkout.

Usually Ships Within 3-5 Days

Apply 1% Off Coupon ✓

PAY WITH
  • LiteCard Standard Density, Hybrid 12V, designed for high-quality, versatile lighting applications
  • Hybrid technology offers both AC and DC power compatibility for flexible setup options
  • 12V power input for efficient operation with optimal color output and energy usage
  • Standard density provides a balanced mix of brightness and flexibility for various lighting setups
  • Ideal for film, television, live events, and architectural lighting applications
  • Compact and flexible design for easy integration into tight spaces and complex lighting rigs
  • Durable construction ensures reliability and consistent performance in dynamic environments
  • Energy-efficient operation, offering a longer lifespan with minimal power consumption
  • Perfect for both studio and on-location lighting setups
  • An essential tool for lighting professionals looking for high-quality, reliable, and efficient lighting solutions
View full details
  • Content
  • Shipping
  • Returns
  • Warranty

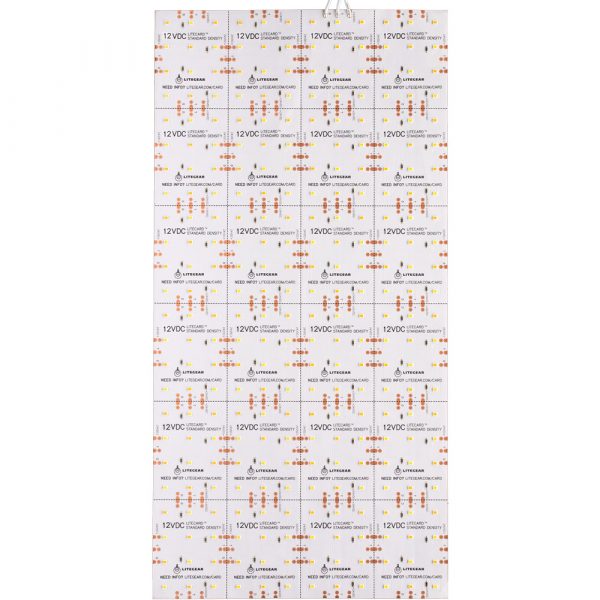

LiteCard features a flexible array of emitters can be cut to your desired size and powered using any Hybrid LiteDimmer. Individual pieces can be cut out and will continue to still operate. The pieces can be soldered back together to make the LiteCard whole again. Cinema Series color space (matches LiteMat and LiteTile). Sections can be tiled together. 50W (25W Tungsten and 25W Daylite).Power: 50W Voltage Input: 12V DC nominal (8-13.5V DC constant voltage) Current: 4.17A CCT: Hybrid 2600K (+/–100K), 6000K (+/–100K) CRI: 95+ (Tungsten), 95+ (Daylite) TLCI: 97 (Tungsten), 96 (Daylite) Beam Angle: 120° Lumens (lm) Whites: TBD (Tungsten), TBD (Daylite) Weight: 0.31 lb. (.14 kg) PCB Dimensions: 240 mm (9.45 in.) x 480 mm (18.90 in.) Card Overall Thickness: 2.2 mm (0.087 in.) Segment Dimensions: 60 mm (.79 in.) x 80 mm (3.14 in.) Segments per Card: 24 Total LED Quantity: 288 LEDs per Cut Segment: 12 LED Spacing: 20 mm (0.79 in.) Dimming Range: 0-100% Operating Temperature: -20°C to +50°C (68°F to +122°F) Connector: Bare Wire Mounting: Adhesive backing LED Lifetime: 50,000 Hrs IP Rating: 20 Certifications: UL Listed (Canada/US), CE Compliant (Europe)
LiteCard features a flexible array of emitters can be cut to your desired size and powered using any Hybrid LiteDimmer. Individual pieces can be cut out and will continue to still operate. The pieces can be soldered back together to make the LiteCard whole again. Cinema Series color space (matches LiteMat and LiteTile). Sections can be tiled together. 50W (25W Tungsten and 25W Daylite).Power: 50W Voltage Input: 12V DC nominal (8-13.5V DC constant voltage) Current: 4.17A CCT: Hybrid 2600K (+/–100K), 6000K (+/–100K) CRI: 95+ (Tungsten), 95+ (Daylite) TLCI: 97 (Tungsten), 96 (Daylite) Beam Angle: 120° Lumens (lm) Whites: TBD (Tungsten), TBD (Daylite) Weight: 0.31 lb. (.14 kg) PCB Dimensions: 240 mm (9.45 in.) x 480 mm (18.90 in.) Card Overall Thickness: 2.2 mm (0.087 in.) Segment Dimensions: 60 mm (.79 in.) x 80 mm (3.14 in.) Segments per Card: 24 Total LED Quantity: 288 LEDs per Cut Segment: 12 LED Spacing: 20 mm (0.79 in.) Dimming Range: 0-100% Operating Temperature: -20°C to +50°C (68°F to +122°F) Connector: Bare Wire Mounting: Adhesive backing LED Lifetime: 50,000 Hrs IP Rating: 20 Certifications: UL Listed (Canada/US), CE Compliant (Europe)
LiteCard features a flexible array of emitters can be cut to your desired size and powered using any Hybrid LiteDimmer. Individual pieces can be cut out and will continue to still operate. The pieces can be soldered back together to make the LiteCard whole again. Cinema Series color space (matches LiteMat and LiteTile). Sections can be tiled together. 50W (25W Tungsten and 25W Daylite).Power: 50W Voltage Input: 12V DC nominal (8-13.5V DC constant voltage) Current: 4.17A CCT: Hybrid 2600K (+/–100K), 6000K (+/–100K) CRI: 95+ (Tungsten), 95+ (Daylite) TLCI: 97 (Tungsten), 96 (Daylite) Beam Angle: 120° Lumens (lm) Whites: TBD (Tungsten), TBD (Daylite) Weight: 0.31 lb. (.14 kg) PCB Dimensions: 240 mm (9.45 in.) x 480 mm (18.90 in.) Card Overall Thickness: 2.2 mm (0.087 in.) Segment Dimensions: 60 mm (.79 in.) x 80 mm (3.14 in.) Segments per Card: 24 Total LED Quantity: 288 LEDs per Cut Segment: 12 LED Spacing: 20 mm (0.79 in.) Dimming Range: 0-100% Operating Temperature: -20°C to +50°C (68°F to +122°F) Connector: Bare Wire Mounting: Adhesive backing LED Lifetime: 50,000 Hrs IP Rating: 20 Certifications: UL Listed (Canada/US), CE Compliant (Europe)

Shipping Policies

Returns and Refunds

​LiteGear warrants its products to be free from defects in material and workmanship under normal use for one year from the original purchase date. For warranty service, customers must obtain a Return Merchandise Authorization (RMA) number by contacting LiteGear's Service Team at info@litegear.com. The product should then be shipped to LiteGear with the RMA number clearly visible on the package. If the issue qualifies as a warranty repair, LiteGear will perform the necessary repairs and cover the return shipping costs. For detailed information, please refer to LiteGear's Terms and Conditions.
