LiteGear LC1.00103 Single Cut, Standard Density, Hybrid, 24V

SKU: LC1.00103

$249.00 USD $224.10 USD
Shipping calculated at checkout.

Usually Ships Within 3-5 Days

PAY WITH
  • LiteCard Single Cut, Standard Density, Hybrid, 24V, designed for versatile and efficient lighting solutions
  • Hybrid technology supports both AC and DC power sources, providing flexibility in various setups
  • 24V power input for enhanced energy efficiency and consistent, high-quality lighting output
  • Standard density provides balanced brightness and flexibility for different lighting applications
  • Single cut design allows for easy integration into custom or compact lighting configurations
  • Perfect for use in film, television, live events, and architectural lighting applications
  • Compact and flexible for use in tight spaces and complex setups
  • Durable construction ensures reliable, long-lasting performance in dynamic environments
  • Energy-efficient operation, reducing power consumption without sacrificing performance
  • An essential tool for professionals seeking flexible, high-quality, and reliable lighting control
View full details

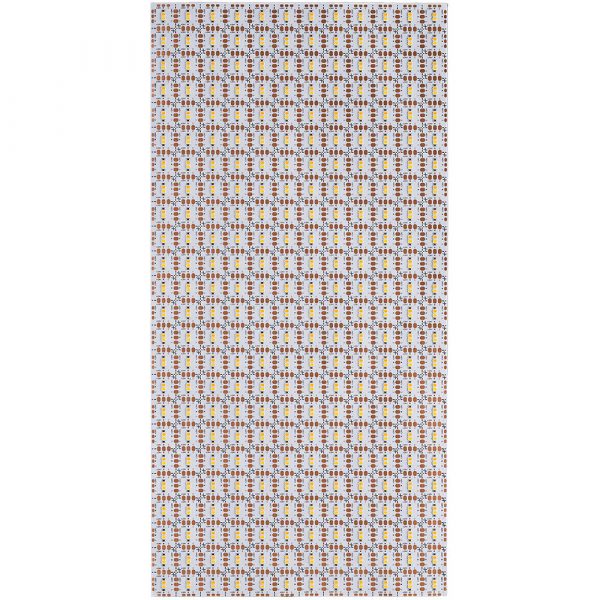

LiteCard features a flexible array of emitters can be cut to your desired size and powered using any Hybrid LiteDimmer. Individual pieces can be cut out and will continue to still operate. The pieces can be soldered back together to make the LiteCard whole again. Cinema Series color space (matches LiteMat and LiteTile. Sections can be tiled together to create large arrays of LiteRibbon quickly. 100W (50W Tungsten and 50W Daylite).Power: 100W Voltage Input: 24V DC nominal (20-25.5V DC constant voltage) Current: 4.17A CCT: Hybrid 2600K (+ / – 100K), 6000K (+/–100K) CRI: 95+ (Daylite), 95+ (Tungsten) TLCI: 95 (Daylite), 97 (Tungsten) Beam Angle: 120° Lumens (lm) Whites: TBD (Tungsten), TBD (Daylite) Weight: 0.43 lb. (.16 kg) PCB Dimensions: 240 mm (9.45 in.) x 480 mm (18.90 in.) Card Overall Thickness: 2.2 mm (0.087 in.) Segment Dimensions: 20 mm (1.96 in.) x 20 mm (.79 in.) Segments per Card: 288 Total LED Quantity: 576 LEDs per Cut Segment: 2 LED Spacing: 20 mm (0.79 in.) Dimming Range: 0-100% Operating Temperature: -20°C to +50°C (68°F to +122°F) Connector: Bare Wire Mounting: Adhesive backing LED Lifetime: 50,000 Hrs IP Rating: 20 Certifications: UL Listed (Canada/US), CE Compliant (Europe)
LiteCard features a flexible array of emitters can be cut to your desired size and powered using any Hybrid LiteDimmer. Individual pieces can be cut out and will continue to still operate. The pieces can be soldered back together to make the LiteCard whole again. Cinema Series color space (matches LiteMat and LiteTile. Sections can be tiled together to create large arrays of LiteRibbon quickly. 100W (50W Tungsten and 50W Daylite).Power: 100W Voltage Input: 24V DC nominal (20-25.5V DC constant voltage) Current: 4.17A CCT: Hybrid 2600K (+ / – 100K), 6000K (+/–100K) CRI: 95+ (Daylite), 95+ (Tungsten) TLCI: 95 (Daylite), 97 (Tungsten) Beam Angle: 120° Lumens (lm) Whites: TBD (Tungsten), TBD (Daylite) Weight: 0.43 lb. (.16 kg) PCB Dimensions: 240 mm (9.45 in.) x 480 mm (18.90 in.) Card Overall Thickness: 2.2 mm (0.087 in.) Segment Dimensions: 20 mm (1.96 in.) x 20 mm (.79 in.) Segments per Card: 288 Total LED Quantity: 576 LEDs per Cut Segment: 2 LED Spacing: 20 mm (0.79 in.) Dimming Range: 0-100% Operating Temperature: -20°C to +50°C (68°F to +122°F) Connector: Bare Wire Mounting: Adhesive backing LED Lifetime: 50,000 Hrs IP Rating: 20 Certifications: UL Listed (Canada/US), CE Compliant (Europe)
LiteCard features a flexible array of emitters can be cut to your desired size and powered using any Hybrid LiteDimmer. Individual pieces can be cut out and will continue to still operate. The pieces can be soldered back together to make the LiteCard whole again. Cinema Series color space (matches LiteMat and LiteTile. Sections can be tiled together to create large arrays of LiteRibbon quickly. 100W (50W Tungsten and 50W Daylite).Power: 100W Voltage Input: 24V DC nominal (20-25.5V DC constant voltage) Current: 4.17A CCT: Hybrid 2600K (+ / – 100K), 6000K (+/–100K) CRI: 95+ (Daylite), 95+ (Tungsten) TLCI: 95 (Daylite), 97 (Tungsten) Beam Angle: 120° Lumens (lm) Whites: TBD (Tungsten), TBD (Daylite) Weight: 0.43 lb. (.16 kg) PCB Dimensions: 240 mm (9.45 in.) x 480 mm (18.90 in.) Card Overall Thickness: 2.2 mm (0.087 in.) Segment Dimensions: 20 mm (1.96 in.) x 20 mm (.79 in.) Segments per Card: 288 Total LED Quantity: 576 LEDs per Cut Segment: 2 LED Spacing: 20 mm (0.79 in.) Dimming Range: 0-100% Operating Temperature: -20°C to +50°C (68°F to +122°F) Connector: Bare Wire Mounting: Adhesive backing LED Lifetime: 50,000 Hrs IP Rating: 20 Certifications: UL Listed (Canada/US), CE Compliant (Europe)
