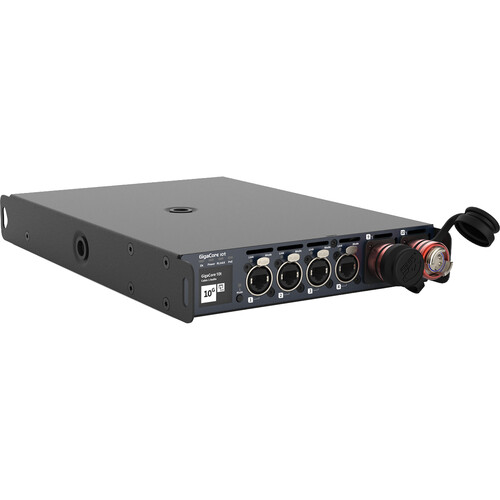

Luminex GigaCore 10t -10G-(Fiberfox 4ch MMF + PoE++)

Key Features

• 10-port 10 Gigabit Ethernet switch — Luminex GigaCore 10t-10G (Fiberfox 4-channel multimode fiber + PoE++)
• 2× rugged 4-channel Fiberfox MMF fiber uplinks (10 Gb backbone) + 8× EtherCON copper ports (1 Gb each) — fiber backbone with copper port access for devices :contentReference[oaicite:1]{index=1}
• PoE++ on all copper ports — supports 802.3af/at/bt, powering IP cameras, loudspeakers, network nodes and other PoE devices directly from the switch :contentReference[oaicite:2]{index=2}
• Out-of-the-box support for major AV/media protocols — including Dante, AES67/RAVENNA, ST-2110, sACN, ArtNet, NDI, AVB/MILAN, IPMX/MA-Net — ideal for converged lighting, audio, video, intercom and data networks :contentReference[oaicite:10]{index=10}
• Pre-configured QoS/DiffServ, IGMP (v1/v2/v3) + IGMP-snooping, VLAN / port-group support, link-aggregation — optimized for stable multicast and heavy AV/data traffic flow :contentReference[oaicite:11]{index=11}
• Built-in AV Web UI + optional network-wide management (via Araneo) — enables quick VLAN, QoS, port-group, PoE and redundancy configuration & monitoring :contentReference[oaicite:13]{index=13}
• Automatic link-redundancy via built-in RLinkX (ring-topology support) — ensures backup links for reliability in live events, touring or mission-critical installs :contentReference[oaicite:15]{index=15}
• Compact half-rack (19″ 1U) all-metal chassis with touring-grade rugged connectors — robust, road-case ready build, suitable for rack or truss mounting and frequent setup/tear-down environments :contentReference[oaicite:16]{index=16}
