Luminex GigaCore 10t -10G-(NeutrikQUAD MMF + PoE++)

Key Features

• 10-port 10 Gigabit Ethernet switch — Luminex GigaCore 10t-10G (Neutrik QUAD MMF + PoE++)

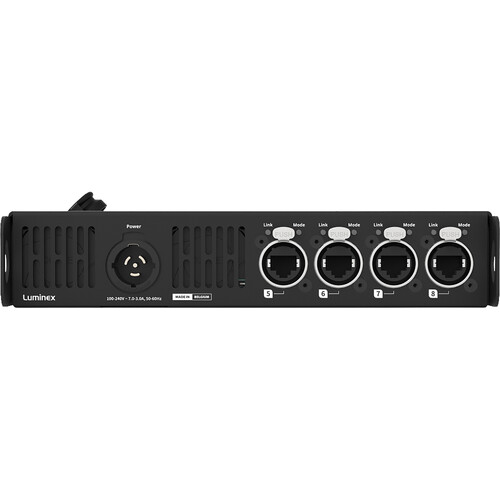

• 2× rugged Neutrik QUAD multimode-fiber ports (10 Gb each) + 8× EtherCON copper ports (1 Gb each) — fiber backbone + copper access for devices :contentReference[oaicite:1]{index=1}
• PoE++ on **all** copper ports — supports 802.3af/at/bt to power PoE devices like IP cameras, loudspeakers, network nodes directly from the switch :contentReference[oaicite:2]{index=2}
• Out-of-the-box support for major AV networking protocols: Dante, AES67/RAVENNA, NDI, sACN, ST‑2110, AVB/MILAN, IPMX/MA‑Net — ready for converged AV/audio/video/light networks :contentReference[oaicite:12]{index=12}
• Pre-configured QoS / DiffServ, IGMP (v1/v2/v3) + IGMP-snooping, VLAN support, and link-aggregation (MultiLinkX) — ensures stable multicast and real-time media traffic flow :contentReference[oaicite:13]{index=13}
• Built-in web-UI + optional network-wide management via Araneo — fast VLAN, QoS, device grouping, PoE and redundancy configuration/monitoring :contentReference[oaicite:15]{index=15}
• Automatic link-redundancy with RLinkX (ring-topology support) — seamless failover for live events or mission-critical installs :contentReference[oaicite:17]{index=17}

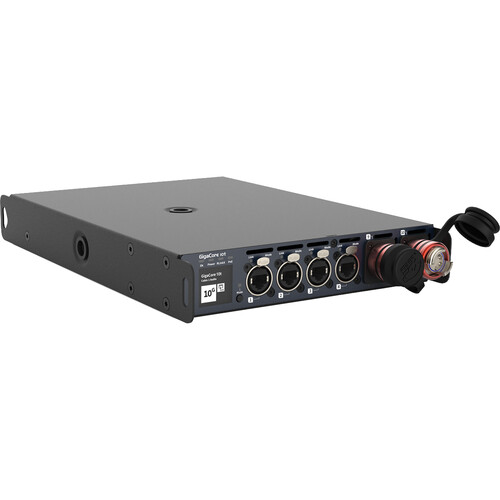

• Rugged half-rack 19″ 1U metal chassis — compact, tour-grade build with quiet speed-controlled fans; ideal for rack or truss mounting and frequent load-in/load-out scenarios :contentReference[oaicite:18]{index=18}
