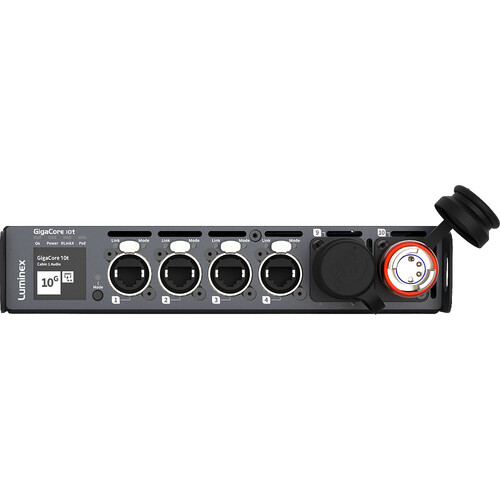

Luminex GigaCore 10t -10G- (NeutrikQUAD SMF + PoE++)

Key Features

• 10-port 10 Gigabit Ethernet switch — :contentReference[oaicite:0]{index=0} GigaCore 10t-10G (Neutrik QUAD SMF + PoE++)
• 2× Neutrik QUAD single-mode fiber ports (10 Gb each) + 8× Rugged EtherCON copper ports (1 Gb each) — fiber backbone plus copper access for devices
• PoE++ on all copper ports — supplies power to IP cameras, PoE loudspeakers, network nodes and other devices directly from the switch
• Fully AV-ready: out-of-the-box support for major AV/media protocols — Dante, AES67/RAVENNA, NDI, ST-2110, AVB/MILAN, sACN, ArtNet, IPMX/MA-Net, etc.
• Pre-configured QoS / DiffServ, IGMP (v1/v2/v3) + IGMP-snooping, VLANs and link-aggregation (MultiLinkX) — optimized for stable multicast, audio/video/light/data traffic
• Built-in Web UI + optional network-wide management via Araneo — fast setup of VLANs, QoS, port-groups, PoE control, redundancy and monitoring
• Automatic link redundancy with RLinkX (ring-topology support) — provides fallback paths to ensure reliable performance in touring or live-event environments
• Compact half-rack (19″ 1U) all-metal chassis with rugged connectors — tour-grade build suitable for frequent rigging, road-cases, rack or truss mounting
