Luminex GigaCore 16t (1Gb) - 16x1G - PoE++

Key Features

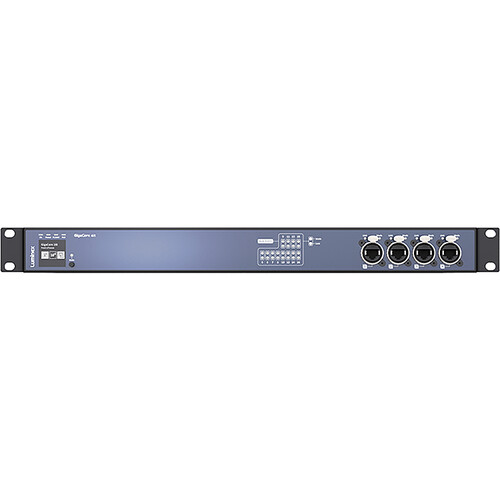

• 16-port managed 1 Gb Ethernet switch — Luminex GigaCore 16t-1G-PoE++ (model LU0100097-1G-P500)

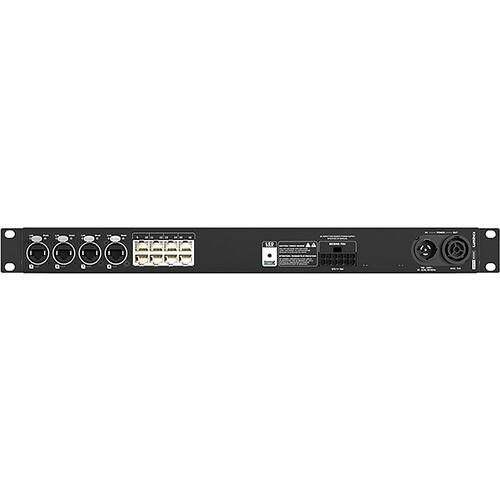

• 8× rugged EtherCON copper ports + 8× standard RJ45 copper ports — total 16 × 1 Gb ports for maximum flexibility :contentReference[oaicite:1]{index=1}
• PoE++ on **all** copper ports — up to 90 W per port, total PoE power budget up to 500 W (standalone) or 1000 W with optional redundant PSU :contentReference[oaicite:2]{index=2}
• Pre-configured for pro-AV protocols: Dante, AES67, NDI, sACN, ArtNet, AVB/MILAN, PTPv2 — ideal for converged audio/video/light networks :contentReference[oaicite:3]{index=3}
• Built-in Web UI + optional network-wide management via Araneo — quick setup of VLANs, QoS, port groups, PoE control and monitoring :contentReference[oaicite:5]{index=5}
• Supports IGMP (v1/2/3), IGMP snooping, jumbo frames, link aggregation (MultiLinkX) and RLinkX redundancy for stable, multicast-ready network backbone :contentReference[oaicite:6]{index=6}
• Rugged metal housing, rack-mount ready 19" 1U form factor — designed for touring and frequent setup/teardown :contentReference[oaicite:7]{index=7}
• Speed-controlled dual-fan cooling — ensures reliable, quiet operation even under heavy PoE load and suitable for theaters, studios and live events :contentReference[oaicite:8]{index=8}
