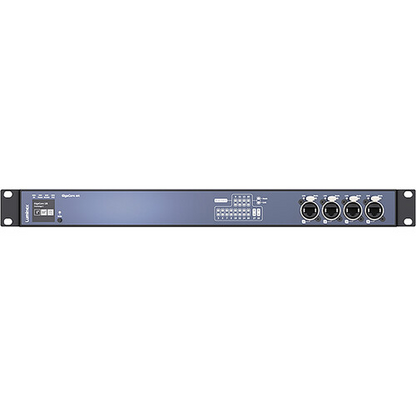

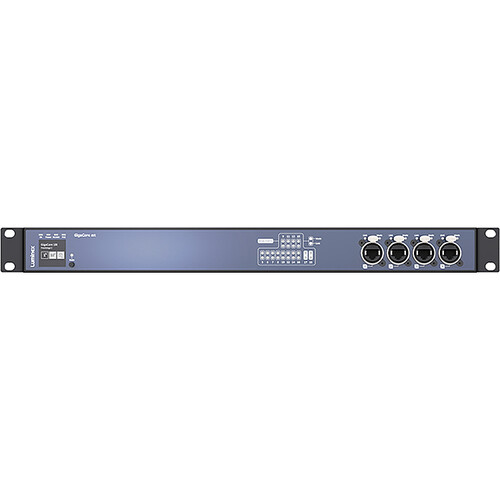

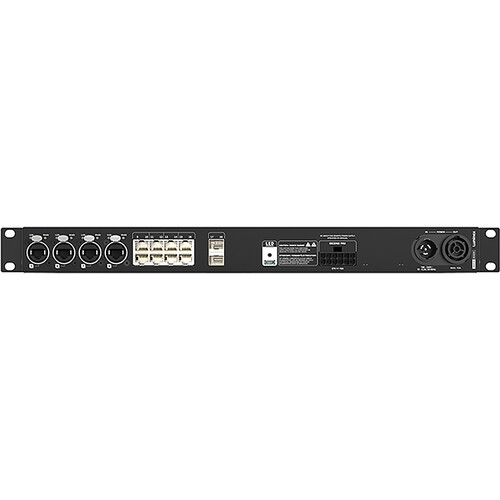

Luminex GigaCore 18t (10Gb) -16x1G - 2x10G(SFP+) - PoE++

Key Features

• 16× 1 Gb copper ports + 2× 10 Gb SFP+ fiber ports — :contentReference[oaicite:0]{index=0} GigaCore 18t-10G delivers a high-speed fiber backbone with flexible copper device connectivity
• Full PoE++ (802.3af/at/bt) on all copper ports — powers PoE devices (cameras, speakers, network nodes, etc.) directly from switch
• Up to 500 W total PoE budget (stand-alone) — capable of powering multiple high-draw devices simultaneously; expandable with optional redundant PSU
• High switching throughput (~72 Gbps) with jumbo-frame support (MTU up to 12000), large MAC table (16,384 entries) — robust for dense AV/data networks
• Pre-validated for pro-AV / media protocols out-of-the-box — supports Dante, AES67/RAVENNA, NDI, ST-2110, AVB/MILAN, sACN, ArtNet and more for converged audio/video/lighting networks
• Built-in Web UI + optional network-wide management (e.g. via Araneo) — simplifies VLAN, QoS, port-group, PoE setup and monitoring for live or permanent installations
• Supports IGMP (v1/v2/v3), IGMP-snooping, VLANs, link-aggregation and redundancy (e.g. RLinkX) — ensures stable multicast, low-latency and reliable network traffic for AV applications
• Tour-grade 1U all-metal chassis with EtherCON + RJ45 connectors, rack-mountable and rugged — built for frequent rigging, touring, studios, theaters, and fixed installs
