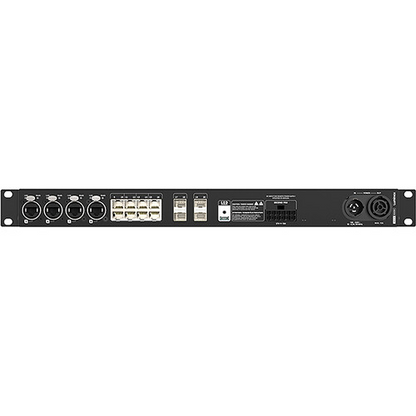

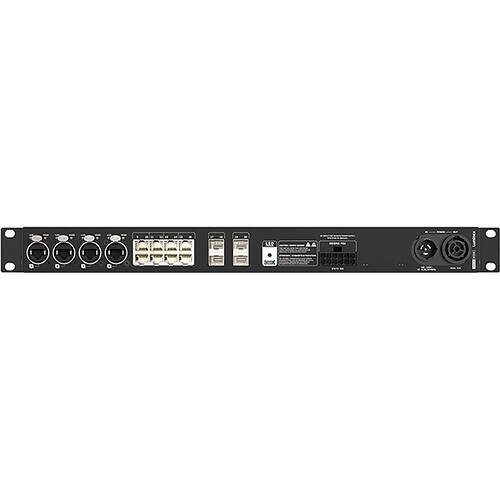

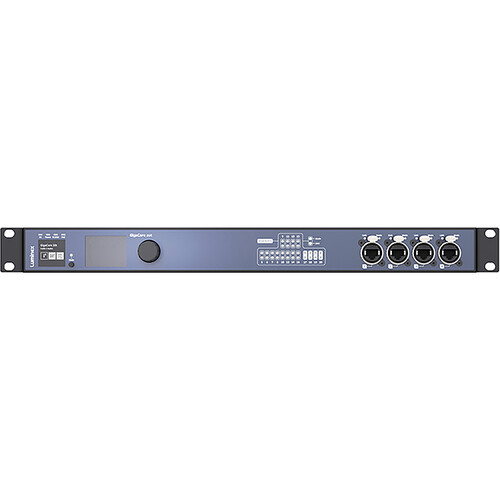

Luminex GigaCore 20t (10Gb) -16x1G - 4x10G(SFP+)

Key Features

• 16× 1 Gb copper ports (8× rugged EtherCON + 8× RJ45) for flexible device connectivity + 4× 10 Gb SFP+ fiber ports for high-bandwidth backbone — Luminex GigaCore 20t (10G, model LU0100080-10G) :contentReference[oaicite:2]{index=2}
• 10 Gb fiber uplinks enable converged AV networks (lighting, audio, video, intercom, data) on the same infrastructure with high throughput and low latency :contentReference[oaicite:3]{index=3}
• Optional PoE++ on all copper ports — powers IP devices such as cameras, PoE speakers, network nodes directly from the switch :contentReference[oaicite:4]{index=4}
• Non-blocking switching capacity of 168 Gb/s, with jumbo-frame support (MTU up to 12,000 bytes), large MAC table, IGMP (v1/v2/v3) + IGMP-snooping, link-aggregation & redundancy support — ideal for heavy AV/data traffic and multicast environments :contentReference[oaicite:5]{index=5}
• Pre-validated for pro-AV/media protocols (e.g. Dante, AES67/RAVENNA, NDI, sACN, AVB/MILAN, etc.) — ready out-of-the-box for converged lighting, video, audio and data networks used in live, studio or touring setups :contentReference[oaicite:12]{index=12}
• Configurable via built-in Web UI and network-wide management with Araneo — easy VLAN/groups, port-grouping, QoS, link-trunking and monitoring for large or complex networks :contentReference[oaicite:14]{index=14}
• Rugged all-metal rack-mount chassis (1U, 19″) with speed-controlled fans — designed for touring, frequent setup/tear-down and reliable long-term operation in demanding AV environments :contentReference[oaicite:15]{index=15}
• RLinkX link-redundancy & trunking support — ensures network resilience and uptime, even in live-event or mission-critical deployments with high-availability requirements :contentReference[oaicite:16]{index=16}
