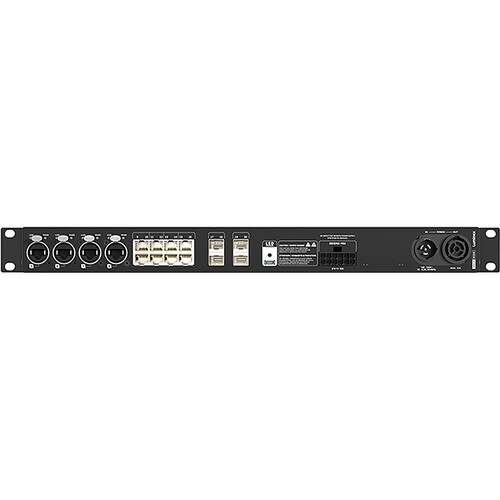

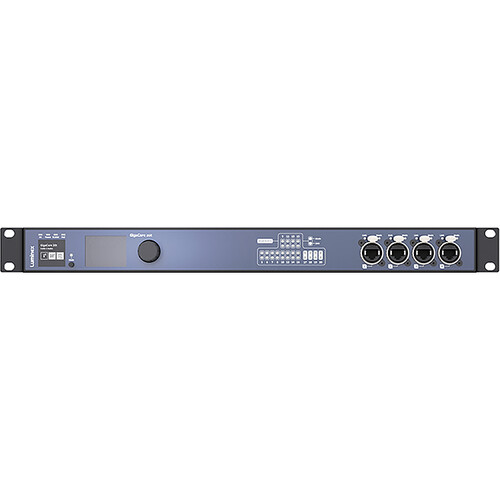

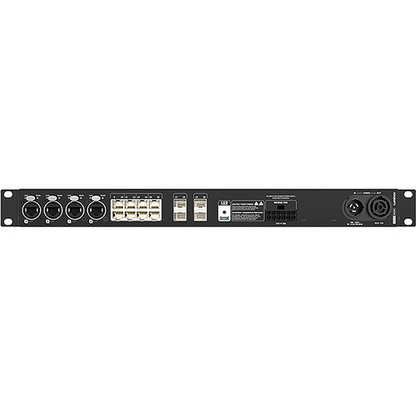

Luminex GigaCore 20t (10Gb) -16x1G - 4x10G(SFP+) - PoE++

Key Features

• 16× 1 Gb copper ports (EtherCON + RJ45) + 4× 10 Gb SFP+ fiber ports — hybrid copper + fiber backbone for flexible connectivity
• Full PoE++ on all copper ports — powers PoE devices (IP cameras, network nodes, speakers, etc.) directly from switch
• Non-blocking switching capacity ~168 Gb/s with jumbo-frame support (MTU up to 12000) and large MAC table — handles dense AV/data traffic reliably
• Pre-validated support for pro-AV/media protocols (e.g. Dante, AES67/RAVENNA, NDI, ST-2110, AVB/MILAN, sACN, ArtNet) — ideal for converged audio/video/light/data networks
• Supports IGMP (v1/v2/v3) + IGMP-snooping, VLANs, link-aggregation & redundancy (e.g. via RLinkX) — optimized for multicast and stable AV/data streaming
• Configurable via built-in Web UI + network-wide management (e.g. Araneo) — VLANs, port-groups, QoS, PoE and monitoring managed easily
• Tour-grade 1U all-metal rack-mount chassis with speed-controlled fans — robust build for install, touring, studios or live events
• High-capacity PoE budget — supports multiple power-hungry devices simultaneously while maintaining 10 Gb backbone performance
