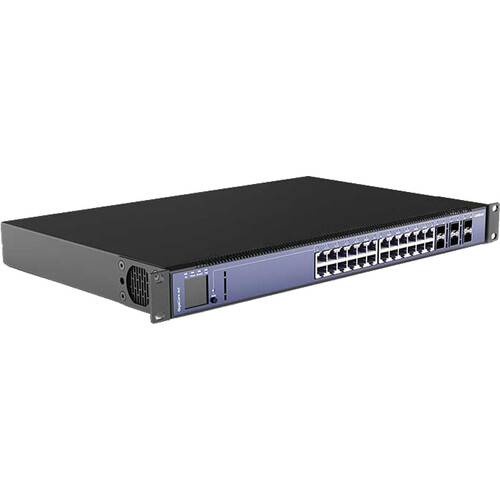

Luminex GigaCore 30i (10Gb) -24x1G - 6x10G(SFP+)

Key Features

• 24× 1 Gb RJ45 copper ports + 6× 10 Gb SFP+ fiber ports — Luminex GigaCore 30i (10G, model LU0100077-10-1S1) offers flexible device connections and high-speed backbone links. :contentReference[oaicite:2]{index=2}
• Optional PoE++ on all copper ports — powers IP cameras, speakers, network nodes and other PoE devices directly from the switch. :contentReference[oaicite:3]{index=3}
• Total PoE power budget up to 1000 W — supports many high-draw PoE devices simultaneously in large installations. :contentReference[oaicite:4]{index=4}
• 10 Gb backbone connectivity — enables converged AV networks carrying lighting control, audio, video, intercom and data over one infrastructure. :contentReference[oaicite:5]{index=5}
• Built-in Web UI for quick configuration; fully manageable network-wide via Araneo — simplifies VLANs, QoS, port-groups, link-aggregation and monitoring. :contentReference[oaicite:7]{index=7}
• Pre-validated for major AV protocols — supports Dante, AES67/RAVENNA, NDI, ST‑2110, sACN, ArtNet, IPMX/MA‑Net — ready for converged lighting, audio, video networks. :contentReference[oaicite:17]{index=17}
• Supports IGMP (v1/v2/v3) + IGMP-snooping, jumbo frames (MTU up to 12000), link-aggregation (MultiLinkX), link redundancy (RLinkX) — ensures stable multicast, high-throughput and redundant backbone for live/tour venues. :contentReference[oaicite:18]{index=18}

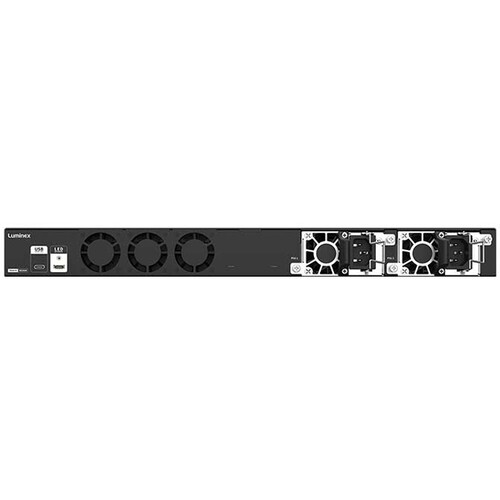

• Compact 1 U all-metal rack-mount chassis with speed-controlled fans — robust, tour-grade build, suitable for studios, theaters, arenas, and frequent setup/tear-down. :contentReference[oaicite:19]{index=19}
• Scalable and future-proof — suitable for large installations such as theaters, concert halls, broadcast studios, cruise ships, sports arenas, convention centers, and more. :contentReference[oaicite:20]{index=20}
