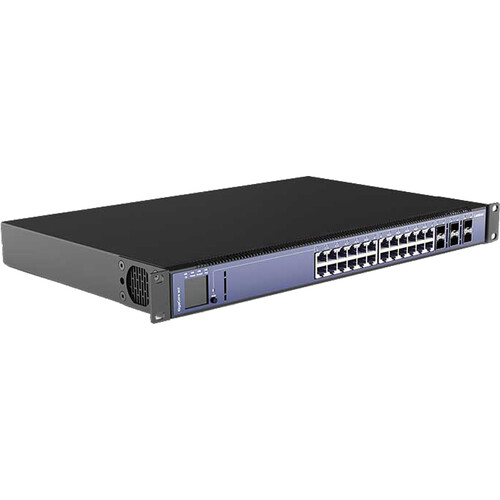

Luminex GigaCore 30i (10Gb) -24x1G - 6x10G(SFP+) - PoE++

Key Features

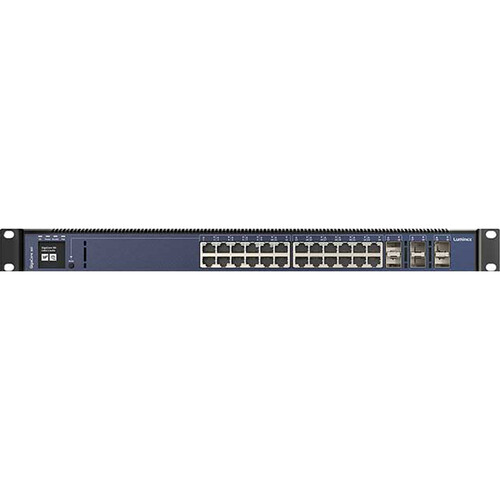

• 24× 1 Gb copper ports + 6× 10 Gb SFP+ fiber ports — Luminex GigaCore 30i (10G, model LU0100077-10P-1S5) provides both broad device connectivity and high-speed backbone links. :contentReference[oaicite:2]{index=2}
• PoE++ on every copper port — powers IP cameras, PoE loudspeakers, network devices directly from the switch; supports 802.3af/at/bt standards. :contentReference[oaicite:3]{index=3}
• Total PoE budget up to 1000 W — capable of powering many devices simultaneously in large AV or networked setups. :contentReference[oaicite:4]{index=4}
• Fully AV-optimized and protocol-ready — preconfigured for AV/media protocols (e.g. Dante, AES67/RAVENNA, ST-2110, NDI, AVB/MILAN, sACN, ArtNet), making it ideal for converged audio, video, lighting and data networks. :contentReference[oaicite:5]{index=5}
• High switching capacity (168 Gb/s), jumbo-frame support (MTU up to 12,000), large MAC table and multicast/IGMP support — handles dense, low-latency, multicast-heavy traffic loads reliably. :contentReference[oaicite:6]{index=6}
• Link-redundancy and link-aggregation ready (RLinkX / MultiLinkX) — ensures network resiliency, redundancy and stability for critical AV installations and tours. :contentReference[oaicite:7]{index=7}
• Built-in Web UI plus network-wide management via vendor software (e.g. Araneo) — simplifies VLAN, QoS, port grouping, monitoring and configuration across the network. :contentReference[oaicite:9]{index=9}

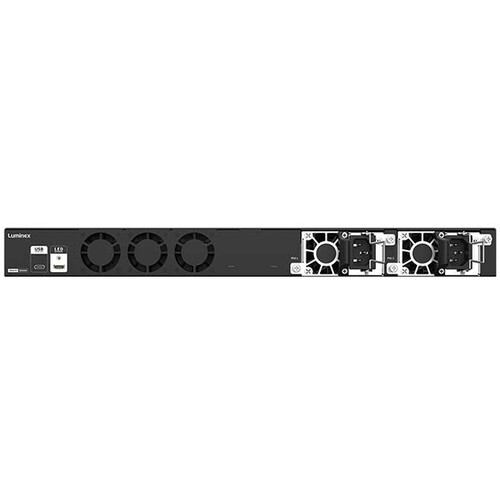

• Tour- and install-ready 1U all-metal rack chassis with intelligent fan control — durable, quiet, and suitable for theaters, studios, concert venues, broadcast rigs or permanent installs. :contentReference[oaicite:10]{index=10}
