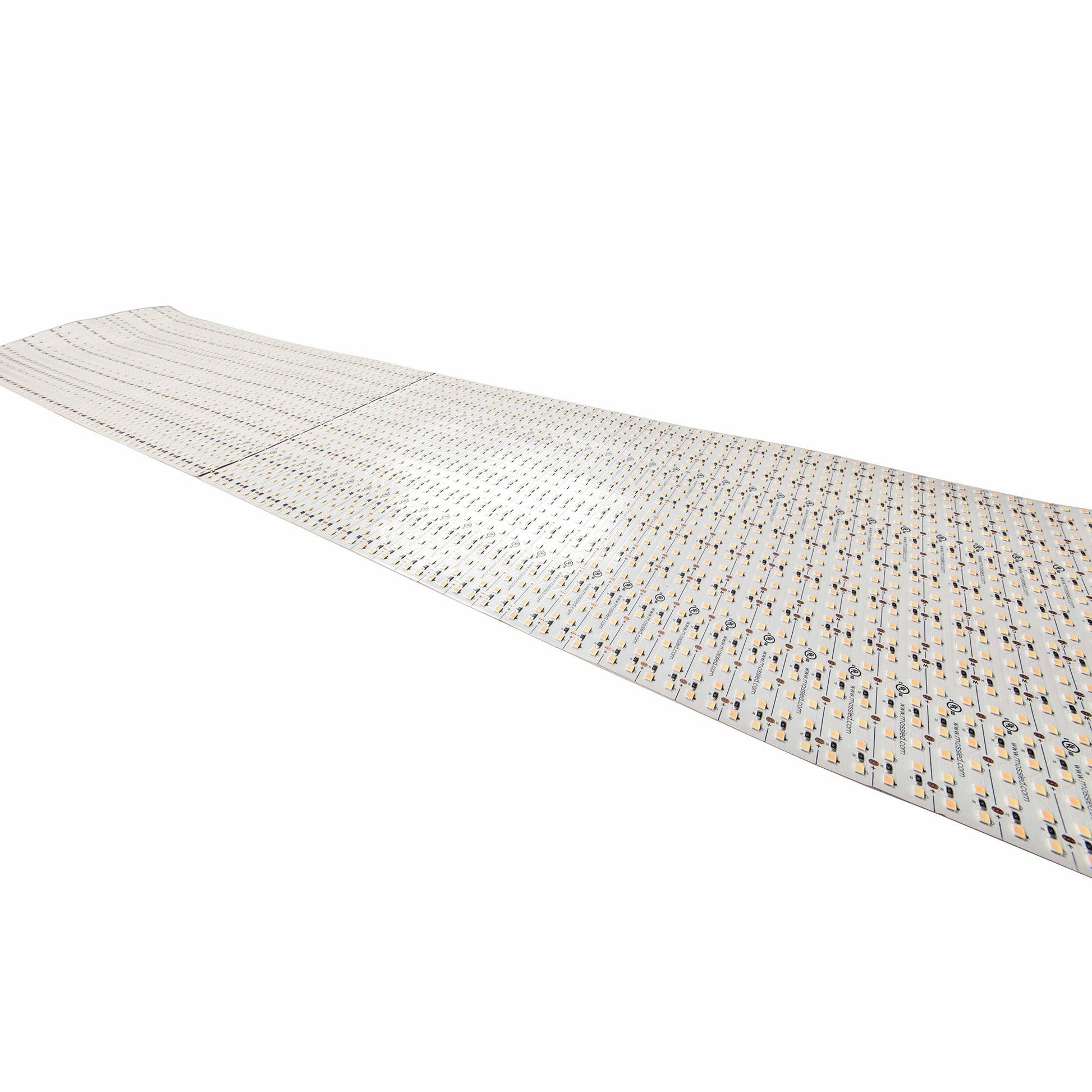

ML12 panel is a Bi-Colour (3000k - 5600k) cuttable, foldable panel and high output LED panel. The panel was designed to fill the inside length of a 4' frame. 5 of these panels across will fill a 4' x 4' frame that is standard use on film & television sets around the world. It's outside dimensions are 45.35" X 8.97" and has an extremely high density quantity of LEDs creating a very soft and uniform output.Customized Lengths Available. Suitable for on-camera use, or anywhere a high-quality LED product is required.3M 200MP double-sided tape on the back which makes installation as easy as peel n stick. Maximum recommended length in order to prevent line-loss is four panels. Controller, Power supply and Extension Cables sold separatelySoldering Guidelines:Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
Product Type
:
ML12 Colour Temperature Adjustable Panel
Product Code
:
24VML12BC1152MMW
24VML12BC500MMW
CRI
:
>=95
Kelvin
:
2700K and 6000K
PCB Color
:
White
Current, Rating
:
4.58 A / panel
2.1 A / panel
Voltage
:
24 VDC
Wattage
:
110 W / panel
50 W / panel
CC / CV
:
Constant Voltage
IP Rating
:
IP43
Lumens @ Full
:
7447
3385
Lumen / Watt
:
67.7
Lifetime*
:
30,000 hours
Cutting Size
:
1CM
LEDs per panel
:
1380 (690 for each colour)
600 (300 for each colour)
Number of Contacts
:
3
LED Type
:
2835
Copper Quantity
:
3 Oz.
Temperature, Operating, Maximum
:
70 C
Temperature, Operating, Minimum
:
-40 C
Agency Ratings
:
UL - E489028, CE, RoHS
PCB Size
:
240MM X 1152MM
240MM X 504MM
Maximum Recommended Length
:
1 Panel
Viewing Angle
:
120 deg.
Adhesion
:
200MP 3M
Wavelength A Red
:
N/A
Wavelength B Green
:
N/A
Wavelength C Blue
:
N/A
Wavelength D & E
:
Full Spectrum 2700K & 6000K Chips
