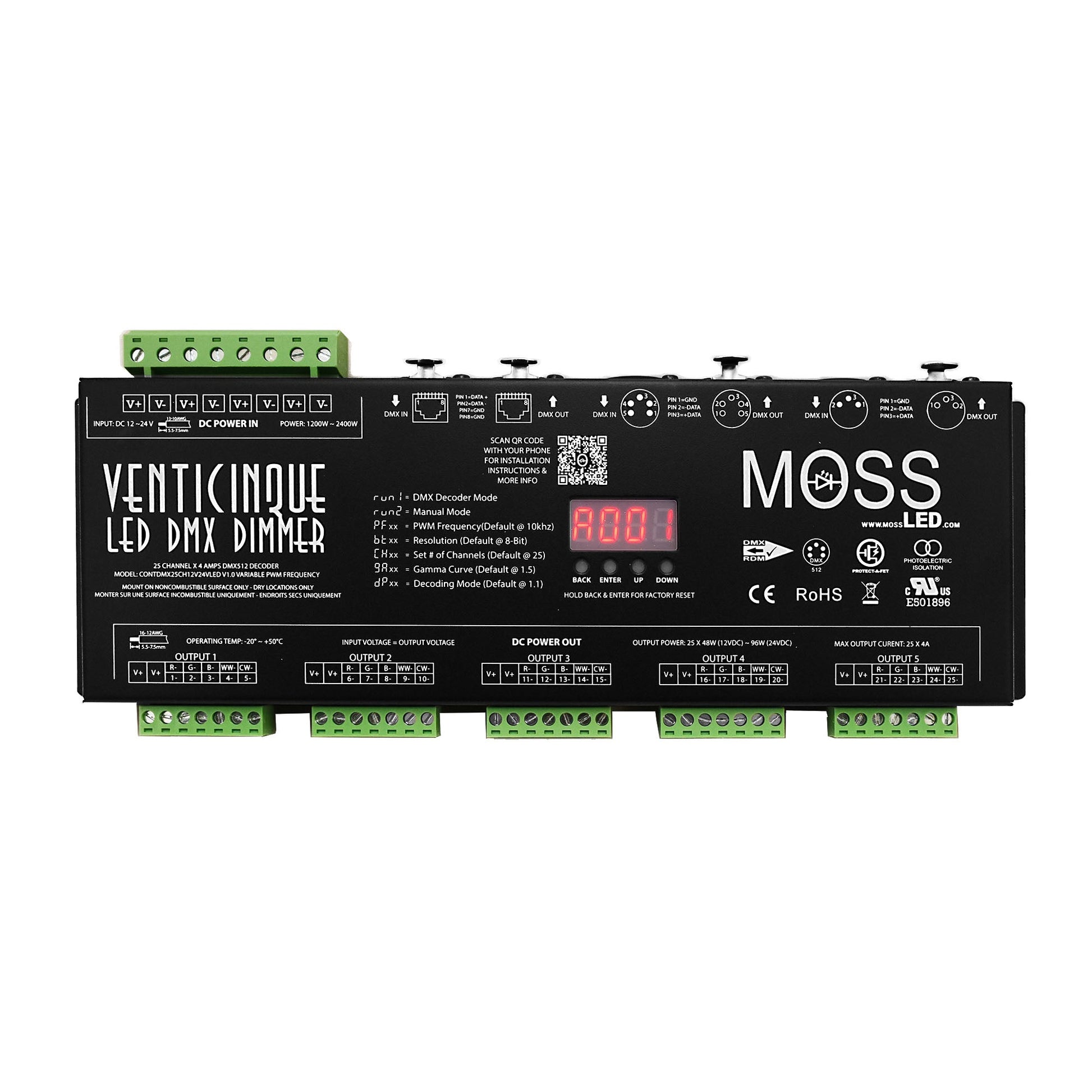

MossLED CONTDMX25CH12V24VLED VentiCinque-LED DMX - 25 Channel Dimmer

SKU: CONTDMX25CH12V24VLED

$278.41 USD $250.57 USD
Shipping calculated at checkout.

Usually Ships in 1-3 days - Free Ground

PAY WITH
View full details
Our most advanced standalone DMX Dimmer Ever. The VentiCinque-LED DMX Dimmer is extremely feature-rich. Built with all the same features as our 5 channel Cinque, our 12 channel Dodici, and our 24 channel VentiQuattro plus more. Featuring a high current rating of 4A per channel, smooth dimming, adjustable PWM frequency, gamma curve, 8-bit and 16-bit options, full manual mode, RDM control, XLR5, XLR3 and RJ45 connections for DMX in and out plus our Protect-A-FET technology. Double common+ for high current output (over 10A per output) High-precision dimming from 0 - 100% with precise low-end dimming Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape Protect-A-FET technology on each output channel allowing for short individual channel circuit protection. Ensuring that if there is an accidental short on one of the outputs, a quick power cycle of the unit will allow for continued use and no internal damage will result.  Protect-A-FET able to protect when powering loads with AWG18 or larger up to 10 meters away from the dimmer @ full power. Default PWM frequency set to 10KHZ allowing for out-of-the-box flicker-free performance. For non-standard camera settings, PWM frequency can be adjusted between 500hz and 35khz.    Durable metal, rugged housing Isolated DMX-512/1990 decoding via RJ45 / 5-Pin XLR / 3-Pin XLR 8-bit or16-bit DMX control 8-Position High-Current Input Terminal Block 100A Capacity Gamma curve adjustment Decoding mode allows for grouping of channels as well as master and strobe effects Easy-to-read display provides easy functionality for DMX addressing as well as full manual mode & test control options. RDM control allows for remote addressing, PWM adjustment, and gamma curve adjustment. *Please Note - Due to Improved Hardware Design Changes, the VentiCinque Dimming Curve Will Not Match the Dimming Curve of the Cinque, Dodici, or Ventiquattro controllers in the 0 - 10% (low-end dimming) range. 10% - 100% will match*
Our most advanced standalone DMX Dimmer Ever. The VentiCinque-LED DMX Dimmer is extremely feature-rich. Built with all the same features as our 5 channel Cinque, our 12 channel Dodici, and our 24 channel VentiQuattro plus more. Featuring a high current rating of 4A per channel, smooth dimming, adjustable PWM frequency, gamma curve, 8-bit and 16-bit options, full manual mode, RDM control, XLR5, XLR3 and RJ45 connections for DMX in and out plus our Protect-A-FET technology. Double common+ for high current output (over 10A per output) High-precision dimming from 0 - 100% with precise low-end dimming Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape Protect-A-FET technology on each output channel allowing for short individual channel circuit protection. Ensuring that if there is an accidental short on one of the outputs, a quick power cycle of the unit will allow for continued use and no internal damage will result.  Protect-A-FET able to protect when powering loads with AWG18 or larger up to 10 meters away from the dimmer @ full power. Default PWM frequency set to 10KHZ allowing for out-of-the-box flicker-free performance. For non-standard camera settings, PWM frequency can be adjusted between 500hz and 35khz.    Durable metal, rugged housing Isolated DMX-512/1990 decoding via RJ45 / 5-Pin XLR / 3-Pin XLR 8-bit or16-bit DMX control 8-Position High-Current Input Terminal Block 100A Capacity Gamma curve adjustment Decoding mode allows for grouping of channels as well as master and strobe effects Easy-to-read display provides easy functionality for DMX addressing as well as full manual mode & test control options. RDM control allows for remote addressing, PWM adjustment, and gamma curve adjustment. *Please Note - Due to Improved Hardware Design Changes, the VentiCinque Dimming Curve Will Not Match the Dimming Curve of the Cinque, Dodici, or Ventiquattro controllers in the 0 - 10% (low-end dimming) range. 10% - 100% will match*
Our most advanced standalone DMX Dimmer Ever. The VentiCinque-LED DMX Dimmer is extremely feature-rich. Built with all the same features as our 5 channel Cinque, our 12 channel Dodici, and our 24 channel VentiQuattro plus more. Featuring a high current rating of 4A per channel, smooth dimming, adjustable PWM frequency, gamma curve, 8-bit and 16-bit options, full manual mode, RDM control, XLR5, XLR3 and RJ45 connections for DMX in and out plus our Protect-A-FET technology. Double common+ for high current output (over 10A per output) High-precision dimming from 0 - 100% with precise low-end dimming Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape Protect-A-FET technology on each output channel allowing for short individual channel circuit protection. Ensuring that if there is an accidental short on one of the outputs, a quick power cycle of the unit will allow for continued use and no internal damage will result.  Protect-A-FET able to protect when powering loads with AWG18 or larger up to 10 meters away from the dimmer @ full power. Default PWM frequency set to 10KHZ allowing for out-of-the-box flicker-free performance. For non-standard camera settings, PWM frequency can be adjusted between 500hz and 35khz.    Durable metal, rugged housing Isolated DMX-512/1990 decoding via RJ45 / 5-Pin XLR / 3-Pin XLR 8-bit or16-bit DMX control 8-Position High-Current Input Terminal Block 100A Capacity Gamma curve adjustment Decoding mode allows for grouping of channels as well as master and strobe effects Easy-to-read display provides easy functionality for DMX addressing as well as full manual mode & test control options. RDM control allows for remote addressing, PWM adjustment, and gamma curve adjustment. *Please Note - Due to Improved Hardware Design Changes, the VentiCinque Dimming Curve Will Not Match the Dimming Curve of the Cinque, Dodici, or Ventiquattro controllers in the 0 - 10% (low-end dimming) range. 10% - 100% will match*
