MossLED VENTIDRIVE24 VentiDrive - 24 Channel Dimmer

SKU: VENTIDRIVE24

$2,614.94 USD $2,353.45 USD
Shipping calculated at checkout.

Usually Ships in 1-3 days - Free Ground

PAY WITH
View full details

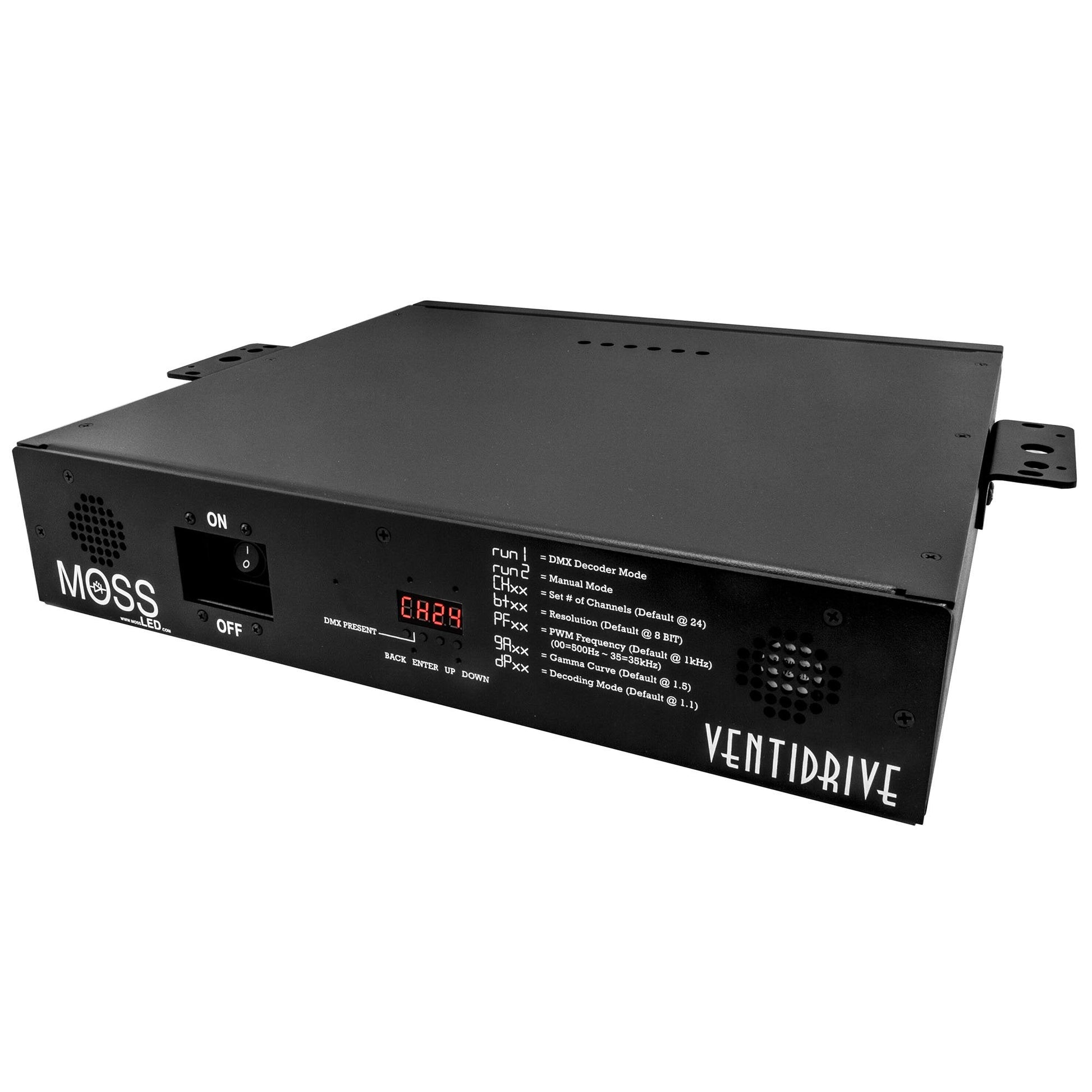

The VentiDrive is a 24 channel LED dimmer with 1200 watts of output capacity @ 24VDC.  The design allows for fast plug’n’play connectivity and allows you to be up and running in no time. It features precision dimming from 0 - 100%, 8-bit or 16-bit modes, PWM frequency adjustment from 500Hz to 35kHz, full manual control, and dimming curve adjustments.  Each channel has a maximum power output of 4A (96 watts @ 24VDC or 48 Watts @ 12VDC up to 960W total output)  The VentiDrive is available in either 12VDC or 24VDC models.  Its rugged chassis is capable of being mounted via clamps, in a rack, stacked on top of each-other, or screwed into a wall and allows it to be placed in virtually any location.  Industry-standard 5-position terminal plugs allow for universal connectivity to as many LED products as possible.  TRUE1 connectors & auto-switching internal power supplies allow for power input from 90 - 250VAC.  Whisper-quiet 16dB fans keep the unit cool in any location and to top it all off the VentiDrive can be remotely addressed via RDM.  Delivering 50A @ 24VDC or 80A @ 12VDC this is the most powerful LED dimmer with on-board power supply on the market!  Small 2U design (Only 3.5") Powerful 1200 Watt (50 AMP) at 24V output across 24 channels of dimming 6 outputs of 4 channels each at 200 Watt OR combine outputs infinitely to create one large 1200 Watt Output Frequency mode selection from 500Hz to 35kHz for Flicker-Free operation at almost every camera setting. Only 2 ultra-quiet 16dB fans for on-set use Terminal Block output connectors for ease-of-use and on-site wiring 24 individually fused channels for maximum protection New rugged thicker aluminum housing for long-term durable use for all industries. New mounting brackets for easy hanging, surface mount, and safety chain connections. Rear lip protection over output connectors designed to protect all rear components Recessed front power switch allow for protection of components and accidental activation of functions New Neutrik True1 power input and output locking connectors allow for power breaking under load Rubber feet mounted to the bottom allow for non-skid performance and protection of the chassis itself.           VentiQuattro dimming engine inside. Professional DMX controlled multi-channel LED controller with built-in power supply.Approved for use anywhere in the world! Contact us for pricing details for large quantity orders or for rental options.
The VentiDrive is a 24 channel LED dimmer with 1200 watts of output capacity @ 24VDC.  The design allows for fast plug’n’play connectivity and allows you to be up and running in no time. It features precision dimming from 0 - 100%, 8-bit or 16-bit modes, PWM frequency adjustment from 500Hz to 35kHz, full manual control, and dimming curve adjustments.  Each channel has a maximum power output of 4A (96 watts @ 24VDC or 48 Watts @ 12VDC up to 960W total output)  The VentiDrive is available in either 12VDC or 24VDC models.  Its rugged chassis is capable of being mounted via clamps, in a rack, stacked on top of each-other, or screwed into a wall and allows it to be placed in virtually any location.  Industry-standard 5-position terminal plugs allow for universal connectivity to as many LED products as possible.  TRUE1 connectors & auto-switching internal power supplies allow for power input from 90 - 250VAC.  Whisper-quiet 16dB fans keep the unit cool in any location and to top it all off the VentiDrive can be remotely addressed via RDM.  Delivering 50A @ 24VDC or 80A @ 12VDC this is the most powerful LED dimmer with on-board power supply on the market!  Small 2U design (Only 3.5") Powerful 1200 Watt (50 AMP) at 24V output across 24 channels of dimming 6 outputs of 4 channels each at 200 Watt OR combine outputs infinitely to create one large 1200 Watt Output Frequency mode selection from 500Hz to 35kHz for Flicker-Free operation at almost every camera setting. Only 2 ultra-quiet 16dB fans for on-set use Terminal Block output connectors for ease-of-use and on-site wiring 24 individually fused channels for maximum protection New rugged thicker aluminum housing for long-term durable use for all industries. New mounting brackets for easy hanging, surface mount, and safety chain connections. Rear lip protection over output connectors designed to protect all rear components Recessed front power switch allow for protection of components and accidental activation of functions New Neutrik True1 power input and output locking connectors allow for power breaking under load Rubber feet mounted to the bottom allow for non-skid performance and protection of the chassis itself.           VentiQuattro dimming engine inside. Professional DMX controlled multi-channel LED controller with built-in power supply.Approved for use anywhere in the world! Contact us for pricing details for large quantity orders or for rental options.
The VentiDrive is a 24 channel LED dimmer with 1200 watts of output capacity @ 24VDC.  The design allows for fast plug’n’play connectivity and allows you to be up and running in no time. It features precision dimming from 0 - 100%, 8-bit or 16-bit modes, PWM frequency adjustment from 500Hz to 35kHz, full manual control, and dimming curve adjustments.  Each channel has a maximum power output of 4A (96 watts @ 24VDC or 48 Watts @ 12VDC up to 960W total output)  The VentiDrive is available in either 12VDC or 24VDC models.  Its rugged chassis is capable of being mounted via clamps, in a rack, stacked on top of each-other, or screwed into a wall and allows it to be placed in virtually any location.  Industry-standard 5-position terminal plugs allow for universal connectivity to as many LED products as possible.  TRUE1 connectors & auto-switching internal power supplies allow for power input from 90 - 250VAC.  Whisper-quiet 16dB fans keep the unit cool in any location and to top it all off the VentiDrive can be remotely addressed via RDM.  Delivering 50A @ 24VDC or 80A @ 12VDC this is the most powerful LED dimmer with on-board power supply on the market!  Small 2U design (Only 3.5") Powerful 1200 Watt (50 AMP) at 24V output across 24 channels of dimming 6 outputs of 4 channels each at 200 Watt OR combine outputs infinitely to create one large 1200 Watt Output Frequency mode selection from 500Hz to 35kHz for Flicker-Free operation at almost every camera setting. Only 2 ultra-quiet 16dB fans for on-set use Terminal Block output connectors for ease-of-use and on-site wiring 24 individually fused channels for maximum protection New rugged thicker aluminum housing for long-term durable use for all industries. New mounting brackets for easy hanging, surface mount, and safety chain connections. Rear lip protection over output connectors designed to protect all rear components Recessed front power switch allow for protection of components and accidental activation of functions New Neutrik True1 power input and output locking connectors allow for power breaking under load Rubber feet mounted to the bottom allow for non-skid performance and protection of the chassis itself.           VentiQuattro dimming engine inside. Professional DMX controlled multi-channel LED controller with built-in power supply.Approved for use anywhere in the world! Contact us for pricing details for large quantity orders or for rental options.
